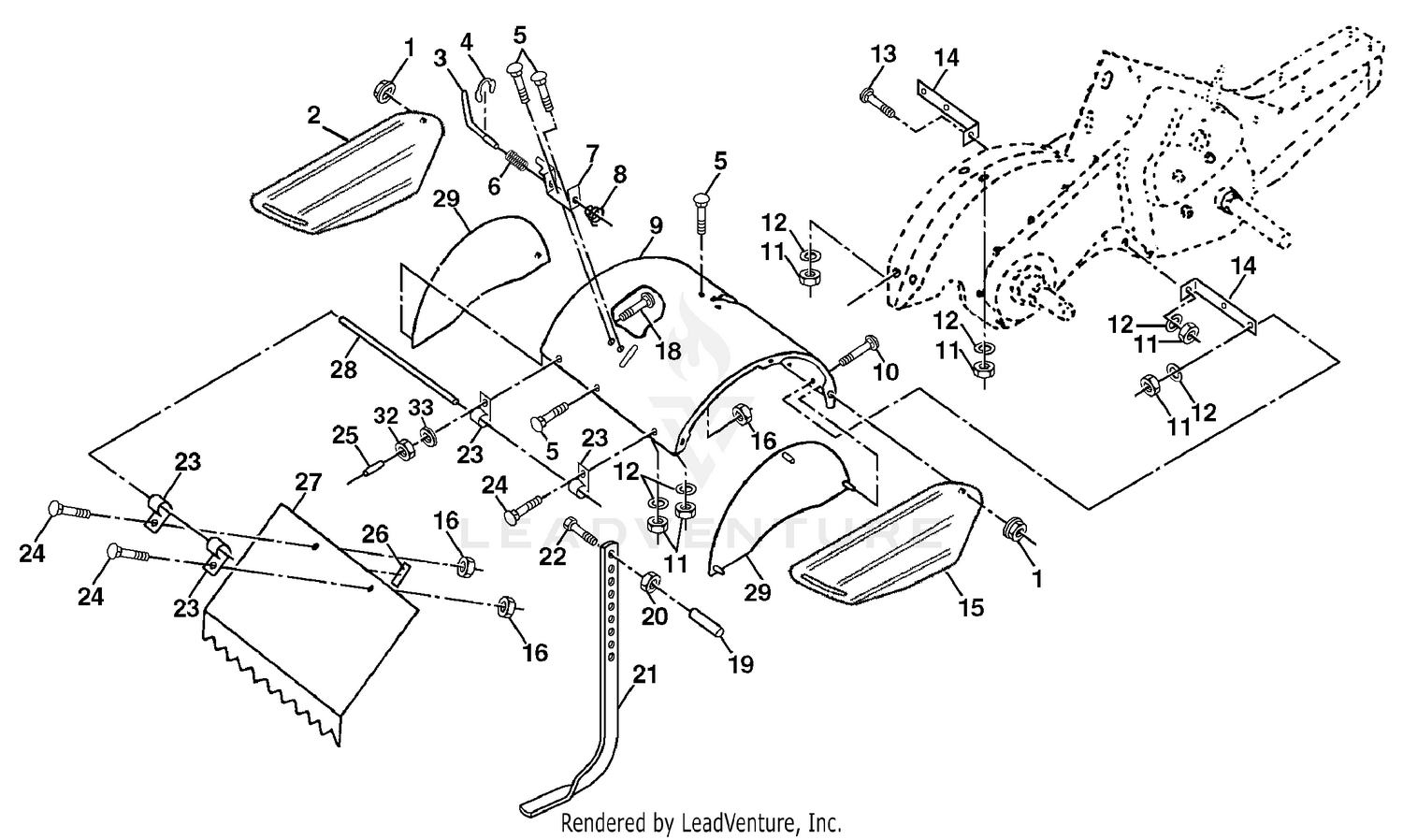

| Ref | Part Number | Description |
|---|
| 1 |
32104-82 |
SCREW-HHF Price: $0.95 |
| 1 |
73900500 |
Nut, Flange 5/16-18 Price: Call Us |
| 2 |
161415 |
Shield, Side, Outer L. H. Price: Call Us |
| 2 |
2412-133 |
CLAMP-R Price: $3.19 |
| 3 |
74-0720 |
TUBE-MANUAL Price: $22.99 |
| 3 |
8393J |
Pin, Stake, Depth Price: Call Us |
| 4 |
12000036 |
Ring, Klip Price: Call Us |
| 4 |
76-9460-03 |
DISCONTINUED Price: Call Us |
| 5 |
72140506 |
Bolt, Carriage 5/16-18 x 3/4 Gr 5 Price: Call Us |
| 5 |
77-3780 |
PIN ASM-LYNCH Price: $15.06 |
| 6 |
3290-282 |
RIVET-BLIND Price: $0.28 |
| 6 |
8394J |
Spring Price: Call Us |
| 7 |
3256-49 |
WASHER-PLAIN Price: $0.33 |
| 7 |
8392J |
Bracket, Latch Price: Call Us |
| 8 |
109230X |
Spring, Depth Stake Price: Call Us |
| 8 |
76-9930 |
FOAM-CENTER Price: $7.40 |
| 9 |
102326X505 |
Shield, Tine Price: Call Us |
| 9 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 10 |
72140508 |
Bolt, Carriage 5/16-18 x 1 Price: Call Us |
| 10 |
86-2860-03 |
COVER-BELT, UPPER Price: $16.75 |
| 11 |
73220500 |
Nut, Hex 5/16-18 Price: Call Us |
| 11 |
82-4900 |
FOAM-SEAT, REAR Price: $71.75 |
| 12 |
10040500 |
Washer, Lock 5/16 Price: Call Us |
| 12 |
76-9440 |
ROD-PROP, SEAT Price: $65.18 |
| 13 |
72110510 |
Bolt, Carriage 5/16-18 x 1-1/4 Price: Call Us |
| 14 |
124343X |
Bracket, Shield Tine Price: Call Us |
| 15 |
161414 |
Shield, Side, Outer R.H. Price: Call Us |
| 16 |
1-806003 |
PIN-COTTER This part replaces 3290-307. Price: $1.39 |
| 16 |
73900400 |
Nut, Hex Flange 1/4-20 UNC Price: Call Us |
| 17 |
240-5 |
GROMMET Price: $13.66 |
| 18 |
321-5 |
SCREW-HH Price: $0.22 |
| 18 |
72040410 |
Bolt, Carriage 1/4-20 x 1-1/4 Gr. 5 Price: Call Us |
| 19 |
102701X |
Grip Price: Call Us |
| 19 |
32144-11 |
SCREW-THD ROLL, HWH Price: $6.99 |
| 20 |
32128-33 |
NUT-HF Price: $0.25 |
| 20 |
73220600 |
Nut, Hex 3/8-16 Price: Call Us |
| 21 |
102156X |
Stake, Depth Price: Call Us |
| 21 |
70-1480 |
RELAY Price: $105.19 |
| 22 |
2412-74 |
R-CLAMP Price: $2.37 |
| 22 |
74930632 |
Bolt, Hex 3/8-16 x 2 Price: Call Us |
| 23 |
37-2690 |
CAPACITOR Price: $155.98 |
| 23 |
4440J |
Hinge Price: Call Us |
| 24 |
72140404 |
Bolt, Carriage 1/4-20 x 1/2 Gr. 5 Price: Call Us |
| 25 |
237-136 |
GROMMET Price: $3.52 |
| 25 |
6712 |
J Cap, Vinyl Price: Call Us 6712 J |
| 26 |
109227X |
Pad, Idler Price: Call Us |
| 26 |
76-9480 |
SLEEVE-PIVOT, SEAT Price: $4.64 |
| 27 |
102695X505 |
Shield, Leveling Price: Call Us |
| 28 |
120588X |
Pin, Hinge Price: Call Us |
| 28 |
325-9 |
SCREW-HH Price: $1.87 |
| 29 |
104085X505 |
Shield, Side Price: Call Us |
| 29 |
116749 |
HORN This part replaces 48-4590. Price: $130.99 |
| 30 |
74-8910 |
DISCONTINUED Price: Call Us |
| 31 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 32 |
322-2 |
SCREW-HH Price: $0.69 |
| 32 |
73220400 |
Nut Fin Hex 1/4-20 UNC Price: Call Us |
