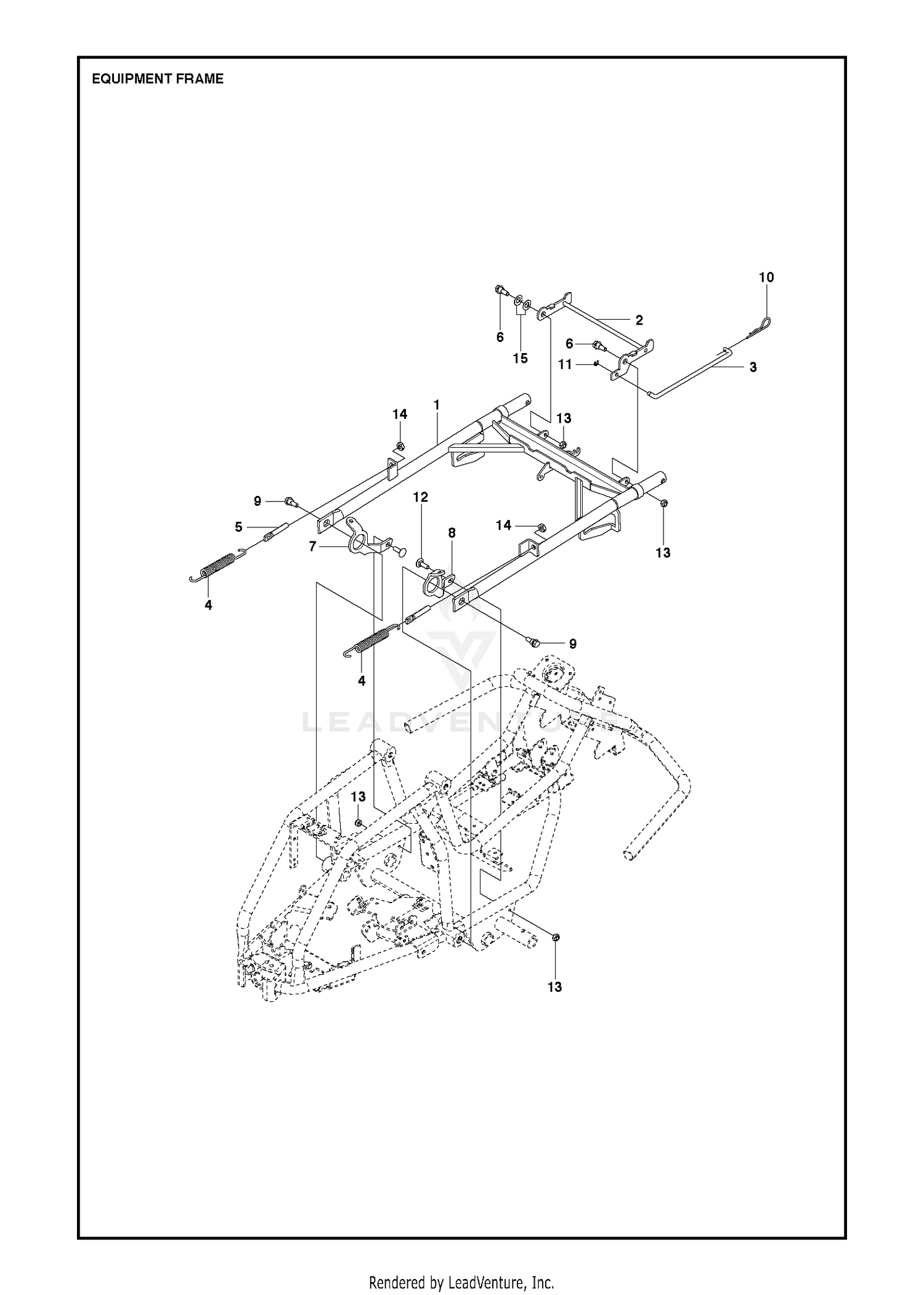

FRAME
Parts (33)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 108-3198-03 | HANGER ASM Price: $536.14 |
| 1 | 580379401 | EQUIPMENT FRAME ASSY Price: $84.99 |
| 2 | 3256-26 | WASHER-FLAT Price: $0.39 |
| 2 | 580902401 | NEEDS DESCRIPTION Price: Call Us |
| 3 | 580902901 | ROD Price: $11.99 |
| 3 | 80-2050 | BOLT-SHOULDER Price: $29.15 |
| 4 | 3256-25 | WASHER-FLAT Price: $0.25 |
| 4 | 580472301 | SPRING Price: $11.99 |
| 5 | 3296-48 | NUT-LOCK, NI Price: $0.37 |
| 5 | 580480601 | SCREW Price: $3.99 |
| 6 | 108-9429-03 | PIVOT ASM Price: $81.48 |
| 6 | 506895801 | BOLT Price: $6.99 |
| 7 | 580472101 | BRACKET Price: $6.99 |
| 9 | 506597401 | BOLT Price: $5.99 |
| 10 | 721680251 | R-CLIP Price: $4.99 |
| 11 | 3256-3 | WASHER-FLAT Price: $0.49 |
| 11 | 735311020 | C-WASHER Price: $2.99 |
| 12 | 323-47 | SCREW-HH Price: $1.22 |
| 12 | 535423801 | BOLT Price: $4.99 |
| 13 | 104-8301 | NUT-HF, NI Price: $1.09 |
| 13 | 732211801 | LOCKNUT M8 Price: $3.99 |
| 14 | 283-83 | PIN-CLEVIS Price: $9.52 |
| 14 | 731232001 | Nut Price: $3.99 |
| 15 | 3272-12 | PIN-COTTER Price: $0.25 |
| 15 | 506839401 | SPRINGWASHER Price: $3.99 |
| 17 | 84-2452 | CHAIN-14 LINK, STRAIGHT Price: $13.35 |
| 20 | 112-1428-03 | PIVOT ASM Price: $70.30 |
| 21 | 98-8895 | SPACER Price: $10.80 |
| 22 | 80-2040 | HOOK Price: $17.21 |
| 36 | 120-9738 | SCREW-HH This part replaces 322-11. Price: $0.84 |
| 37 | 3256-82 | WASHER-FLAT Price: $0.47 |
| 38 | 117-4687 | WASHER-CUP Price: $1.42 |
| 39 | 104-7201 | NUT-HF Price: $0.69 |
