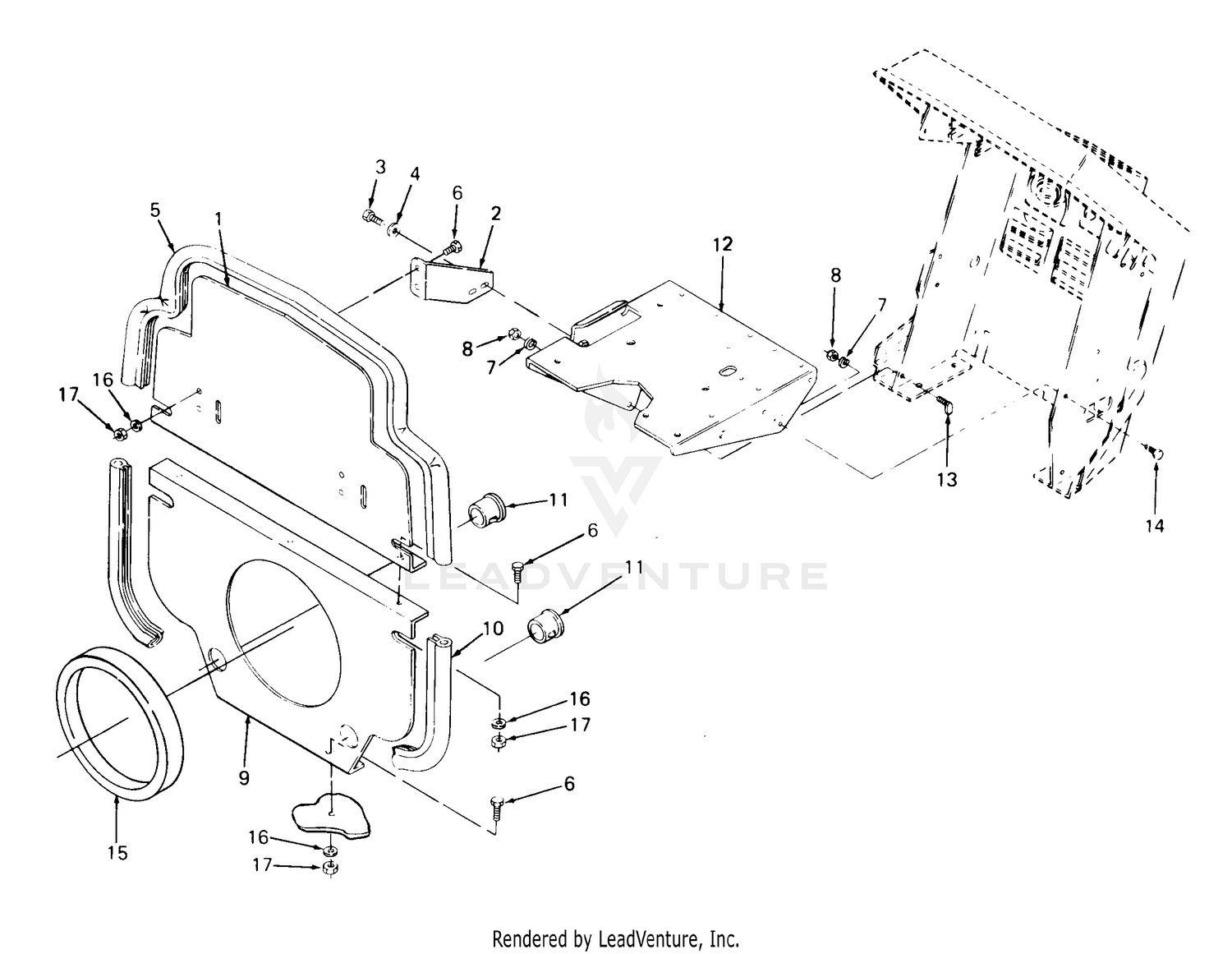

Battery Tray And Bulkhead

Battery Tray And Bulkhead

Parts (26)

RefPart NumberDescription
1 703-2144 BULKHEAD, UPPER Not Available Price:
2 703-2142 BULKHEAD BRACKET Not Available Price:
3 710-3039 SCREW 5/16-18 x .50 GR5 Not Available Price:
4 736-0242 Washer, Bell, .345 X .88 X .060 Thk Price: $3.75
6 710-3013 Screw, Hex Cap, 1/4-20 X.50 Lg GR5.. Price: $4.02
7 936-0329 L-Wash. 1/4" I.D. This part replaces 736-0329. Price: $3.90
8 712-3006 HEX NUT Price: $4.05
9 703-2143 BULKHEAD-LOWER Not Available Price:
11 723-3042 SNAP BUSHING 7/8 Not Available Price:
12 703-1827 TRAY ASSEMBLY- Not Available Price:
13 710-3012 BOLT-J TYPE 1/4-20 Not Available Price:
14 710-0751 SCREW 1/4-20 x .620 GR5 Price: $3.63
15 723-3062 SEALING RING Not Available Price:
16 736-0270 SPRING WASHER BELL Price: $3.63
304 807898 Housing-Blower Price: Call Us
305 805406 Screw Price: Call Us
307 805025 Screw Price: Call Us
308 808309 Cover-Air Guide Price: Call Us
308A 808098 Cover-Air Guide Price: Call Us
353 806101 Washer-Lock Price: Call Us
423 805260 Screw Price: Call Us
573 807663 Plate-Back Price: Call Us
657 805009 Screw Price: Call Us
727 805505 Shield-Starter Price: Call Us
866 805738 Cover-Air Guide Price: Call Us
879 805841 Cover-Carburetor Price: Call Us
