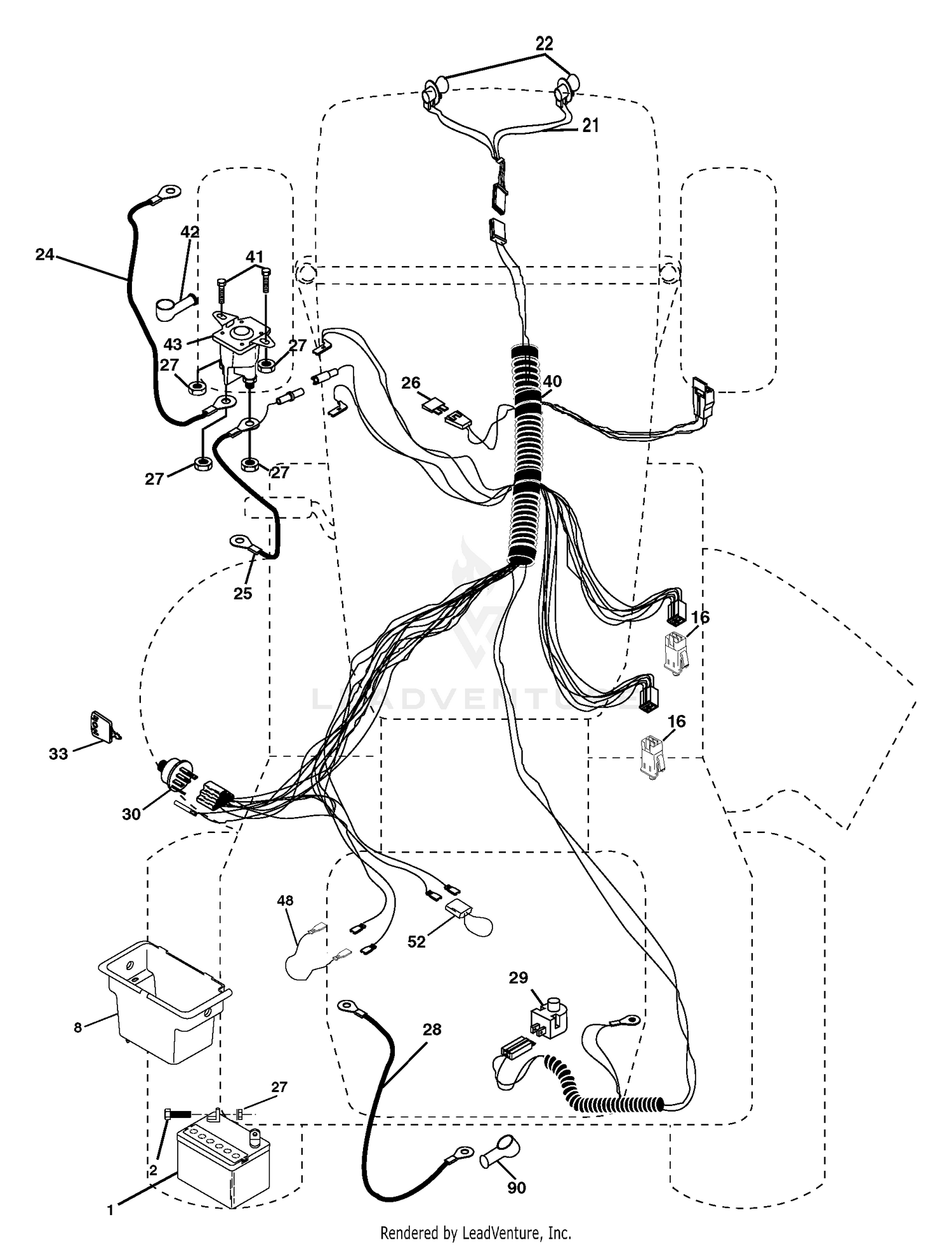

| Ref | Part Number | Description |
|---|
| 1 |
163465 |
Battery Price: Call Us |
| 1 |
62-7400 |
DECAL Price: $24.54 |
| 2 |
46-6810 |
SCREW AND WASHER ASM Price: $3.49 |
| 2 |
74760412 |
Bolt Hex Hd 1/4-20 Unc x 3/4 Price: Call Us |
| 3 |
76-9700-01 |
COVER-TOWER Price: $240.24 |
| 4 |
84-1080 |
FRAME WA (TRK) Price: $5,191.33 |
| 4 |
98-7826 |
Frame (only on:30455) Price: Call Us |
| 5 |
93-6697 |
DECAL-LUBE This part replaces 70-2560. Price: $11.38 |
| 6 |
68-7573 |
STRIP-SEALING Price: $8.09 |
| 7 |
94-5601-03 |
SUPPORT-TANK, LOWER Price: $106.64 |
| 8 |
176689 |
Box Battery Fender Price: Call Us |
| 8 |
76-6360 |
DISCONTINUED Price: Call Us |
| 9 |
93-7236-03 |
SUPPORT-CLEANER, AIR ASM Price: $284.90 |
| 10 |
32144-11 |
SCREW-THD ROLL, HWH Price: $6.99 |
| 11 |
3256-78 |
WASHER-FLAT Price: $1.21 |
| 12 |
93-9426 |
DECAL-DANGER Price: $7.18 |
| 14 |
65-5100 |
HANDLE-DOOR Price: $9.05 |
| 15 |
46-8091 |
SCREW-HWH Price: $3.59 |
| 16 |
176138 |
Switch, Interlock Price: Call Us |
| 16 |
83-1470 |
WASHER-NEOPRENE Price: $1.97 |
| 17 |
323-6 |
SCREW-HH Price: $0.66 |
| 18 |
93-7798 |
HOOD ASM Price: $3,496.28 |
| 19 |
3290-467 |
PIN-HAIR Price: $0.27 |
| 20 |
94-5613 |
STOP-RUBBER Price: $8.22 |
| 21 |
175688 |
Harness Asm Light W/4152j Price: Call Us |
| 21 |
84-1490-01 |
LATCH-LOCKUP Price: $62.64 |
| 22 |
325-5 |
SCREW-HH Price: $1.20 |
| 22 |
4152J |
Bulb Light #1156 Price: Call Us |
| 23 |
48-7081 |
GRIP-PLASTIC Price: $7.54 |
| 24 |
4799J |
Cable Battery 6 Ga 11" red Price: Call Us |
| 25 |
146147 |
Cable Battery 6 Ga w/16 wire red Price: Call Us |
| 25 |
32151-72 |
RING-RETAINING Price: $1.59 |
| 26 |
175158 |
Fuse 20 AMP Price: Call Us |
| 27 |
32121-11 |
PIN-ROLL Price: $0.47 |
| 27 |
73510400 |
Nut, Keps Hex 1/4-20 Unc Price: Call Us |
| 28 |
3290-359 |
SCREW-HWH Price: $6.23 |
| 28 |
4207J |
Cable Ground 6 Ga 12" black Price: Call Us |
| 29 |
121305X |
Switch Plunger Nc Gray Price: Call Us |
| 29 |
94-5626 |
FLEXIBLE DRAW LATCH ASM Price: $42.59 |
| 30 |
175566 |
Switch Ign Price: Call Us |
| 30 |
3290-357 |
NUT-HHF, WHIZ Price: $0.61 |
| 31 |
3290-483 |
WASHER-CONICAL Price: $7.61 |
| 32 |
3296-25 |
NUT-LOCK, NI Price: $1.34 |
| 33 |
140401 |
Key Ign. Price: Call Us |
| 33 |
80-7730 |
SPACER Price: $1.97 |
| 34 |
76-6361 |
STRIP-SEALING Price: $25.24 |
| 35 |
3256-3 |
WASHER-FLAT Price: $0.49 |
| 36 |
3234-12 |
SCREW-HHF Price: $0.61 |
| 37 |
94-5609-03 |
COVER-HOOD, LOWER Price: $403.69 |
| 38 |
323-4 |
SCREW-HH Price: $1.02 |
| 39 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 40 |
179720 |
Harness Ign Price: Call Us |
| 40 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 41 |
71110408 |
Bolt Blk. Fin Hex 1/4-20 Unc x 1/2 Price: Call Us |
| 41 |
76-9300-01 |
FENDER-LH Price: $724.69 |
| 42 |
131563 |
Cover Terminal Red Price: Call Us |
| 42 |
76-9340-01 |
FENDER-RH Price: $760.39 |
| 43 |
178861 |
Solenoid Price: Call Us |
| 43 |
88-1310 |
STRIP-FOAM, COVER Price: $24.15 |
| 44 |
74-4090 |
TREAD-REST, FOOT Price: $46.79 |
| 45 |
3231-22 |
SCREW-CARR Price: $0.72 |
| 46 |
3250-36 |
SCREW-PPH Price: $2.41 |
| 47 |
100-2596-03 |
COVER-SEAT, FRONT Price: $38.09 |
| 48 |
140844 |
Adapter Ammeter Price: Call Us |
| 52 |
141940 |
Protection Wire Loop Price: Call Us |
