| Ref | Part Number | Description |
|---|
| 1 |
05199551 |
BRKT, DECK LIFT FOOT PEDDLE Price: $110.45 |
| 2 |
30196251 |

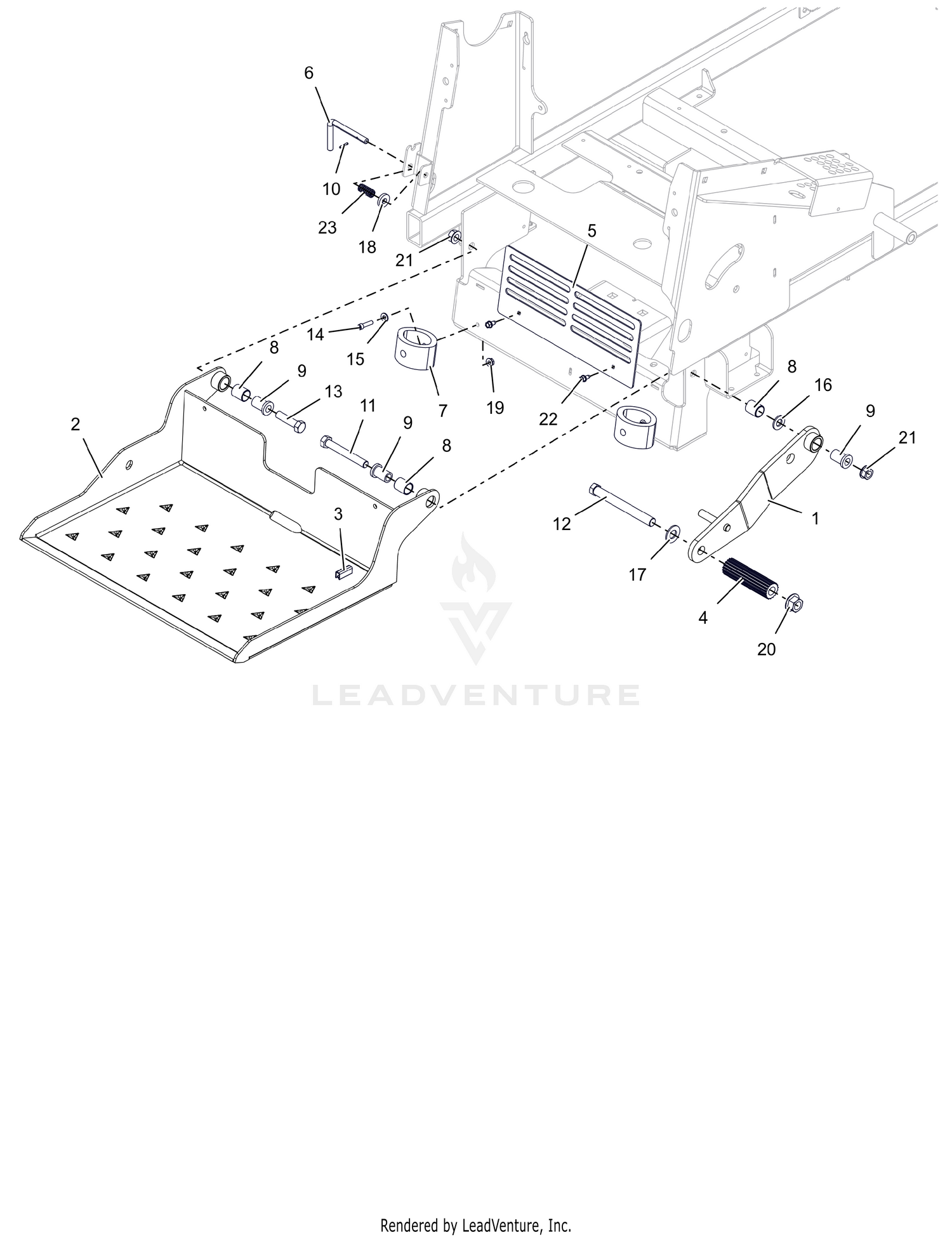

WLDMT, OPERATOR PLATFORM (BLACK) Price: Call Us |
| 3 |
00918200 |
STRIP, COWL Price: $5.45 |
| 4 |
05120951 |
ROD, FOOT PEDAL (BLACK) Price: $20.45 |
| 5 |
05254253 |
GUARD, FOOT (RED) Price: $40.95 |
| 6 |
05254400 |
PIN, PLATFORM LOCK Price: $31.45 |
| 7 |
05255200 |
BUMPER, PLATFORM Price: $30.45 |
| 8 |
05435900 |
BRG, .750 X .875 X 1.000 Price: $5.95 |
| 9 |
05527200 |
BSHG-FLG .515X.746X1.290X1.000 Price: $27.45 |
| 10 |
05803400 |
PIN-ROLL .125X.75 Price: $0.45 |
| 11 |
05901703 |
BLT,HEX .50-13X3.75 G5 ZCC Price: $5.45 |
| 12 |
05901730 |
BLT, HEX .62-11X5.50 G5 FBP Price: $6.45 |
| 13 |
05901929 |
BLT, HEX .50-13X2.00 G5 ZCC Price: $2.95 |
| 14 |
05902033 |
SCR, SKH .25-20X1.00 Price: $1.45 |
| 15 |
06401001 |
WSHR,FLT .281X.625X.065 ZCC Price: $0.45 |
| 16 |
06401015 |
WSHR,FLT .531X1.062X.095 ZCC Price: $0.95 |
| 17 |
06401039 |
WSHRFLT 5/8SAE CARBHARD FBP Price: $3.45 |
| 18 |
06401108 |
WSHR, FLT .406X1.00X.188 ZCC Price: $2.45 |
| 19 |
06500821 |
NUT-LK-CTR-FLG .25-20 ZC120 Price: $0.45 |
| 20 |
06500835 |
NUT,FLG-TOP LK .625-11 FBP Price: $6.45 |
| 21 |
06500902 |
NUT-LK-CTR-FLG .500-13 GG ZCC Price: $0.95 |
| 22 |
07400122 |
SCR-TAP .25-20X.50 HWH ZCC Price: $0.45 |
