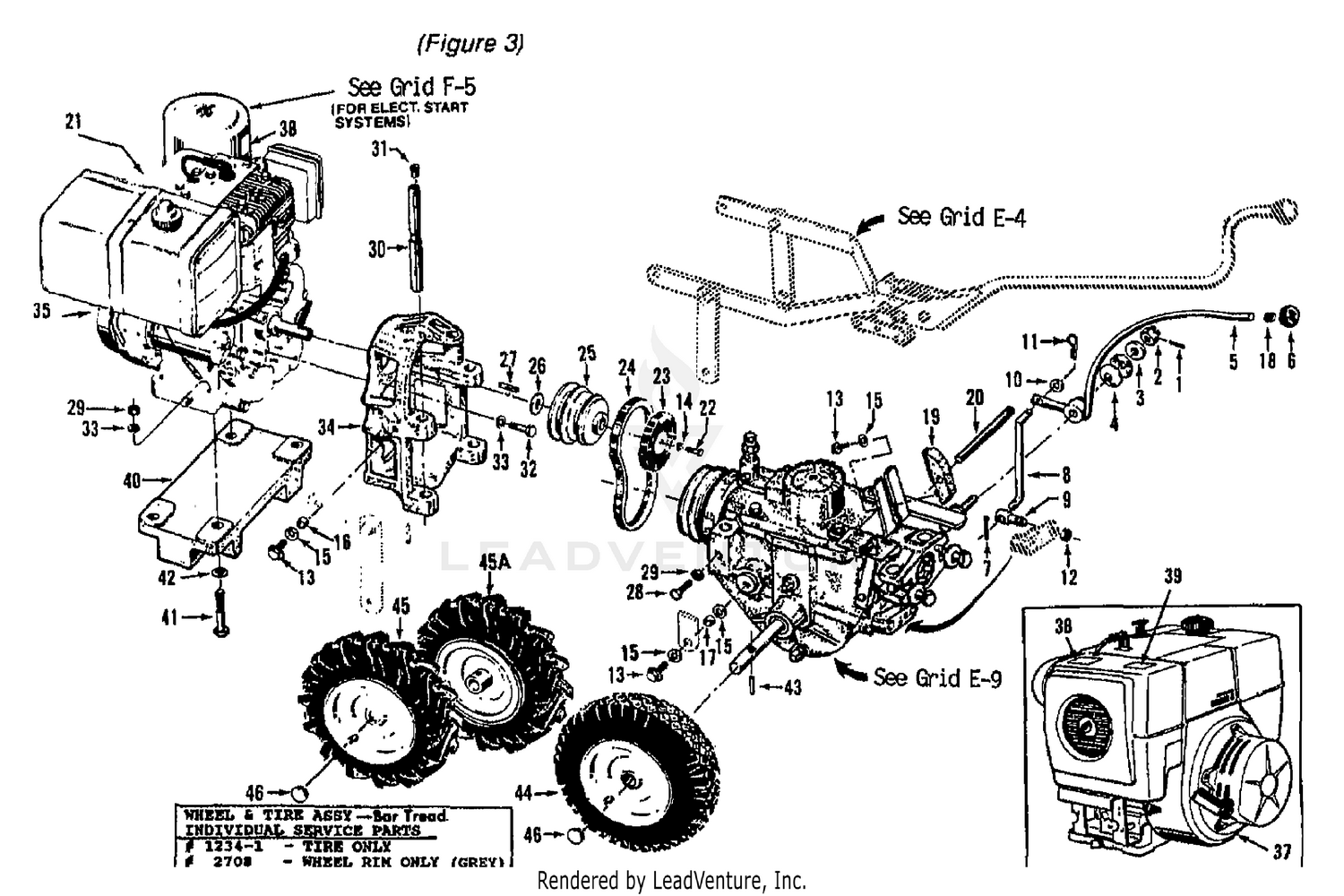

| Ref | Part Number | Description |
|---|
| 1 |
GW-9362 |
PIN-SPRING .125 X 1 Price: $3.82 |
| 2 |
GW-9838 |
HEX NUT 1/2-20 Not Available Price: |
| 3 |
GW-9934 |
WASHER-# SHOULDER ZP (SHOULDER FACES DISC WASHERS) Price: $13.73 |
| 4 |
GW-9932 |
WASHER-# 1.97X1X.118 (CONCAVE SURFACES FACE EACH OTHER) Price: $21.54 |
| 6 |
1902240 |
KNOB - wheel speed shift lever This part replaces GW-2596. Price: $20.45 |
| 7 |
GW-9317 |
PIN-COTTER .094X1.0 Price: $3.22 |
| 8 |
GW-1231 |
ROD-CONNECTING Price: $14.83 |
| 9 |
GW-1033 |
SWIVEL Price: $13.56 |
| 10 |
736-0567 |
NYLON FLAT WASHER Not Available This part replaces GW-9902. Price: |
| 11 |
714-04048 |
PIN - hair cotter This part replaces GW-9338. Price: $7.04 |
| 12 |
912-0158 |
Hex Lock Nut, 5/16-18 This part replaces GW-9808. Price: $2.83 |
| 13 |
710-04042 |
Hex Flange Screw, 3/8-16 This part replaces GW-90046. Price: $4.05 |
| 14 |
736-0169 |
L-Wash. 3/8" I.D." This part replaces GW-9913. Price: $3.33 |
| 15 |
736-3050 |
Washer, Plain (flat) 3/8, S.A.E. This part replaces GW-9904. Price: $3.90 |
| 16 |
GW-2146 |
BUSHING-.5X.375X.325 Not Available Price: |
| 17 |
GW-1113-1099 |
BUSHING - spacer, 19/64" (.300") long, yoke link to retaining plug This part replaces GW-1113-1. Price: $4.53 |
| 18 |
GW-9120 |
RING-TOLERANCE .5325 ID Price: $5.94 |
| 19 |
GW-1920 |
KIT-ADJ BLOCK 4 SP (INCL. 13,15,20) Price: $53.19 |
| 20 |
GW-2100 |
BAR-ADJUST Price: $11.28 |
| 21 |
GW-1900766 |
DECAL-STARTING STABIL (FOR B & S ENGINE) Not Available Price: |
| 22 |
710-0459A |
BOLT - hex. hd., 3/8"-24 x 1-1/2", engine pulley This part replaces GW-9715. Price: $6.50 |
| 23 |
756-04171 |
DISC ONLY-reverse, rubber rimmed This part replaces GW-2111. Price: $58.85 |
| 25 |
619-04124 |
PULLEY- engine P.T.O. (Power Take Off) This part replaces GW-1483. Price: $135.20 |
| 26 |
736-04187 |
SHIM - engine pulley, 1/16" thick This part replaces GW-1138-1. Price: $4.36 |
| 26 |
736-04192 |
SHIM - same as above, 1/32" thick This part replaces GW-1138-2. Price: $5.94 |
| 27 |
GW-9303 |
KEY-.188 SQ X 2.33 Price: $3.22 |
| 28 |
710-0376 |
Hex Screw, 5/16-18 x 1.00 This part replaces GW-90008. Price: $3.66 |
| 29 |
712-3010 |
HEX NUT 5/16-18 This part replaces GW-9801. Price: $3.89 |
| 30 |
GW-1034A |
BAR- engine mounting This part replaces GW-1034. Price: $41.06 |
| 31 |
GW-9147 |
PLUG-CAP (RED) Price: $7.05 |
| 32 |
710-0672 |
BOLT- hex. hd., 5/16"-24 x 1-1/8", engine mounting This part replaces GW-9572. Price: $3.85 |
| 33 |
936-0119 |
LOCK WASHER 5/16 This part replaces GW-9912. Price: $4.29 |
| 34 |
719-04222-0637 |
Motor Mount This part replaces GW-2565. Price: $274.62 |
| 38 |
GW-55053 |
DECAL-HOT SURFACE Not Available Price: |
| 39 |
GW-1900767 |
DECAL-STABIL STARTING Not Available Price: |
| 40 |
GW-2522 |
WEIGHT-ENG ECONO P Not Available Price: |
| 41 |
710-0395 |
Screw-Hex 5/16-18 This part replaces GW-9966. Price: $4.08 |
| 42 |
GW-20553 |
SPACER .88X.385X.0 Not Available Price: |
| 43 |
GW-9322099 |
PIN -roll (spirol, 5/16" x 1-1/2" long, wheel hub to shaft This part replaces GW-9322. Price: $6.86 |
| 45 |
GW-2709-01 |
WHEEL ASSEMBLY Not Available Price: |
| 45 |
GW-9143 |
WHEEL ASSEMBLY Not Available Price: |
| 45A |
GW-2709-02 |
WHEEL ASSEMBLY Not Available Price: |
| 45A |
GW-9144 |
WHEEL ASSEMBLY Not Available Price: |
