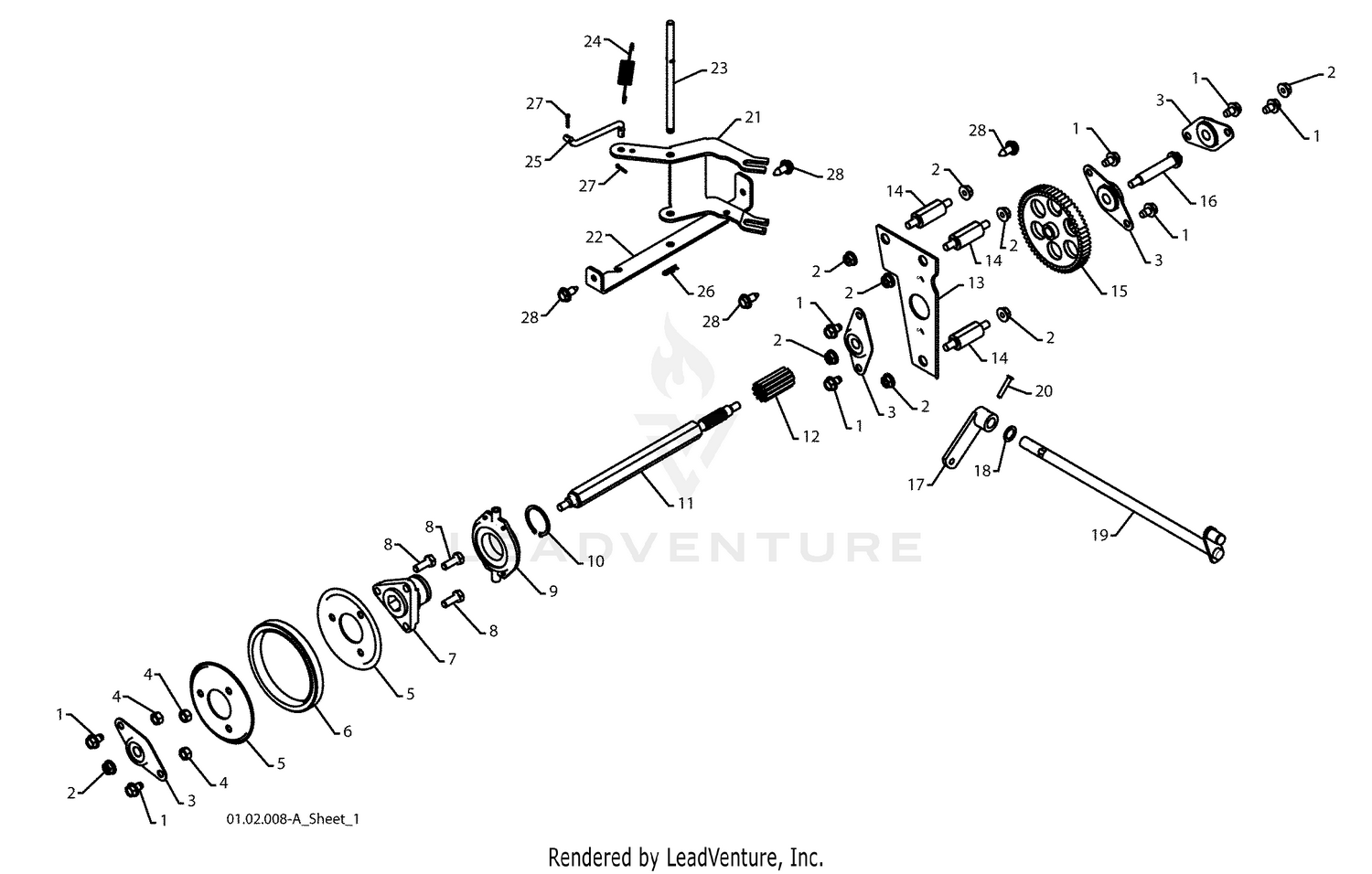

| Ref | Part Number | Description |
|---|
| 1 |
3219-2 |
NUT-HEX Price: $0.37 |
| 1 |
596030701 |
Screws This part replaces 817490508. Price: $2.99 |
| 2 |
3255-8 |
WASHER-LOCK Price: $0.31 |
| 2 |
532751153 |
NUT.LOCK.5/16-18 Price: $2.99 |
| 3 |
21-8270 |
PIN-DOWEL Price: $6.65 |
| 3 |
532180017 |
BEARING, FLANGE Price: $22.99 |
| 4 |
21-7720 |
WASHER-THRUST Price: $3.39 |
| 4 |
873930500 |
NUT.CENTERLOCK.5/16- Price: $3.99 |
| 5 |
110-4143 |
KIT-REPLACEMENT, REVACYCLE GEARS This part replaces 24-8790. Price: $702.98 |
| 5 |
532435789 |
PLATE.RUBBER.WHEEL.BLACK This part replaces 532199509. Price: $7.99 |
| 6 |
110-4143 |
KIT-REPLACEMENT, REVACYCLE GEARS This part replaces 21-7690. Price: $702.98 |
| 6 |
585021001 |
RING.RUBBER.4.5".SNOW.DR(2 2MC This part replaces 532179831. Price: $22.99 |
| 7 |
21-7730 |
WASHER-THRUST, PINION Price: $2.65 |
| 7 |
532178613 |
HUB, RUBBER WHEEL Price: $22.99 |
| 8 |
596322201 |
BOLT HEXAGON BOLT 5/16-18 X 7/ This part replaces 874760514. Price: $2.99 |
| 9 |
43-6760 |
BEARING-ROLLER, CONE TAPER Price: $113.20 |
| 9 |
597412801 |
BEARING HOUSING ASSY TRUNNION This part replaces 532175344. Price: $29.99 |
| 10 |
43-6750 |
BEARING-TAPER, CUP Price: $69.64 |
| 10 |
583607301 |
RING.RETAINING. This part replaces 812000012. Price: $2.99 |
| 11 |
532180066 |
SHAFT.HEX.LONG Price: $84.99 |
| 11 |
92-1773 |
SCREW-HHF Price: $3.05 |
| 12 |
532180065 |
GEAR, PINION Price: $12.99 |
| 13 |
32144-112 |
SCREW-HWH Price: $0.99 |
| 13 |
532192616 |
PLATE.AUXILIARY.BLACK This part replaces 532192907. Price: $4.99 |
| 14 |
532179270 |
SPACER, PLATE Price: $9.99 |
| 14 |
86-7230 |
GEAR-INPUT, TRANSMISSION Price: $610.12 |
| 15 |
43-6710 |
SHIM-PINION (.003) Price: $2.17 |
| 15 |
532441417 |
KIT.GEAR.DRIVE.SNOW This part replaces 532180082. Price: $199.99 |
| 16 |
43-6711 |
SHIM-PINION (.005) Price: $3.80 |
| 16 |
532180134 |
SHAFT, AUXILIARY Price: $6.99 |
| 17 |
43-6712 |
SHIM-PINION (.010) Price: $3.19 |
| 17 |
532405485 |
ARM, AUGER CONTROL Price: $6.99 |
| 18 |
43-6713 |
SHIM-PINION (.030) Price: $6.99 |
| 18 |
532057079 |
THRUST WASHER Price: $1.99 |
| 19 |
3210-7 |
SCREW-HH Price: $0.61 |
| 19 |
532429668 |
KIT.CONTROL.SHAFT.SNOW This part replaces 532406109. Price: $29.99 |
| 20 |
532198580 |
CLEVIS PIN Price: $4.99 |
| 20 |
71-4350 |
NUT Price: $3.46 |
| 21 |
532184080 |
LEVER, SPEED CONTROL Price: $12.99 |
| 21 |
83-5130 |
SPACER-PINION Price: $87.56 |
| 22 |
532435793 |
BRACKET.SHIFT.PIVOT.BLACK This part replaces 532187857. Price: $5.99 |
| 22 |
72-3572 |
SHIM-BEARING, FRONT (.098) This part replaces 72-3570. Price: $23.68 |
| 23 |
254-91 |
CONE-BEARING Price: $18.65 |
| 23 |
532178807 |
PIN, PIVOT Price: $3.99 |
| 24 |
254-90 |
BEARING-CUP This part replaces 21-8390. Price: $11.29 |
| 24 |
532180135 |
SPRING, BIAS Price: $3.99 |
| 25 |
21-8020 |
SPACER-BEARING Price: $28.84 |
| 25 |
532187101 |
LINK, SPEED CONTROL Price: $64.99 |
| 26 |
532085179 |
RETAINER CLIP PM Price: $3.99 |
| 26 |
86-7190 |
UPPER HOUSING ASM Price: $889.26 |
| 27 |
254-66 |
CUP-BEARING, ROLLER Price: $17.92 |
| 27 |
532700279 |
RETAINER CLIP Price: $2.99 |
| 28 |
254-65 |
BEARING-ROLLER, CONE Price: $62.13 |
| 30 |
32121-15 |
PIN-ROLL This part replaces 21-7710. Price: $1.60 |
| 31 |
21-7700 |
SHAFT-MATE, PINION Price: $54.05 |
| 32 |
21-7770 |
SCREW-GEAR, DRIVE Price: $1.97 |
| 33 |
21-7670 |
CASE-DIFFERENTIAL Price: $687.90 |
| 34 |
75-0720 |
DISCONTINUED Price: Call Us |
| 35 |
21-8120 |
SHIM-BEARING, DIFFERENTIAL (.030) Price: $5.43 |
| 36 |
21-8110 |
SHIM-BEARING, DIFFERENTIAL (.010) Price: $3.73 |
| 37 |
21-8100 |
SHIM-BEARING, DIFFERENTIAL (.005) Price: $3.46 |
| 38 |
21-8090 |
SHIM-BEARING, DIFFERENTIAL (.003) Price: $1.09 |
| 39 |
72-9420 |
VENT This part replaces 21-8230. Price: $6.85 |
| 40 |
83-4910 |
COUPLER-PINION Price: $223.04 |
| 41 |
71-4330 |
SEAL Price: $36.26 |
