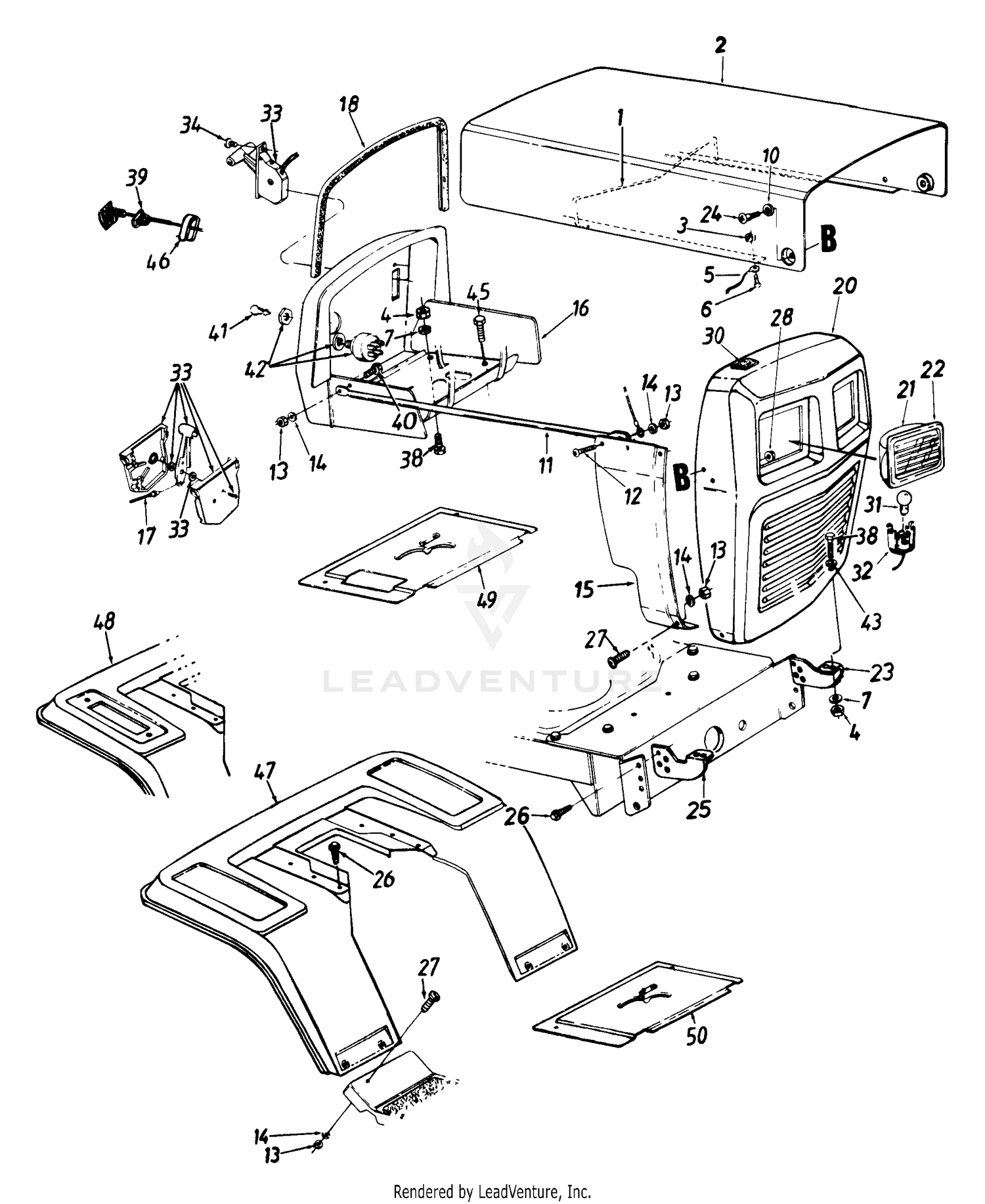

| Ref | Part Number | Description |
|---|
| 1 |
732-0414A |
SPRING-HOOD Not Available Price: |
| 2 |
14665A |
HOOD Not Available Price: |
| 5 |
723-0302 |
Hood Stop 7" Lg. Price: $11.12 |
| 10 |
736-0413 |
Washer .39" I.D. x .62" O.D. Price: $6.01 |
| 11 |
749-0721 |
ROD-GRILLE SUPPORT Not Available Price: |
| 14 |
936-0329 |
L-Wash. 1/4" I.D. This part replaces 736-0329. Price: $3.90 |
| 15 |
16622A |
PANEL-SIDE (RH) Not Available Price: |
| 16 |
17298 |
DASH PANEL Not Available Price: |
| 17 |
746-0501 |
Throttle Control Wire - B&S Price: $15.17 |
| 18 |
731-0511-3 |
Molding Strip 31" Lg. Price: Call Us |
| 20 |
17025 |
GRILLE Not Available Price: |
| 21 |
931-0705 |
HEADLIGHT HOUSING Not Available This part replaces 731-0705. Price: |
| 22 |
931-0706 |
HEADLAMP LENS Not Available This part replaces 731-0706. Price: |
| 23 |
16643A |
GRILLE MOUNT BRKT. Not Available Price: |
| 24 |
938-0952A |
Shoulder Bolt, .375 x .125 This part replaces 738-0724. Price: $6.17 |
| 25 |
16644A |
BRACKET-MT Not Available Price: |
| 26 |
710-0726 |
Hex Wash Hd. AB-Tap Scr 5/16 x 75" Lg. Price: $3.82 |
| 28 |
712-0380 |
LOCK NUT 1/4 x 28 Not Available Price: |
| 30 |
722-0157 |
FOAM STRIP Not Available Price: |
| 31 |
925-0963 |
Miniature Lamp 12V Socket Type This part replaces 725-0963. Price: $6.73 |
| 32 |
925-1650 |
SHORT LAMP SOCKET Not Available This part replaces 725-1650. Price: |
| 33 |
831-0823A |
Throttle Box Ass'y Price: $30.59 |
| 34 |
710-0779A |
Truss Mach. AB-Tap Scr #10 x .5" Lg. Price: $3.85 |
| 39 |
946-0615A |
CHOKE CONTROL 29" This part replaces 746-0615A. Price: $42.14 |
| 41 |
925-0201 |
Key This part replaces 725-0201. Price: $8.70 |
| 42 |
925-0267B |
Ignition Switch This part replaces 725-0267. Price: $33.31 |
| 43 |
736-3078 |
Fl-Wash. .344" I.D. x 1" O.D. Price: $3.95 |
| 45 |
170-0603 |
Hex Wash. Hd B-Tap Scr. 5/16-18 x .5" Lg. Price: Call Us |
| 46 |
17782 |
CLIP-CHOKE RETAINER Not Available Price: |
| 47 |
17870C |
FENDER-RR W/FRAME Not Available This part replaces 17870. Price: |
