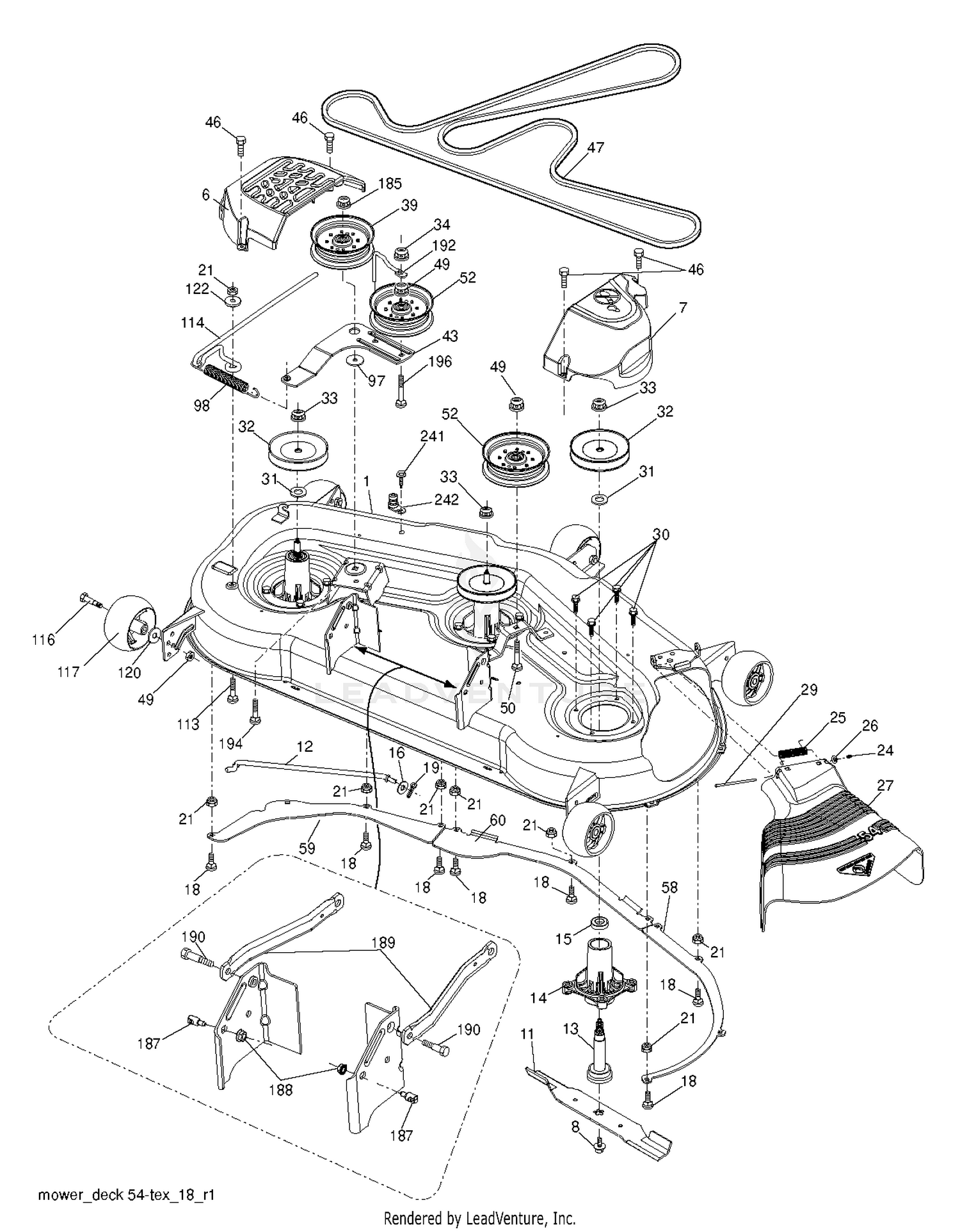

| Ref | Part Number | Description |
|---|
| 1 |
23-5020 |
DISCONTINUED Price: Call Us |
| 1 |
532199298 |
DECK.WLDMNT.54".5GWB.GREY This part replaces 532195632. Price: $349.99 |
| 2 |
3-7902 |
DISCONTINUED Price: Call Us |
| 3 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 4 |
3217-5 |
NUT-HEX Price: $0.25 |
| 5 |
3-7898 |
WASHER-THRUST Price: $1.47 |
| 6 |
5-1335 |
SIDE GEAR Price: $282.05 |
| 6 |
532196066 |
COVER.MANDREL.LH.54"20 Price: $19.99 |
| 7 |
5-2036 |
DISCONTINUED Price: Call Us |
| 7 |
532197181 |
COVER.MANDREL.RH.54.20 Price: $29.99 |
| 8 |
5-2037 |
SIDE GEAR Price: $525.58 |
| 8 |
532193003 |
BOLT.WASHER.ASM.7/16-2 Price: $5.99 |
| 9 |
256-154 |
BUSHING Price: $10.71 |
| 10 |
5-1401 |
DISCONTINUED Price: Call Us |
| 11 |
3-8025 |
DISCONTINUED Price: Call Us |
| 11 |
532187256 |
BLADE.BAGGING.54" Price: $17.99 |
| 12 |
3-8026 |
GEAR BUSHING SHAFT Price: $16.20 |
| 12 |
532404851 |
ROD.ANTI.SWAY.48/54"K4 Price: $17.99 |
| 13 |
5-1413 |
DISCONTINUED Price: Call Us |
| 13 |
532187291 |
SHAFT ASM MANDREL Price: $17.99 |
| 14 |
3-8015 |
DISCONTINUED Price: Call Us |
| 14 |
532187281 |
HOUSING.MANDREL.4PT. Price: $22.99 |
| 15 |
32150-1 |
KEY-SQUARE Price: $4.39 |
| 15 |
532110485 |
BEARING Price: $7.99 |
| 16 |
3-7903 |
DISCONTINUED Price: Call Us |
| 16 |
734117201 |
WASHER This part replaces 819131312. Price: $1.99 |
| 17 |
302-11 |
FITTING-LUBE, 45 DEG Price: $1.56 |
| 18 |
242-33 |
DISCONTINUED Price: Call Us |
| 18 |
872140505 |
BOLT Price: $2.99 |
| 19 |
3-8529 |
DISCONTINUED Price: Call Us |
| 19 |
532194208 |
PIN.COTTER.5/16.BOW TI Price: $1.99 |
| 20 |
242-39 |
WHEEL ASM Price: $244.32 |
| 21 |
5108 |
VALVE This part replaces 232-27. Price: $6.29 |
| 21 |
873800500 |
NUT.71038.31-18.HEX.NYLOCK This part replaces 873680500. Price: $2.99 |
| 22 |
237-70 |
DISCONTINUED Price: Call Us |
| 23 |
117127 |
TIRE (16 X 6.5-8) 2-PLY -2 WHEEL AXEL This part replaces 231-39. Price: $107.13 |
| 24 |
242-32 |
LUG NUT Price: $4.77 |
| 24 |
532105304 |
CAP-SLEEVE LT Price: $2.99 |
| 25 |
323-4 |
SCREW-HH Price: $1.02 |
| 25 |
539107609 |
TORSION SPRING This part replaces 532178102. Price: $1.99 |
| 26 |
532110452 |
NUT PUSH M Price: $1.99 |
| 26 |
95-1823 |
WASHER This part replaces 3-3391. Price: $29.18 |
| 27 |
3255-9 |
WASHER-LOCK Price: $0.28 |
| 27 |
532187257 |
DEFLECTOR.BLACK.54" This part replaces 532188938. Price: $54.99 |
| 28 |
3-0737 |
WASHER Price: $7.59 |
| 29 |
3-7856 |
DISCONTINUED Price: Call Us |
| 29 |
532131491 |
ROD.HINGE Price: $1.99 |
| 30 |
2710-11 |
LINK-CHAIN Price: $5.68 |
| 30 |
584953901 |
BOLT.HEX.WASHR.HED.313-18X1.19 This part replaces 532173984. Price: $1.99 |
| 31 |
321-5 |
SCREW-HH Price: $0.22 |
| 31 |
532187690 |
WASHER.SPACER.MANDREL Price: $1.99 |
| 32 |
3-7896 |
REEL BELT Price: $75.42 |
| 32 |
532173436 |
PULLEY MANDREL This part replaces 532153535. Price: $7.99 |
| 33 |
3290-245 |
DISCONTINUED Price: Call Us |
| 33 |
532400234 |
NUT.FLANGE.LOCK.TOP Price: $3.99 |
| 34 |
3-7167 |
DISCONTINUED Price: $2.00 |
| 34 |
873680600 |
LOCKNUT Price: $1.99 |
| 35 |
5-1077 |
KEY-SQUARE Price: $6.18 |
| 37 |
5-1404 |
DISCONTINUED Price: Call Us |
| 38 |
3-7858 |
DISCONTINUED Price: Call Us |
| 39 |
2710-15 |
LINK-OFFSET Price: $29.98 |
| 39 |
532196104 |
PULLEY.IDLER.MWR.STATIONARY.LH This part replaces 532197380. Price: $22.99 |
| 40 |
4-8049 |
DISCONTINUED Price: Call Us |
| 41 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 42 |
32120-93 |
RING-RETAINING Price: $2.49 |
| 43 |
3-6168 |
KEY Price: $11.99 |
| 43 |
532196065 |
ARM.IDLER Price: $11.99 |
| 44 |
5-2187 |
TRACTION SPROCKET Price: $91.00 |
| 45 |
5-2188 |
DISCONTINUED Price: Call Us |
| 46 |
322-4 |
SCREW-HH Price: $0.35 |
| 46 |
532137729 |
SCREW.1/4-20X5/8 Price: $2.99 |
| 47 |
251-318 |
BEARING-BALL This part replaces 251-204. Price: $16.40 |
| 47 |
587686701 |
BELT.DECK.DRIVE.BELT.54 This part replaces 532196103. Price: $44.99 |
| 48 |
3290-238 |
WASHER-LOCK Price: $2.71 |
| 49 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 49 |
532409148 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $2.99 |
| 50 |
5-1354 |
DISCONTINUED Price: Call Us |
| 50 |
872110616 |
BOLT Price: $3.99 |
| 51 |
3290-244 |
WASHER-LOCK Price: $0.85 |
| 52 |
32153-3 |
NUT-HEX, SIDE DEFORM This part replaces 32146-5. Price: $5.59 |
| 52 |
532196106 |
PULLEY.IDLER.2006 This part replaces 532197379. Price: $14.99 |
| 53 |
3254-8 |
WASHER-LOCK Price: $0.37 |
| 54 |
3-7243 |
SPRING-EXTENSION Price: $11.23 |
| 55 |
256-149 |
DISCONTINUED Price: Call Us |
| 56 |
32120-69 |
RING-SNAP Price: $2.78 |
| 57 |
3-6561 |
DISCONTINUED Price: Call Us |
| 58 |
3-6049 |
BELL CRANK & SHAFT Price: $531.69 |
| 58 |
532187342 |
BAFFLE.RIGHT.54" Price: $12.99 |
| 59 |
3-6557 |
THRUST WASHER Price: $6.96 |
| 59 |
532187344 |
BAFFLE.LEFT.54" Price: $14.99 |
| 60 |
5-1841 |
DISCONTINUED Price: Call Us |
| 60 |
532187607 |
BAFFLE CENTER 54" MOWER Price: $17.99 |
| 61 |
2710-6 |
LINK-CONNECTING Price: $18.99 |
| 62 |
3-6535 |
TRACTION CHAIN Price: $108.13 |
| 63 |
3246-4 |
SCREW-SET Price: $0.75 |
| 64 |
3256-4 |
WASHER-FLAT Price: $0.28 |
| 65 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 66 |
3257-5 |
KEY-WOODRUFF Price: $5.13 |
| 67 |
4-2390 |
WASHER-FLAT Price: $0.62 |
| 68 |
3-7386 |
SPINDLE Price: $9.47 |
| 69 |
3-6379 |
DISCONTINUED Price: Call Us |
| 70 |
252-62 |
DISCONTINUED Price: Call Us |
| 71 |
3-7843 |
DISCONTINUED Price: Call Us |
| 72 |
3-7857 |
BELT-V, RIBBED Price: $102.86 |
| 73 |
5-1351 |
DISCONTINUED Price: Call Us |
| 74 |
32120-41 |
DISCONTINUED Price: Call Us |
| 75 |
5-1992 |
DISCONTINUED Price: Call Us |
| 76 |
3-6543 |
DISCONTINUED Price: Call Us |
| 78 |
11-4640 |
TENSION SPRING Price: $7.99 |
| 79 |
3276-6 |
Cotter Pin Price: Call Us |
| 80 |
283-1 |
PIN-CLEVIS Price: $1.63 |
| 81 |
3-8325 |
DISCONTINUED Price: Call Us |
| 82 |
32121-7 |
PIN-ROLL, SLOTTED Price: $0.31 |
| 83 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 84 |
3-8284 |
DISCONTINUED Price: Call Us |
| 85 |
3220-2 |
NUT-JAM Price: $0.50 |
| 86 |
5-1444 |
ROD & FLANGE WA Price: $28.78 |
| 87 |
3-6952 |
DISCONTINUED Price: Call Us |
| 88 |
5-2038 |
DISCONTINUED Price: Call Us |
| 89 |
3-3129 |
DISCONTINUED Price: Call Us |
| 90 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 91 |
3-8286 |
DISCONTINUED Price: Call Us |
| 92 |
302-42 |
DISCONTINUED Price: Call Us |
| 93 |
3219-2 |
NUT-HEX Price: $0.37 |
| 94 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 95 |
3-7861 |
DISCONTINUED Price: Call Us |
| 97 |
532178515 |
WASHER Price: $2.99 |
| 98 |
532196105 |
SPRING, DECK DRIVE Price: $4.99 |
| 113 |
872110508 |
BOLT CRT Price: $2.99 |
| 114 |
532187556 |
ROD TENSION RELIEF Price: $12.99 |
| 116 |
532193406 |
BOLT.SHOULDER.3/8-16X3-5/8. Price: $1.99 |
| 117 |
532174873 |
WHEEL. GUAGE RALLY Price: $7.99 |
| 120 |
819132012 |
WASHER Price: $2.99 |
| 122 |
532187557 |
BUSHING.RELIEF.TENSION Price: $2.99 |
| 185 |
873900700 |
NUT.LOCK.FLANGE.7/16 Price: $3.99 |
| 187 |
532195161 |
STUD.FASTNER.W/ANTI-ROTATE Price: $3.99 |
| 188 |
583612701 |
NUT HEX,LOCK,FLAN This part replaces 873900500. Price: $3.99 |
| 189 |
532195185 |
ARM.SUSPENSION.MOWER Price: $11.99 |
| 190 |
532196539 |
BOLT.SHOULDER Price: $4.99 |
| 192 |
532198468 |
KEEPER.BELT.IDLER.54"T Price: $5.99 |
| 194 |
874490736 |
BOLT.HEX.WASHER.HEAD.7/16-24X Price: $8.99 |
| 196 |
872140620 |
BOLT Price: $3.99 |
| 241 |
532415598 |
PORT.WASHOUT Price: $5.99 |
| 242 |
532152927 |
SCREW.TT.#10-32X.5.3/8.FLANGE Price: $3.99 |
| 532187255 |
54" |
MULCH BLADE Price: $14.99 532187255 |
| 587125401 |
MANDREL.W/SPCR.BRG.TALL.NONREV |
This part replaces 532187292. Price: $32.99 587125401 |
