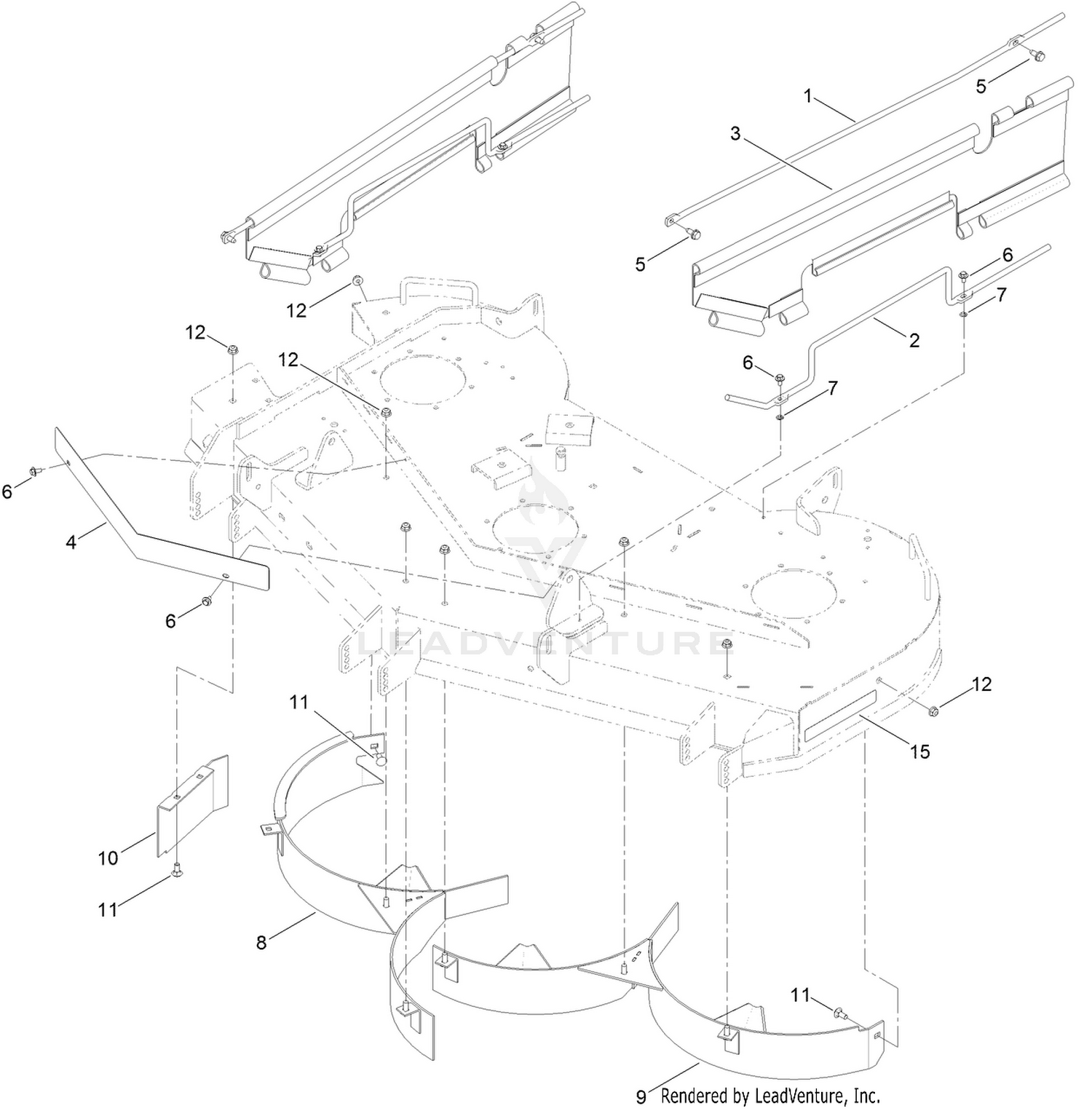

54 Inch Deck Baffle Assembly
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 131-3904 | ROD SUPPORT, UPPER Price: $15.33 |
| 2 | 131-3905 | ROD SUPPORT, LOWER Price: $17.32 |
| 3 | 131-3906 | GUARD-SIDE Price: $16.41 |
| 4 | 131-3901-03 | SHIELD-FRONT Price: $14.71 |
| 5 | 32144-70 | SCREW-HWHTF Price: $1.99 |
| 6 | 46-8560 | SCREW-HHFTF Price: $1.79 |
| 7 | 1-803037 | NUT-RETAINING Price: $1.39 |
| 8 | 115-9673-03 | BAFFLE-RECYCLER, RH Price: $218.11 |
| 9 | 115-9674-03 | BAFFLE-RECYCLER, LH Price: $218.11 |
| 10 | 117-7213-03 | GUARD-BAFFLE Price: $21.57 |
| 11 | 3230-1 | BOLT-CARR Price: $1.49 |
| 12 | 104-8300 | NUT-HF, NI Price: $0.39 |
