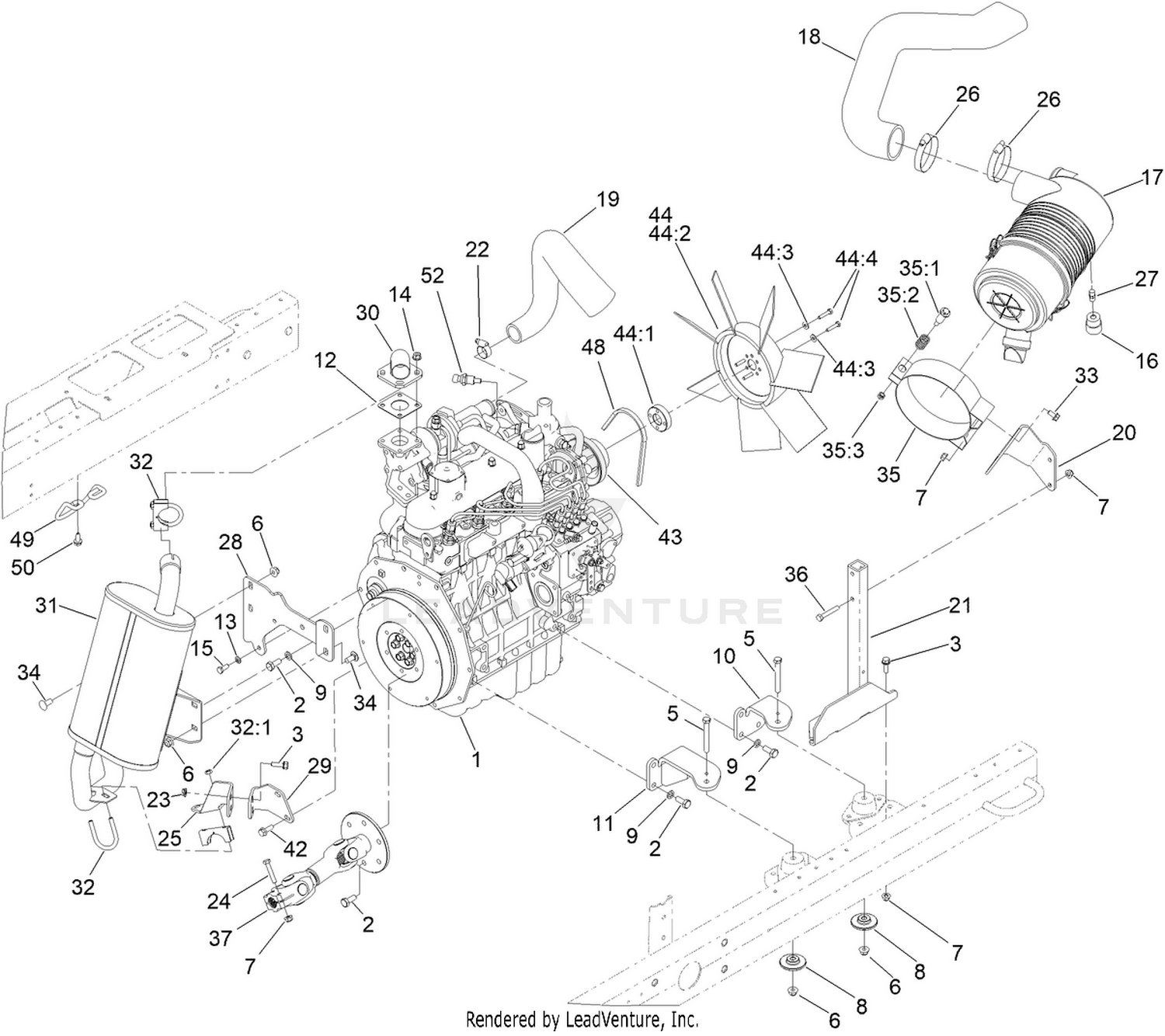

Engine, Muffler and Air Cleaner Assembly
Parts (41)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 132-5209 | ENGINE-KUBOTA, V1505T (SERVICE) Price: $11,438.98 |
| 2 | 43-0090 | SCREW-HH Price: $8.05 |
| 3 | 3234-29 | SCREW-HHF Price: $1.84 |
| 5 | 323-14 | SCREW-HH Price: $1.34 |
| 6 | 104-8301 | NUT-HF, NI Price: $1.09 |
| 7 | 104-8300 | NUT-HF, NI Price: $0.39 |
| 8 | 138-6462 | SUPPORT-ISOLATOR Price: $4.17 |
| 9 | 48-9590 | WASHER-LOCK Price: $0.25 |
| 10 | 115-8066-0P | MOUNT-ENGINE Price: $42.18 |
| 11 | 120-3812-0P | MOUNT ASM [PRIMED] Price: $55.51 |
| 12 | 99-8343 | GASKET-MUFFLER Price: $14.99 |
| 13 | 3253-4 | WASHER-LOCK Price: $0.25 |
| 14 | 104-2612 | NUT-HF Price: $0.70 |
| 15 | 33114-020 | SCREW-HH Price: $0.28 |
| 16 | 93-9164 | INDICATOR-MINI Price: $55.24 |
| 17 | 110-8917 | AIR CLEANER ASM Price: $188.15 |
| 18 | 110-8944 | HOSE-FORMED Price: $171.55 |
| 19 | 117-8061 | HOSE-TURBO Price: $100.78 |
| 20 | 110-8981-0P | BRACKET-MNT AC TURBO Price: $34.30 |
| 21 | 121-5611-0P | STAND W.A. -AIR CLEANER [PRIMED Price: $134.98 |
| 22 | 2412-3 | CLAMP-HOSE Price: $3.49 |
| 23 | 32128-20 | NUT-HF Price: $0.99 |
| 24 | 322-9 | SCREW-HH Price: $3.09 |
| 25 | 117-0286 | BRACKET-TAILPIPE Price: $18.06 |
| 26 | 2412-125 | CLAMP-HOSE Price: $5.22 |
| 27 | 94-1416 | ADAPTER-INDICATOR Price: $11.87 |
| 28 | 108-1785-0P | BRACKET -SUPPORT, MUFFLER Price: $85.53 |
| 29 | 117-0288 | BRACKET-TAILPIPE Price: $16.85 |
| 30 | 108-1783 | HEADER ASM Price: $73.18 |
| 31 | 108-7643 | MUFFLER Price: $645.59 |
| 32 | 2112-9 | CLAMP Price: $7.78 |
| 33 | 3234-14 | SCREW-HHF Price: $0.61 |
| 34 | 3231-27 | SCREW-CARR Price: $0.54 |
| 35 | 93-7486 | CLAMP ASM Price: $81.87 |
| 36 | 322-10 | SCREW-HH Price: $0.70 |
| 37 | 108-1641 | DRIVESHAFT ASM Price: $717.02 |
| 42 | 33104-025 | SCREW-HHF Price: $6.47 |
| 43 | 110-0972 | PULLEY Price: $55.10 |
| 48 | 98-9676 | V-BELT Price: $31.01 |
| 49 | 127-2612 | GUARD-PIPE, TAIL Price: $11.72 |
| 50 | 32104-32 | SCREW-HWH Price: $1.99 |
