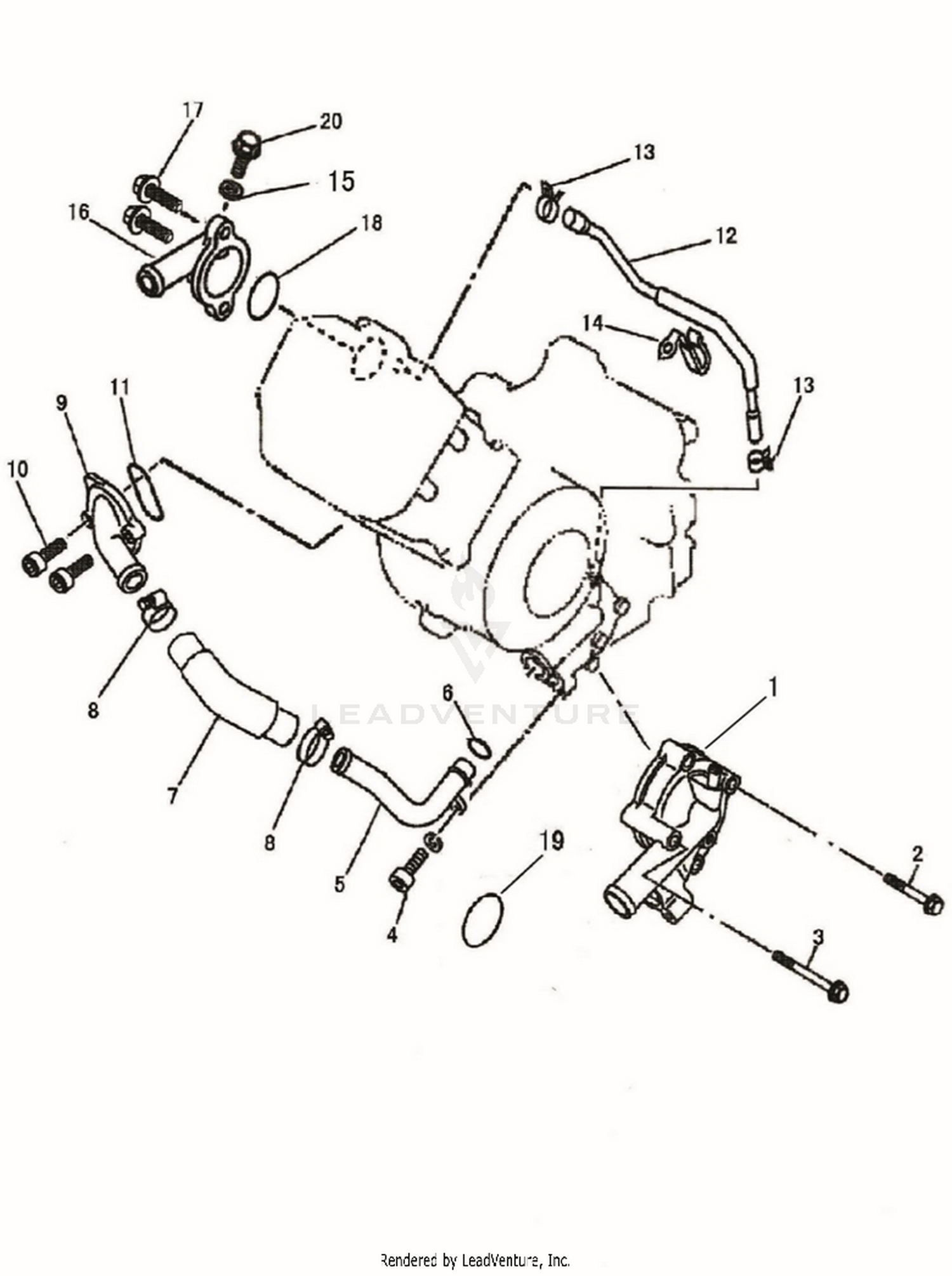

| Ref | Part Number | Description |
|---|
| 1 |
503-01199A |
WATER PUMP ASSEMBLY Price: $454.86 |
| 2 |
503-01200 |
HEX FLANGE BOLT M6X45 Price: $5.36 |
| 3 |
503-01201 |
HEX FLANGE BOLT M6X65 Not Available Price: |
| 4 |
503-01031 |
HEX FLANGE BOLTS M6X16 Not Available Price: |
| 5 |
503-02444 |
WATER PIPE (CHALLENGER 750) Price: $29.05 |
| 6 |
503-01203 |
O-RING 20.7X2.6 Price: $14.08 |
| 7 |
503-02424 |
HOSE (CHALLENGER 750) Price: $51.68 |
| 8 |
503-01205 |
HOSE CLAMP ASSEMBLY Not Available Price: |
| 9 |
503-01206 |
OUTLET WATER HOSE Price: $26.19 |
| 10 |
503-01145 |
HEX FLANGE BOLTS M6X20 Not Available Price: |
| 11 |
503-01207 |
O-RING 33.4X2.4 Price: $29.73 |
| 12 |
503-01208 |
WATER PIPE I Price: $31.49 |
| 13 |
503-01327 |
CLIP Price: $3.88 |
| 14 |
503-00981 |
PIPE CLAMP Price: $4.85 |
| 15 |
503-00922 |
ALUMINUM WASHER 6X12X1.5 Price: $5.36 |
| 16 |
503-01211 |
THERMOSTAT COVER Price: $25.77 |
| 17 |
503-01145 |
HEX FLANGE BOLTS M6X20 Not Available Price: |
| 18 |
503-01212 |
THERMOSTAT COVER SEAL Price: $6.16 |
| 19 |
503-01213 |
O-RING 34.2X2.5 Price: $19.38 |
