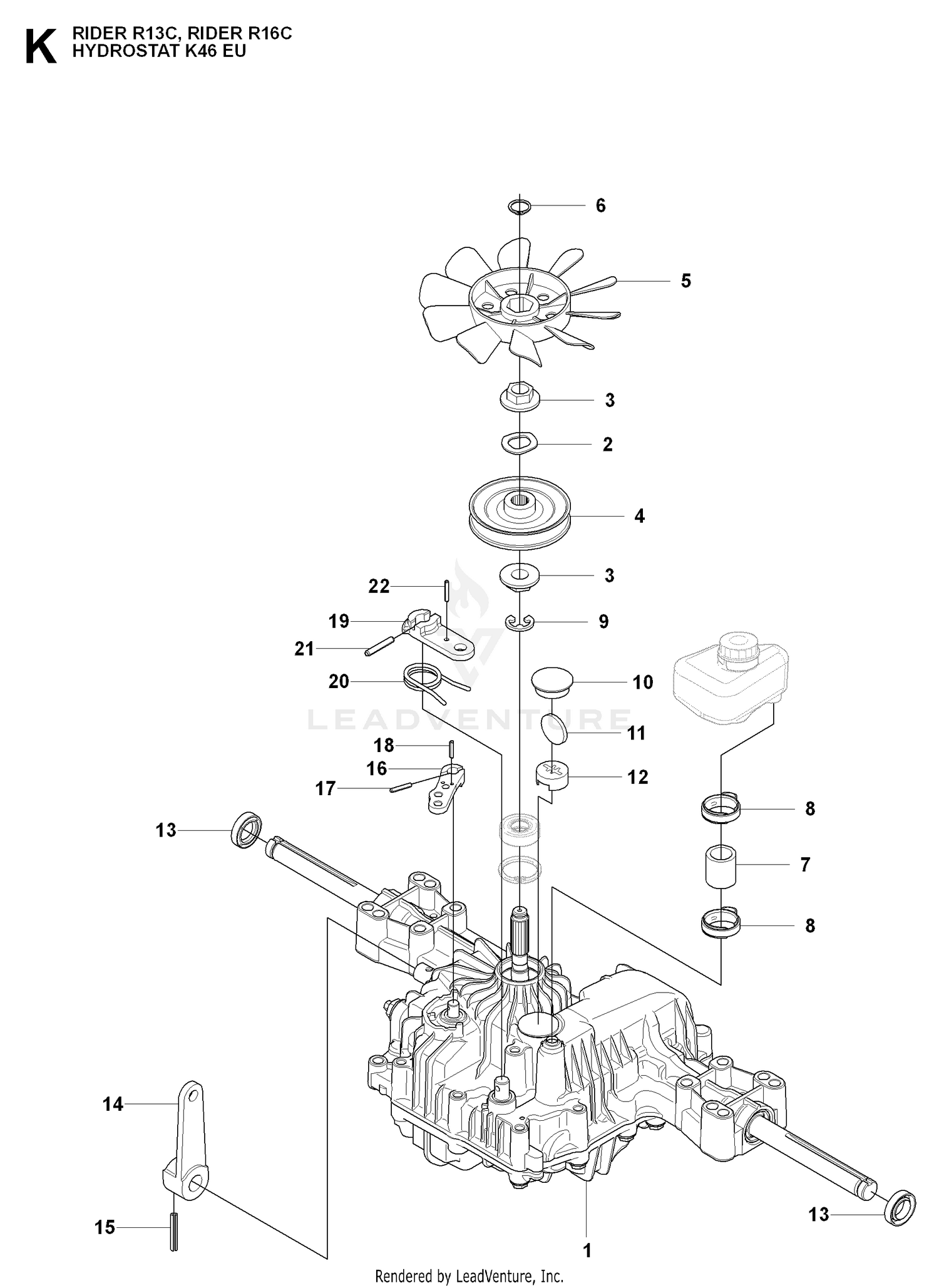

TRANSMISSION 2
Parts (42)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 110-0963 | DECAL Price: $45.64 |
| 1 | 506986301 | HYDROSTAT 7A646024070 Price: $1,099.99 |
| 2 | 108-7587 | SADDLE-HOOD Price: $151.95 |
| 2 | 506986501 | WASHER ** Price: $3.99 |
| 3 | 110-8994 | HOOD ASM Price: $2,600.70 |
| 3 | 506986601 | SLEEVE Price: $7.99 |
| 4 | 103-2897 | LATCH-CATCH Price: $7.99 |
| 4 | 502451901 | PULLEY B Price: $37.99 |
| 5 | 103-2898 | LATCH-RUBBER Price: $32.99 |
| 5 | 583350101 | FAN.BLACK.1A646083070 This part replaces 506986801. Price: $27.99 |
| 6 | 125-8819-03 | TUBE-FRAME, HOOD Price: $124.82 |
| 6 | 735311500 | RETAINING RING ** Price: $2.99 |
| 7 | 105-7512 | PIN-TIE, BOW Price: $4.27 |
| 7 | 502451601 | TUBE Price: $17.99 |
| 8 | 505131102 | HOSE CLAMP 20-32 This part replaces 506987001. Price: $4.99 |
| 8 | 66-6140 | DECAL Price: $25.48 |
| 9 | 108-1790-03 | TUBE Price: $95.49 |
| 9 | 535402807 | CLIP Price: $0.25 |
| 10 | 32104-17 | SCREW-HWH Price: $0.99 |
| 10 | 535402832 | PLUG Price: $14.99 |
| 11 | 3234-21 | SCREW-HHF Price: $2.19 |
| 11 | 535402829 | MAGNET Price: $5.17 |
| 12 | 104-7201 | NUT-HF Price: $0.69 |
| 12 | 535402830 | HOLDER Price: $4.55 |
| 13 | 32105-13 | SCREW-HWH Price: $1.59 |
| 13 | 583349301 | SEAL.19, 19216334280 This part replaces 535402837. Price: $17.99 |
| 14 | 3256-14 | WASHER-FLAT Price: $0.39 |
| 15 | 3296-12 | NUT-LOCK, NI Price: $1.29 |
| 15 | 535402809 | PIN Price: $2.99 |
| 16 | 283-61 | PIN-YOKE Price: $1.56 |
| 16 | 535402817 | ARM Price: $19.99 |
| 17 | 107-8042 | BUMPER-RUBBER Price: $1.30 |
| 17 | 535402816 | PIN Price: $2.99 |
| 18 | 535402833 | PIN Price: $2.99 |
| 18 | 98-5398 | LATCH Price: $32.53 |
| 19 | 32104-32 | SCREW-HWH Price: $1.99 |
| 19 | 535402838 | ARM Price: $14.99 |
| 20 | 104-1453 | GROMMET Price: $6.57 |
| 20 | 535402839 | RETURN SPRING Price: $11.99 |
| 21 | 535402840 | PIN Price: $3.99 |
| 22 | 535402841 | PIN Price: $2.99 |
| 22 | 99-4958 | SPACER Price: $2.39 |
