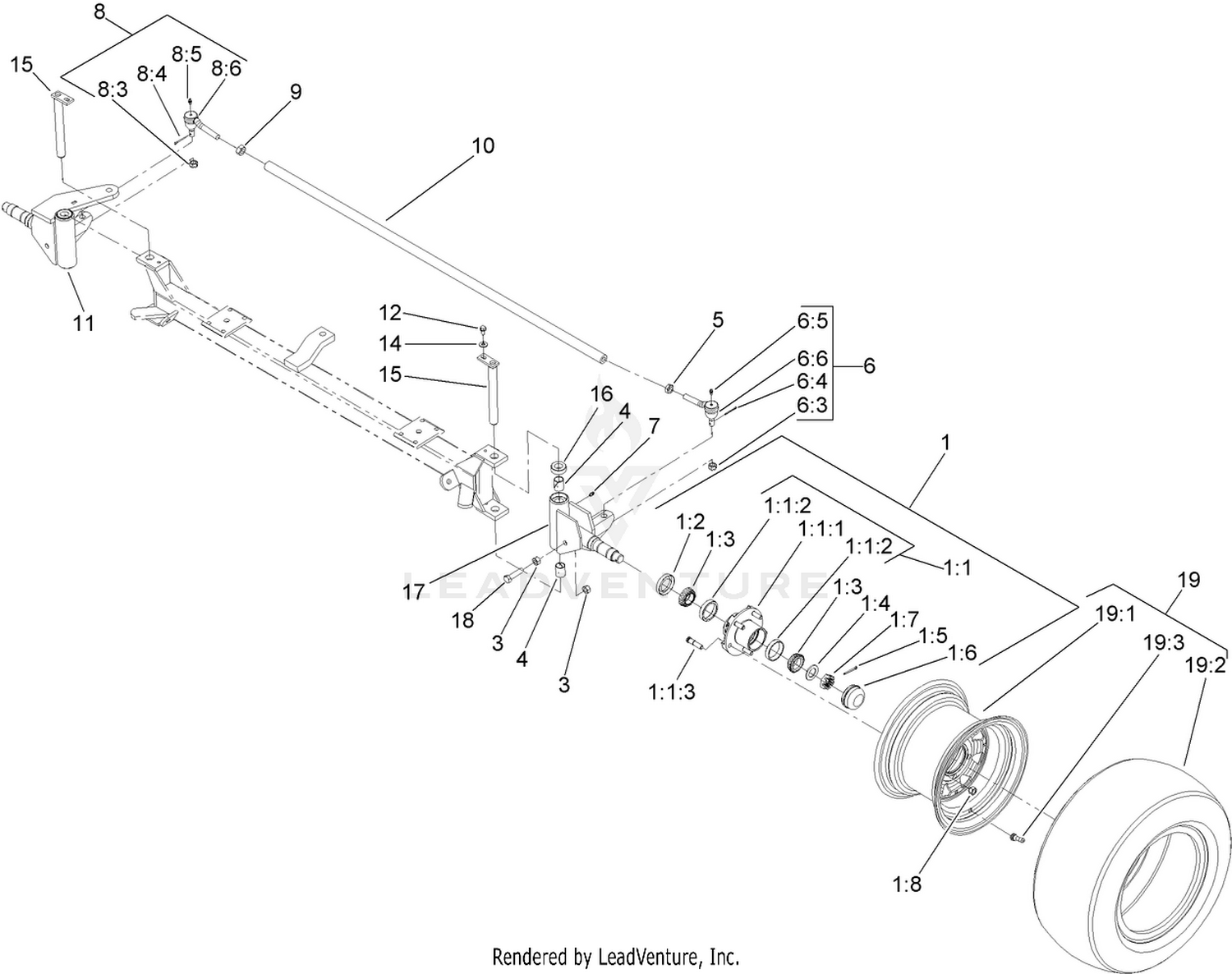

Front Wheel, Tie Rod and Spindle Assembly
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 119-6003 | HUB ASM Price: $163.68 |
| 3 | 3217-9 | NUT-HH Price: $0.37 |
| 4 | 93-6586 | BUSHING Price: $26.89 |
| 5 | 3220-11 | NUT-JAM Price: $0.81 |
| 6 | 87-1480-03 | END-TIE ROD, RH Price: $101.78 |
| 7 | 302-5 | FITTING-GREASE Price: $0.59 |
| 8 | 87-1470-03 | END-TIE ROD, LH Price: $101.78 |
| 9 | 3218-21 | NUT-JAM Price: $3.19 |
| 10 | 93-6588-03 | ROD-STEERING This part replaces 93-6588. Price: $296.55 |
| 11 | 117-5899-03 | LH SPINDLE HOUSING ASM Price: $973.03 |
| 12 | 32144-14 | SCREW-HWHTF Price: $4.29 |
| 14 | 3256-3 | WASHER-FLAT Price: $0.49 |
| 15 | 93-6584 | KING PIN ASM Price: $68.03 |
| 16 | 93-6587 | BEARING Price: $14.99 |
| 17 | 117-5897-03 | SPINDLE ASM Price: $461.32 |
| 18 | 01-182-0816 | BOLT-HH Price: $2.85 |
