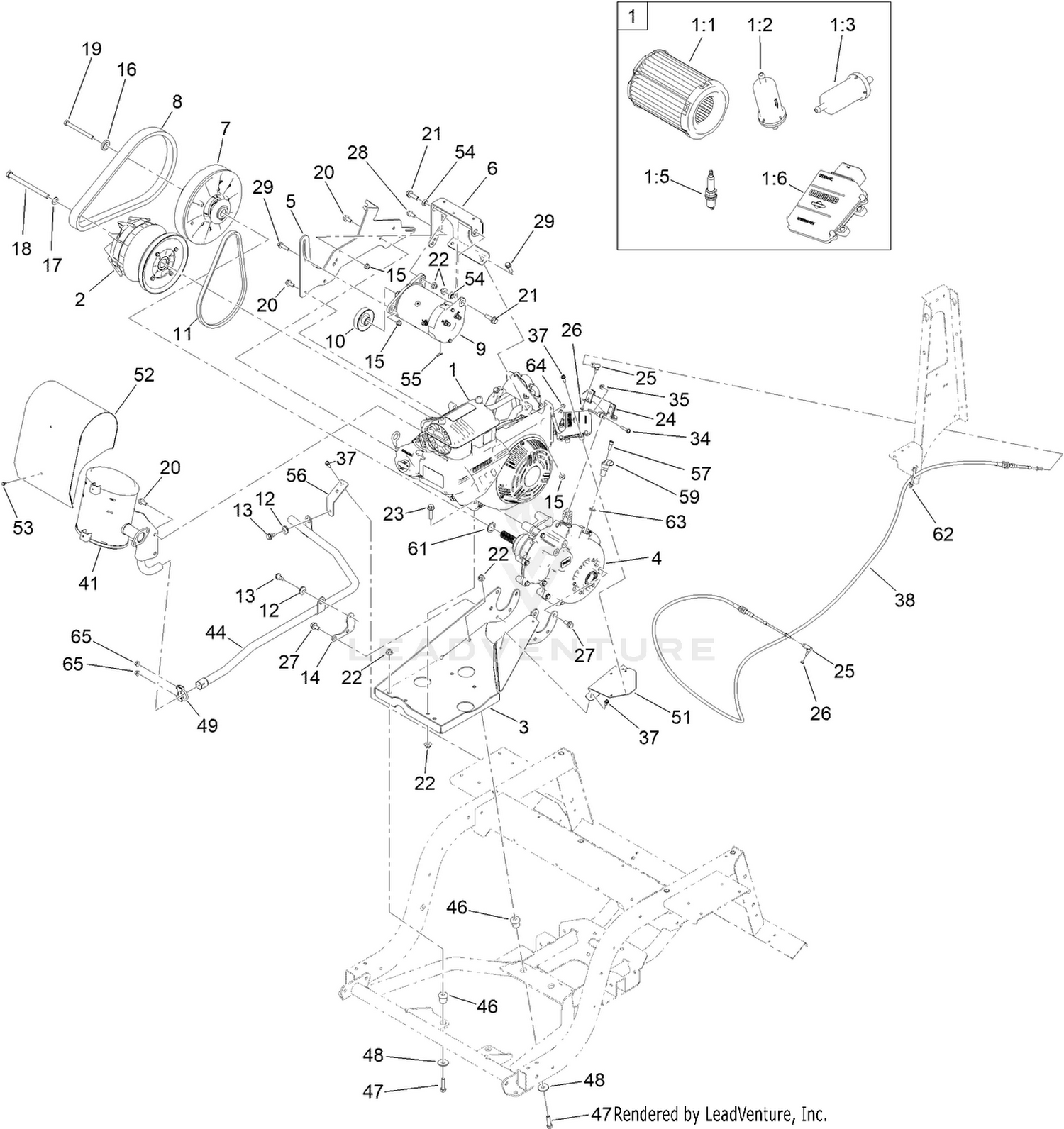

Engine and Transaxle Assembly
Parts (51)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 161-2035 | ENGINE-BRIGGS Price: Call Us |
| 2 | 147-4088 | PRIMARY CLUTCH ASM Price: $449.57 |
| 3 | 140-9783-03 | TRAY-ENGINE ASM Price: $188.85 |
| 4 | 140-9807 | TRANSAXLE-GAS Price: $1,213.02 |
| 5 | 140-9777-03 | PLATE-SPANNER Price: $47.42 |
| 6 | 144-5490-03 | BRACKET-STARTER Price: $26.80 |
| 7 | 119-6011 | SECONDARY CLUTCH ASM Price: $617.73 |
| 8 | 131-8567 | BELT-VARIABLE Price: $89.84 |
| 9 | 131-8444 | STARTER/GENERATOR ASM Price: $426.18 |
| 10 | 140-9821 | PULLEY-DRIVE Price: $17.93 |
| 11 | 63-2951 | V-BELT, TRACTION Price: $18.59 |
| 12 | 1-633630 | GROMMET Price: $5.29 |
| 13 | 99-5105 | BOLT-SHOULDER Price: $5.89 |
| 14 | 144-5496 | BRACKET-EXHAUST Price: $7.01 |
| 15 | 104-8300 | NUT-HF, NI Price: $0.39 |
| 16 | 104-6563 | WASHER-STEPPED Price: $9.44 |
| 17 | 3256-25 | WASHER-FLAT Price: $0.25 |
| 18 | 131-8521 | SCREW-HH Price: $5.63 |
| 19 | 119-0723 | SCREW-HH, LOCK Price: $8.62 |
| 20 | 139-3392 | SCREW-LOCK Price: $1.49 |
| 21 | 119-4061 | SCREW-HHF Price: $0.75 |
| 22 | 104-8301 | NUT-HF, NI Price: $1.09 |
| 23 | 114-4681 | SCREW-HHF Price: $0.89 |
| 24 | 133-7260-03 | ARM-SHIFT Price: $53.58 |
| 25 | 2411-38 | JOINT-BALL Price: $21.96 |
| 26 | 3296-27 | NUT-LOCK, NI Price: $0.27 |
| 27 | 139-6300 | SCREW-HFL Price: $1.82 |
| 28 | 3234-47 | SCREW-HHF Price: $1.79 |
| 29 | 3234-36 | SCREW-HHF Price: $0.75 |
| 34 | 132-6777 | SCREW-TTH Price: $0.95 |
| 35 | 104-7201 | NUT-HF Price: $0.69 |
| 37 | 49-2040 | SCREW-HWHTF Price: $1.99 |
| 38 | 127-8897 | CABLE-SHIFT Price: $160.80 |
| 41 | 144-5447 | MUFFLER-BRIGGS Price: $330.84 |
| 44 | 144-5435 | TAILPIPE-LONG Price: $86.30 |
| 46 | 63-9750 | MOUNT Price: $18.92 |
| 47 | 323-8 | SCREW-HH Price: $1.20 |
| 48 | 2844 | WASHER Price: $2.69 |
| 49 | 144-5467 | CLAMP-MUFFLER Price: Call Us |
| 51 | 144-5477-03 | BRACKET-ECU Price: $4.70 |
| 52 | 144-5590 | MUFFLER SHIELD Price: $153.37 |
| 53 | 104-2065 | SCREW-HWH Price: $0.28 |
| 54 | 107-0758 | SPACER-BEARING Price: $2.09 |
| 55 | 32180-535 | TERMINAL-TAB Price: $1.24 |
| 56 | 145-7188-03 | BRACKET-EXHAUST Price: $6.38 |
| 57 | 3274-10 | SCREW-HSH Price: $0.47 |
| 59 | 145-7335 | SENSOR, GROUND SPEED Price: $166.69 |
| 61 | 1-303352 | WASHER-SPINDLE Price: $1.20 |
| 62 | 3290-378 | TIE-CABLE Price: $0.79 |
| 63 | 237-142 | SEAL-O-RING Price: $2.23 |
| 64 | 33003-00 | NUT-HF Price: $0.25 |
