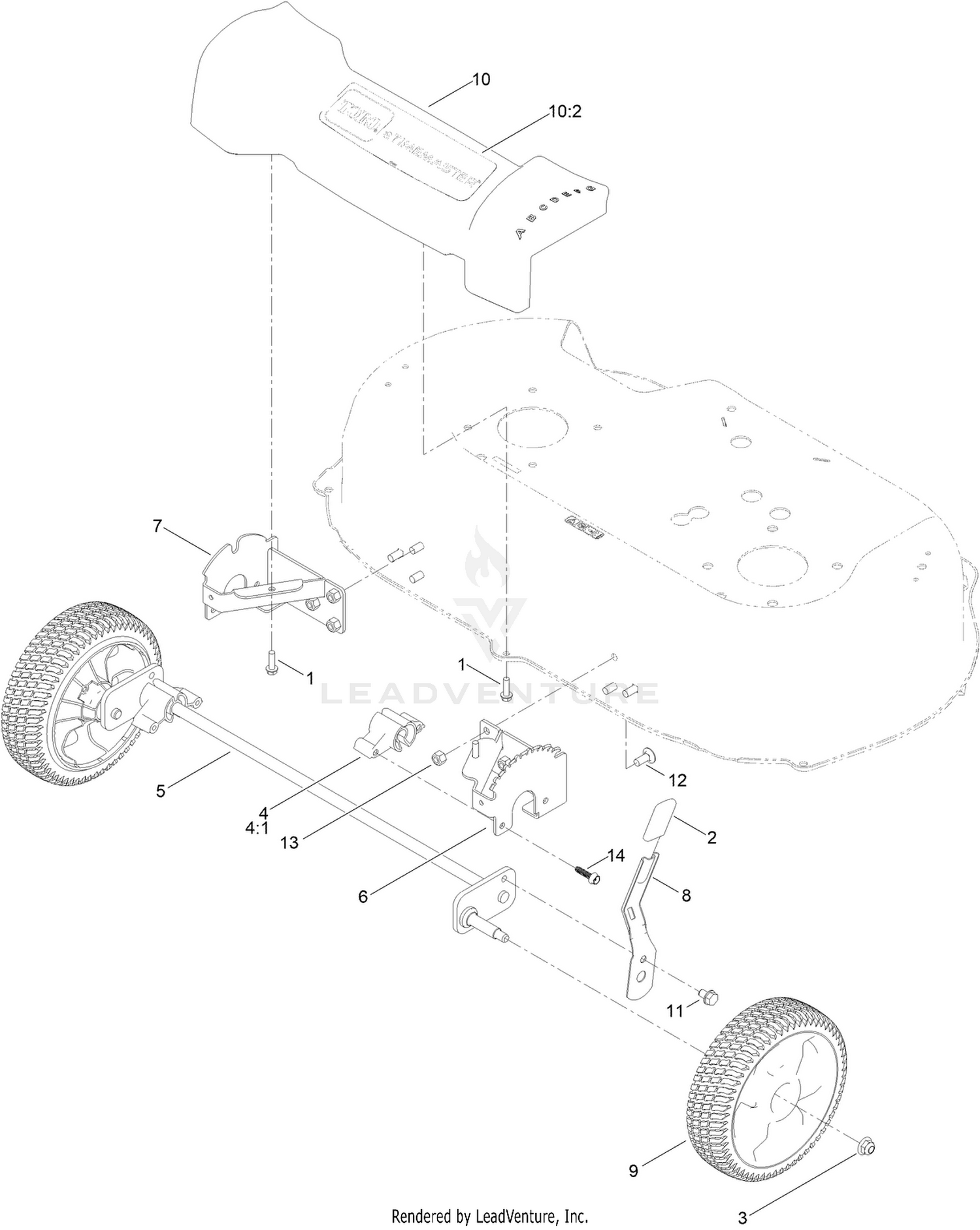

Front Wheel and Height-of-Cut Assembly
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 137-3099 | SCREW-PLASTITE, HWH Price: $0.79 |
| 2 | 120-9535 | GRIP-LEVER Price: $1.79 |
| 3 | 119-4042 | NUT-HF, NI Price: $0.69 |
| 4 | 147-0519 | BUSHING-PIVOT, FRONT Price: $4.09 |
| 5 | 139-1753 | FRONT AXLE ASM Price: $41.99 |
| 6 | 120-7037-03 | PLATE-HOC, LH Price: $23.99 |
| 7 | 120-7038-03 | PLATE-HOC, RH Price: $23.99 |
| 8 | 120-7043 | ARM-SPRING Price: $12.99 |
| 10 | 125-5027 | FRONT COVER ASM Price: $46.99 |
| 11 | 139-1727 | SCREW-HWH, THD ROLL Price: $1.49 |
| 12 | 137-3061 | BOLT-CARR Price: $0.59 |
| 13 | 119-4038 | NUT-HEX Price: $0.31 |
