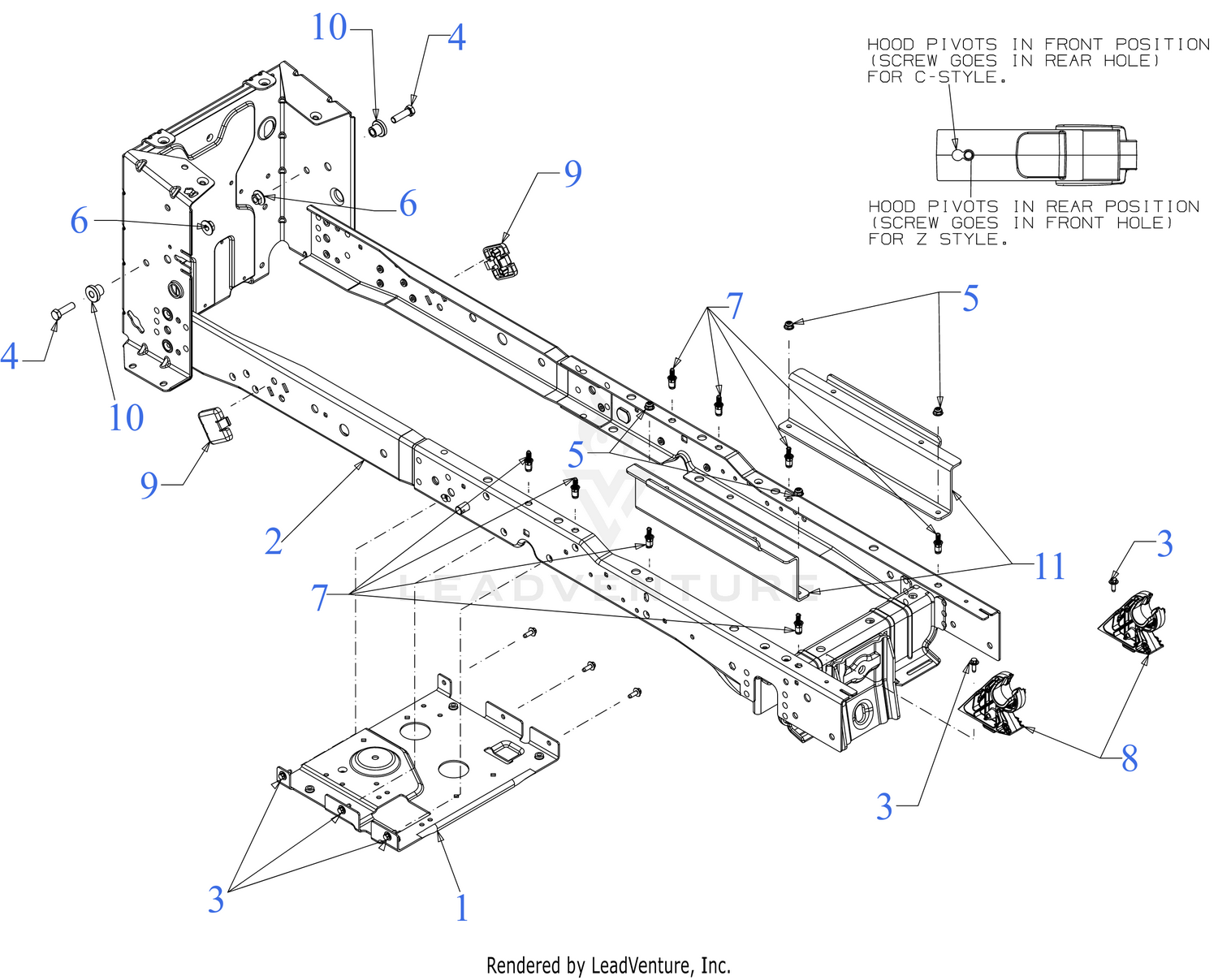

Frame
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 683E05453B | FRAME BRACE BRACKET (LOWER) This part replaces 683E05453A. Price: $36.90 |
| 3 | 710-06133 | SCREW M6-1 x .625 Price: $3.08 |
| 4 | 710-3005 | SCREW 3/8-16 x 1.25 GR5 Price: $3.61 |
| 5 | 712-04064 | FLANGE LOCK NUT Price: $3.64 |
| 6 | 712-04217 | FLANGE LOCK NUT Price: $3.75 |
| 7 | 728-05015 | RIVET-HEX STUD 1/4-20 FRM Price: $4.59 |
| 8 | 731-10069D | HOOD PIVOT BRACKET Price: $9.94 |
| 9 | 731-10281B | LIFT ROD WEAR PAD Price: $3.66 |
| 10 | 738-04058 | SHOULDER SPACER Price: $3.86 |
