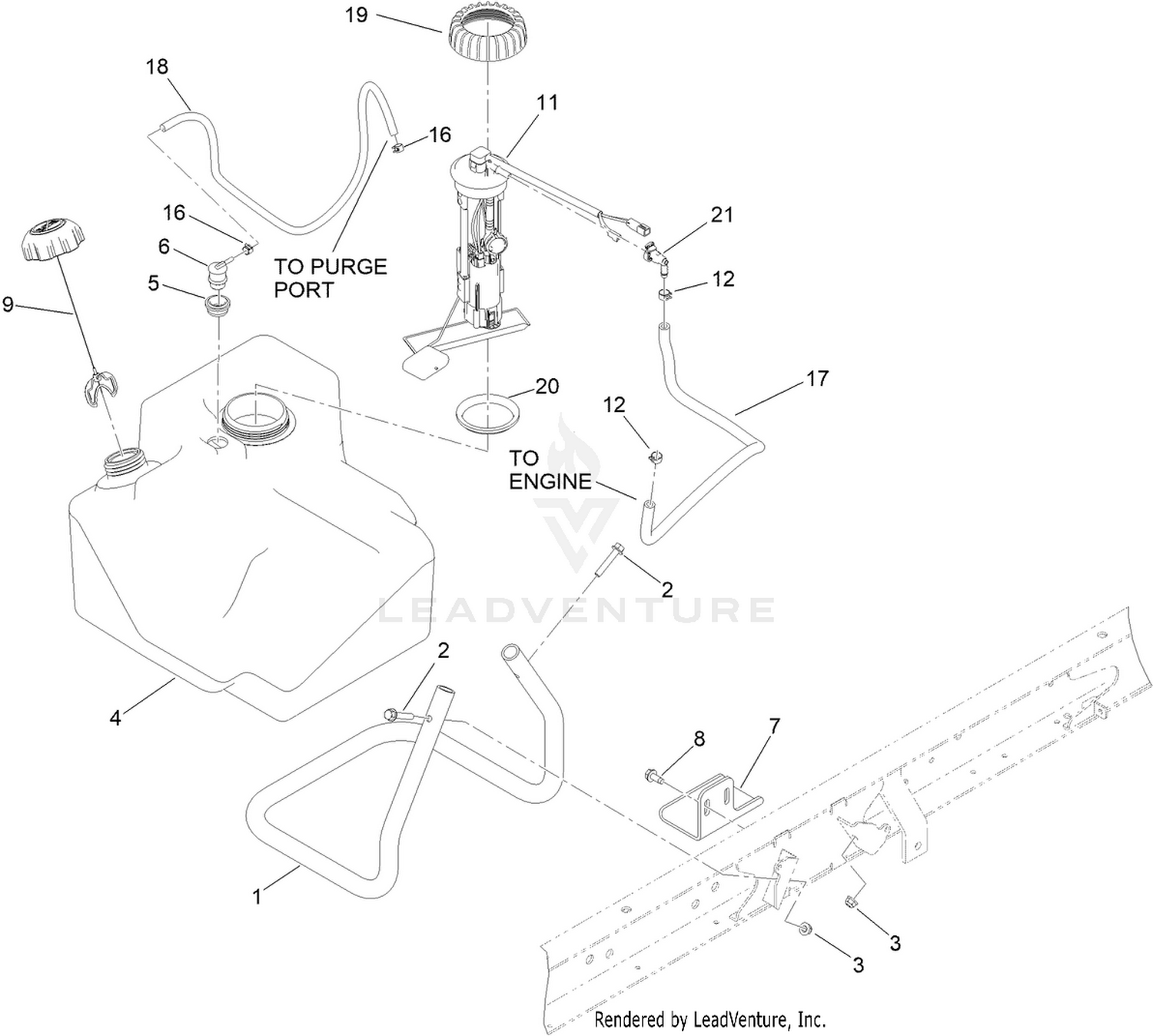

Fuel System Assembly
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 115-7767-0P | TUBE-SUPPORT Price: $97.81 |
| 2 | 94-5780 | SCREW-HWH Price: $7.49 |
| 3 | 104-8300 | NUT-HF, NI Price: $0.39 |
| 4 | 115-7700 | TANK-FUEL Price: $433.92 |
| 5 | 114-0284 | GROMMET Price: $2.39 |
| 6 | 114-0285 | VALVE-ROLLOVER Price: $15.40 |
| 7 | 114-8404 | PLATE-RETAINER Price: $20.98 |
| 8 | 32144-70 | SCREW-HWHTF Price: $1.99 |
| 9 | 137-4127 | CAP-FUEL Price: $22.05 |
| 11 | 144-2183 | PUMP-FUEL Price: $146.65 |
| 12 | 92-2379 | CLAMP-HOSE Price: $0.34 |
| 16 | 2412-146 | CLAMP-HOSE Price: $1.46 |
| 17 | 109-0287 | HOSE-FUEL Price: $48.29 |
| 18 | 110-3254 | HOSE-FUEL Price: $18.55 |
| 19 | 140-6245 | CAP-PUMP, FUEL Price: $16.59 |
| 20 | 140-6246 | GASKET-PUMP, FUEL, Price: $2.92 |
