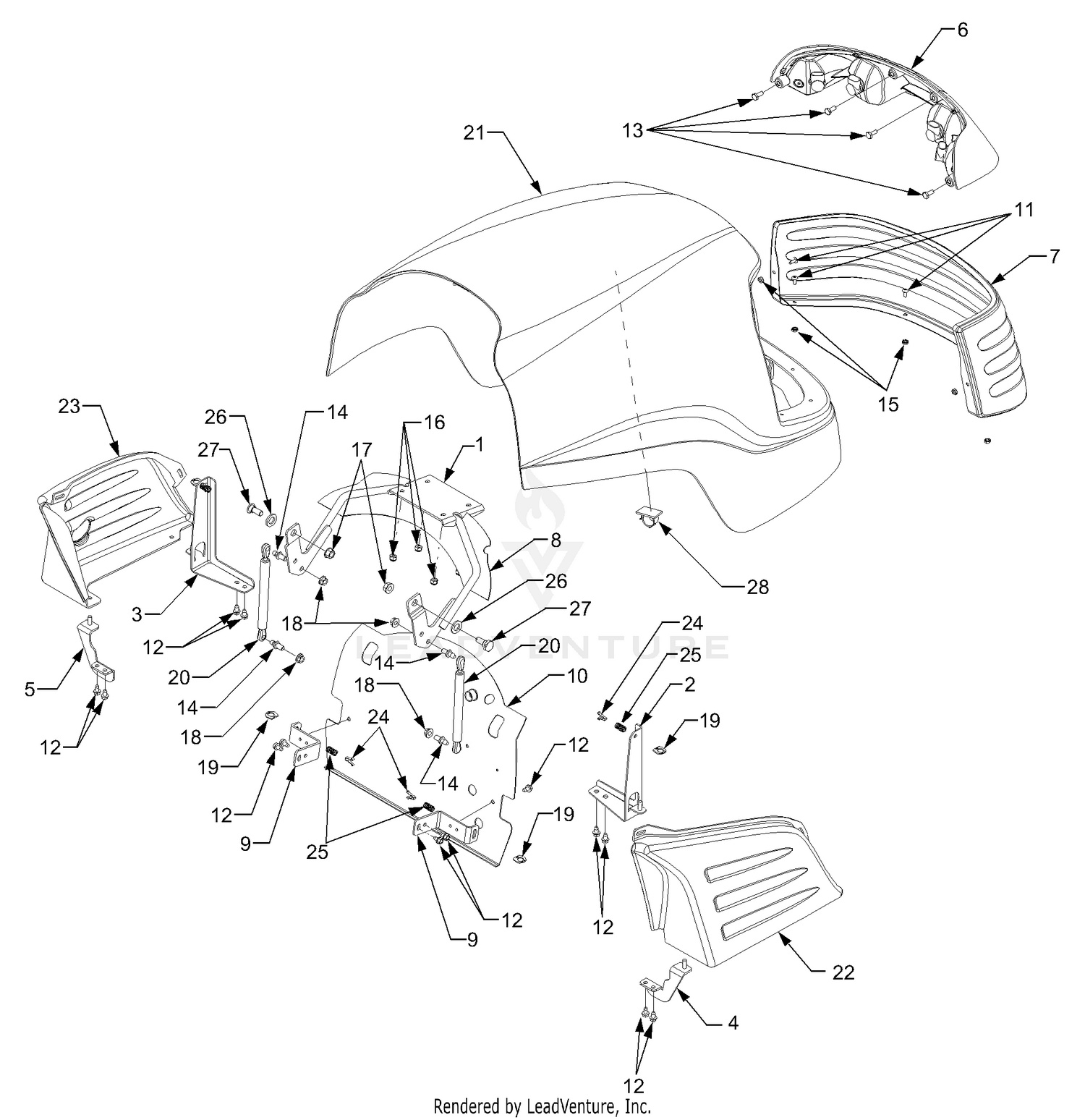

| Ref | Part Number | Description |
|---|
| 1 |
603-0719A-0637 |
HOOD HINGE ASSEMBLY Not Available This part replaces 603-0719-0637. Price: |
| 1 |
98-9567 |
COLLAR Price: $3.78 |
| 2 |
603-0784-0637 |
PANEL BRACKET ASSEMBLY (RH) (POWDER BLACK) Not Available Price: |
| 2 |
98-9369 |
CLIP-CIRCULAR, EXTERNAL Price: $0.70 |
| 3 |
603-0785-0637 |
PANEL BRACKET ASSEMBLY (LH) (POWDER BLACK) Not Available Price: |
| 3 |
98-9570 |
BEARING-MINIATURIZE Price: $13.60 |
| 4 |
603-0924-0637 |
BRACKET ASSEMBLY (POWDER BLACK) Not Available Price: |
| 4 |
98-9681 |
SPRING-GOVERNOR Price: $12.06 |
| 5 |
603-0925-0637 |
BRACKET ASSEMBLY (LH) PANEL (POWDER BLACK) Not Available Price: |
| 5 |
98-9645 |
SPRING-START Price: $11.13 |
| 6 |
107-9083 |
LEVER-THRUST This part replaces 98-9660. Price: $29.76 |
| 6 |
625-0052 |
HEADLIGHT ASSEMBLY-F Not Available Price: |
| 7 |
703-3394-0637 |
INTAKE SCREEN Not Available This part replaces 703-3394. Price: |
| 7 |
98-9692 |
ROLLER Price: $11.45 |
| 8 |
703-3712 |
SHIELD-UPPER HEAT Not Available Price: |
| 8 |
98-9568 |
COLLAR Price: $4.68 |
| 9 |
703-3764 |
BRACKET-PANEL MTG Not Available Price: |
| 9 |
98-9571 |
BEARING-MINIATURIZE Price: $8.24 |
| 10 |
703-3765 |
SHIELD-LOWER HEAT Not Available Price: |
| 10 |
98-9593 |
WASHER-PLAIN Price: $2.33 |
| 11 |
710-0473 |
Screw, Truss Hd, 10-24 x .5 Price: $3.90 |
| 11 |
98-9659 |
LEVER-FORK Price: $26.50 |
| 12 |
710-0599 |
Screw, Hex Wash Hd Tapp 1/4-20 x .5 Price: $3.86 |
| 12 |
98-9566 |
SHAFT-LEVER, FORK Price: $23.27 |
| 13 |
710-0751 |
SCREW 1/4-20 x .620 GR5 Price: $3.63 |
| 13 |
98-9682 |
GASKET Price: $0.95 |
| 14 |
130-8182 |
KIT-SHAFT COVER, FORK LEVER This part replaces 98-9569. Price: $13.53 |
| 14 |
710-3170 |
SCREW 5/16-18 x .56 Not Available Price: |
| 15 |
712-0272 |
Nut, Hex Sems, 10-24 Price: $3.58 |
| 15 |
98-9351 |
BOLT Price: $0.98 |
| 16 |
712-0324 |
Nut, Hex Nylon Insert Lock, 1/4-20 Price: $3.38 |
| 16 |
99-8380 |
FORK LEVER ASM Price: $172.25 |
| 17 |
912-0431 |
Nut, Hex Flange Lock, 3/8-16 This part replaces 7120431. Price: $4.29 |
| 18 |
712-3004A |
HEX FLANGE NUT Price: $3.49 |
| 19 |
726-3056 |
Latch, 1/4 Turn Panel Price: $6.20 |
| 20 |
727-3194 |
Cylinder, Gas Spring Price: $106.14 |
| 22 |
731-3278 |
SIDE PANEL (RH) Not Available Price: |
| 23 |
731-3279 |
SIDE PANEL (LH) Not Available Price: |
| 24 |
726P05561 |
PANEL LATCH This part replaces 732-0936. Price: $30.60 |
| 25 |
732-0937 |
Spring, Compression Price: $7.18 |
| 26 |
736-0272 |
FLAT WASHER .510 x .995 This part replaces 7360272. Price: $4.37 |
| 27 |
738-0380 |
Screw, Shoulder, .5 x .27 Lg 3/8-16 Price: $7.34 |
