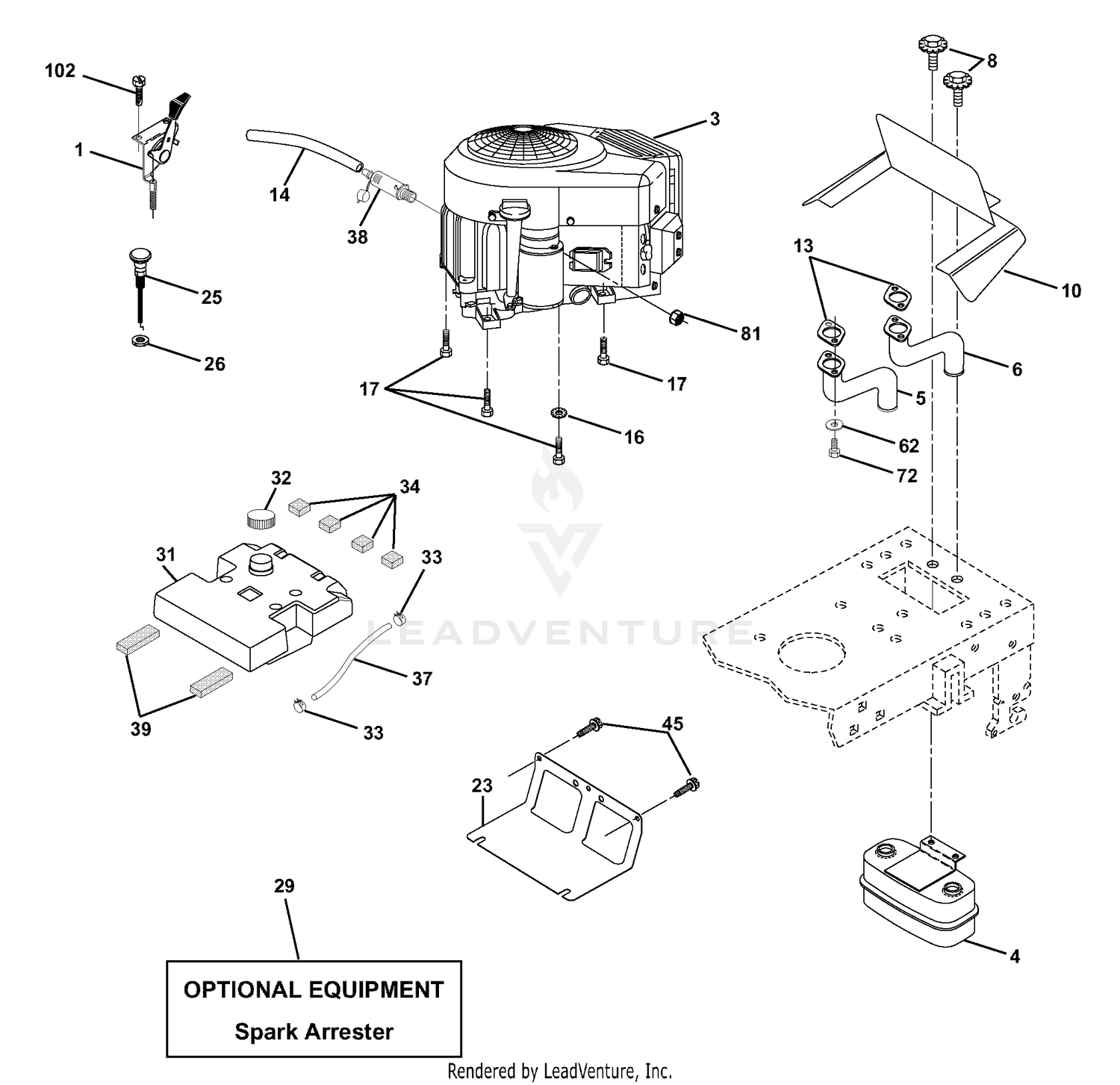

| Ref | Part Number | Description |
|---|
| 1 |
164067 |
Control Throttle Price: Call Us |
| 2 |
22-8370 |
SEAT-VALVE Price: $88.05 |
| 3 |
22-8500 |
O-RING Price: $18.87 |
| 4 |
105-7826 |
SPOOL Price: $312.56 |
| 4 |
149723 |
Muffler Asm Twin Lo-Tone Price: Call Us |
| 5 |
159955 |
Pipe Exhaust LH Intek Price: Call Us |
| 5 |
22-8380 |
RETAINER Price: $17.86 |
| 6 |
160589 |
Pipe Exhaust RH Intek Price: Call Us |
| 6 |
22-8400 |
SPACER Price: $42.41 |
| 7 |
22-8390 |
RETAINER Price: $56.56 |
| 8 |
171877 |
Bolt 5/16-18 UNC x 3/4 w/Sems Price: Call Us |
| 8 |
22-8410 |
SPRING Price: $17.61 |
| 9 |
22-8480 |
RING-SNAP Price: $49.87 |
| 10 |
162797 |
Shield Browning Intek II Price: Call Us |
| 10 |
22-8490 |
RING-SNAP Price: $6.51 |
| 11 |
22-8360 |
PIN Price: $43.02 |
| 12 |
22-8350 |
BALL Price: $12.28 |
| 13 |
105-7827 |
PLUG ASM Price: $78.38 |
| 13 |
165391 |
Muffler Gasket Price: Call Us |
| 14 |
148456 |
Tube Drain Oil Easy Price: Call Us |
| 15 |
106-8070 |
DETENT BARREL ASM Price: $128.27 |
| 16 |
105-7829 |
BALL-STEEL Price: $18.26 |
| 16 |
11050600 |
Washer Lock Ext Tooth 3/8 Price: Call Us |
| 17 |
105-7830 |
SPRING Price: $32.46 |
| 17 |
17490624 |
Screw Thdrol 3/8-16 x 1-1/2 Price: Call Us |
| 18 |
105-7831 |
SCREW-SET Price: $19.52 |
| 19 |
105-7832 |
STUD-DETENT Price: $50.21 |
| 23 |
169837 |
Shield Heat Price: Call Us |
| 25 |
164068 |
Choke Control Price: Call Us |
| 26 |
73920600 |
Nut, Keps 3/8-24 UNF Price: Call Us |
| 29 |
137180 |
Kit Spark Arrestor (Flat Scrn) Price: Call Us |
| 31 |
157103 |
Tank Fuel 3 50 Rear Price: Call Us |
| 32 |
140527 |
Cap Asm Fuel W/sym Vented Price: Call Us |
| 33 |
123487X |
Clamp Hose Black Price: Call Us |
| 34 |
106082X |
Pad, Spacer Price: Call Us |
| 37 |
8543R |
Line Fuel Price: Call Us |
| 38 |
148315 |
Plug Drain Oil Easy Price: Call Us |
| 39 |
109227X |
Pad, Idler Price: Call Us |
| 45 |
17000612 |
Screw Hexwsh Thdr 3/8-16 x 3/4 Price: Call Us |
| 62 |
10040500 |
Washer Lock 5/16 Price: Call Us |
| 72 |
71070512 |
Screw Hex Hd Cap 5/16-18 x 3/4 Price: Call Us |
| 81 |
73510400 |
Nut Keps Hex 1/4-20 UNC Price: Call Us |
