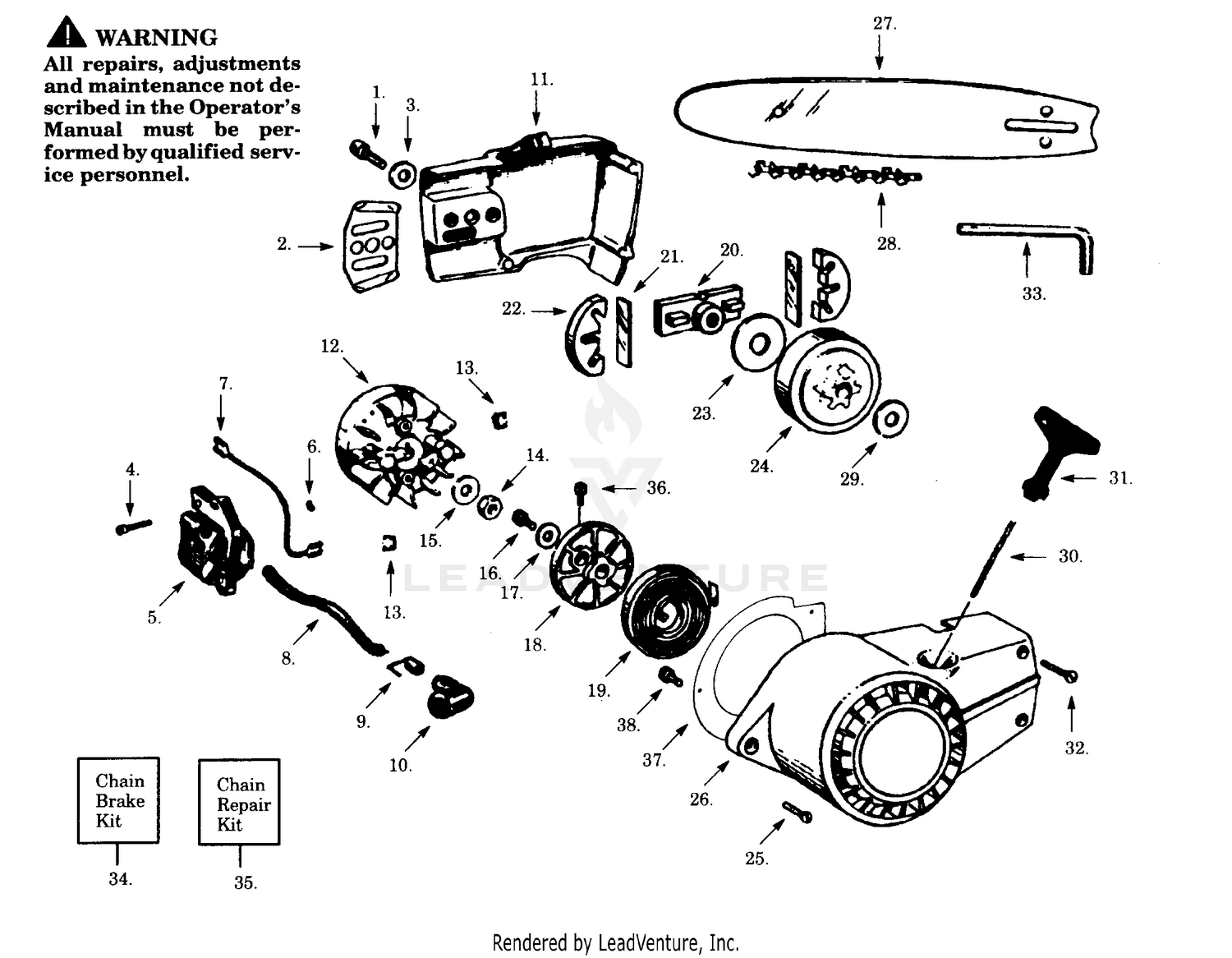

EXTERNAL POWER UNIT
Parts (64)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 108-9083 | PLATE-SIDE, RH Price: $328.36 |
| 1 | 530015183 | Screw Price: $1.99 |
| 2 | 108-9082 | PLATE-SIDE, LH Price: $328.36 |
| 2 | 530023864 | Guide Plate Price: $8.00 |
| 3 | 104-3396 | SCREW-HH Price: $0.75 |
| 3 | 530015149 | Washer Price: $1.99 |
| 4 | 530015816 | Screw This part replaces 530015128. Price: $1.99 |
| 4 | 99-8662 | TUBE-SPRING Price: $21.55 |
| 5 | 3218-5 | NUT-JAM Price: $0.27 |
| 6 | 530015126 | Flywheel Key Price: $1.99 |
| 6 | 87-7270 | WASHER-THRUST Price: $0.89 |
| 7 | 104-8301 | NUT-HF, NI Price: $1.09 |
| 7 | 530039168 | Lead Stop Switch Price: $1.99 |
| 8 | 3290-357 | NUT-HHF, WHIZ Price: $0.61 |
| 8 | 530039026 | High Tension Lead (Bulk No. 8141) Price: $3.33 |
| 9 | 110-4079 | SPRING-COMPRESSION Price: $13.57 |
| 9 | 530039071 | Connector Spring Plug Price: $0.40 |
| 10 | 530039097 | Spark Plug Boot Price: $3.99 |
| 11 | 530011198 | Bar Clamp Price: $19.68 |
| 12 | 110-4069 | BRACKET Price: $5.57 |
| 12 | 530047198 | Flywheel Ass'y. Price: $23.99 |
| 13 | 115-2007 | ROD-SPRING Price: $34.97 |
| 13 | 530047198 | Starter Dog Spring Price: $23.99 |
| 14 | 530626605 | Nut Price: $1.99 |
| 14 | 92-2762 | PIN-HAIR Price: $1.09 |
| 15 | 119-4162 | SCREW-CARR This part replaces 3231-25. Price: $1.73 |
| 15 | 530015127 | Washer Price: $1.99 |
| 16 | 530001724 | Screw Price: $1.99 |
| 17 | 110-4058 | BRACKET-CHAIN Price: $32.43 |
| 17 | 530015123 | Washer Price: $1.99 |
| 18 | 107-7400 | PIN-LYNCH Price: $9.56 |
| 18 | 530069289 | Starter Pulley Price: $29.99 |
| 19 | 107-3258 | FRAME Price: $331.61 |
| 19 | 545008007 | SPRING-STARTER This part replaces 530042023. Price: $5.23 |
| 20 | 107-2979 | BOLT-SHOULDER Price: $3.94 |
| 20 | 530022079 | Clutch Spider Price: $14.99 |
| 21 | 3234-19 | SCREW-HHF Price: $1.73 |
| 21 | 530023381 | Clutch Springs Price: Call Us |
| 22 | 530023379 | Clutch Shoes Price: $19.99 |
| 22 | 67-9410 | WASHER Price: $2.04 |
| 23 | 108-4279 | SPACER-FRAME Price: $8.34 |
| 23 | 530023382 | Clutch Plate Price: $1.99 |
| 24 | 108-4284 | TUBE-SUPPORT Price: $60.29 |
| 24 | 530069301 | Drum & Sprocket Ass'y. Price: Call Us |
| 25 | 110-9713 | CARRIER FRAME ASM Price: $642.24 |
| 25 | 530015074 | Screw Price: $1.99 |
| 26 | 3256-24 | WASHER-FLAT Price: $0.28 |
| 26 | 530011243 | Fan Housing Price: $54.99 |
| 27 | 323-7 | SCREW-HH Price: $0.65 |
| 27 | 952044368 | BAR 14" .050 3/8 041 52DL Price: $14.99 |
| 28 | 114-3972 | CHAIN Price: $8.62 |
| 28 | 581562101 | ACCY CHN 14" 52DL 3/8 .050 This part replaces 952051209. Price: $17.99 |
| 28 | 581562201 | ACCY P/PP CHN 16" 56DL 3/8 This part replaces 952051211. Price: $19.99 |
| 29 | 112-6564 | BRACKET-CHAIN Price: $47.71 |
| 29 | 530023519 | Clutch Washer Price: $1.99 |
| 30 | 530069232 | Rope Kit Price: $3.99 |
| 31 | 530056402 | Handle-Starter This part replaces 530037485. Price: $2.99 |
| 32 | 530015122 | Screw Price: $0.12 |
| 33 | 530031017 | Bar Wrench Price: $1.99 |
| 34 | 952069259 | Chain Brake Kit Price: $44.99 |
| 35 | 530-052073 | Chain Repair Kit Price: Call Us |
| 36 | 530016080 | Screw Price: $1.99 |
| 37 | 530011243 | Air Inlet Baffle Price: $54.99 |
| 38 | 530015241 | Screw Price: $1.99 |
