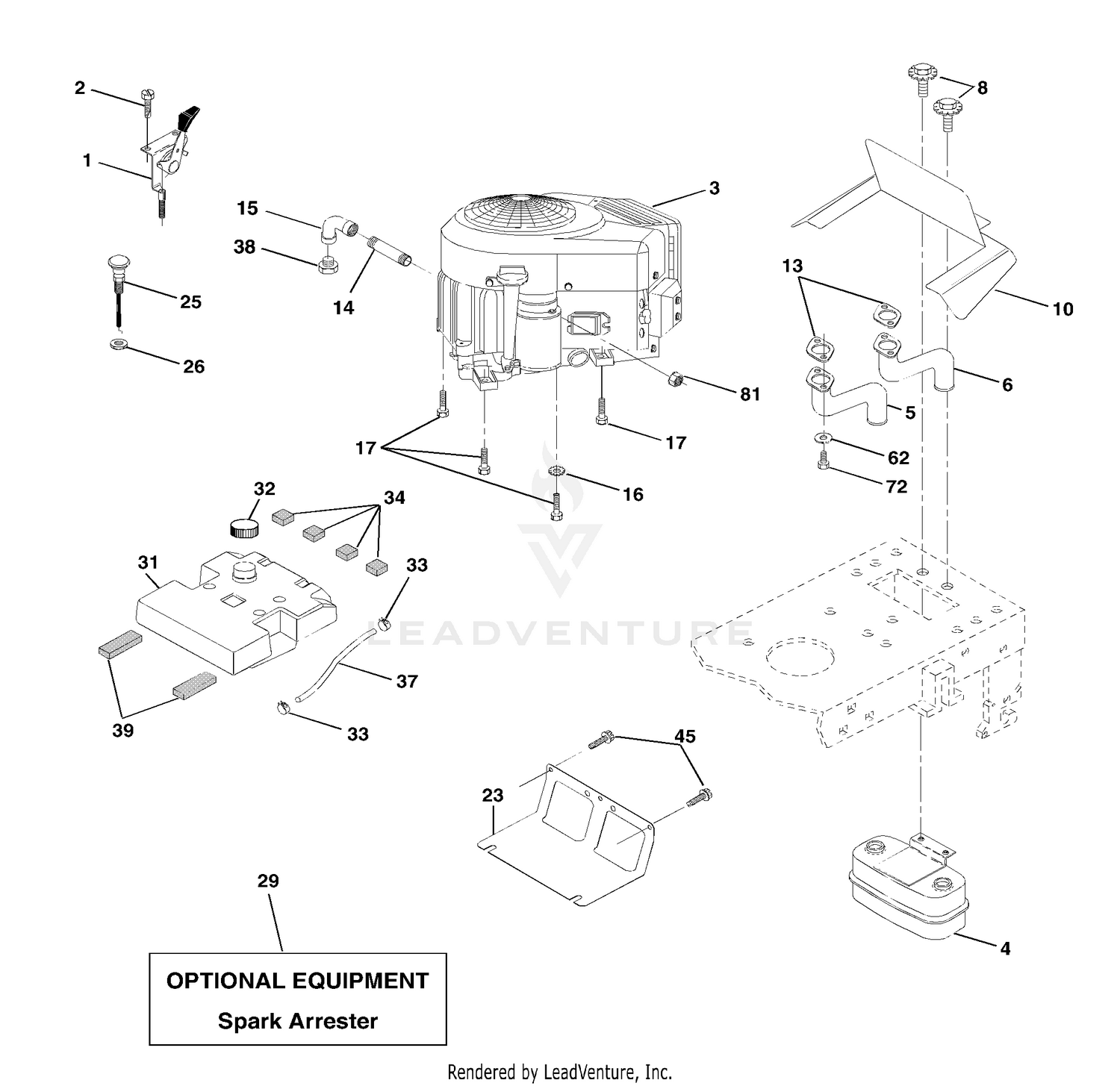

| Ref | Part Number | Description |
|---|
| 1 |
175437X428 |
Control Throttle Price: Call Us |
| 1 |
98-1471 |
WHEEL-STEERING Price: $145.99 |
| 2 |
107-2562 |
NUT-HEX This part replaces 94-9952. Price: $19.95 |
| 2 |
164863 |
Screw Hw Hd Hi-Lo #13-16 x 3/4 Price: Call Us |
| 3 |
94-9951 |
COLUMN-STEERING Price: $366.29 |
| 4 |
149723 |
Muffler Asm Twin Lo-Tone Price: Call Us |
| 4 |
21-9260 |
COVER-DUST Price: $8.19 |
| 5 |
159955 |
Pipe Exhaust LH Intek Price: Call Us |
| 5 |
94-3059 |
HYD TUBE ASM Price: $104.59 |
| 6 |
104-3733 |
FRONT IN STRAIGHT TUBE ASM Price: $190.41 |
| 6 |
160589 |
Pipe Exhaust RH Intek Price: Call Us |
| 7 |
104-3737 |
FRONT OUT STRAIGHT TUBE ASM Price: $107.77 |
| 8 |
171877 |
Bolt 5/16-18 UNC x 3/4 w/Sems Price: Call Us |
| 8 |
94-3060 |
HYD TUBE ASM Price: $108.71 |
| 10 |
130-7945 |
VALVE-STEERING CONTROL This part replaces 99-8959. Price: $1,130.87 |
| 10 |
162797 |
Shield Browning Intek II Price: Call Us |
| 11 |
75-2810 |
BRACKET-COLUMN, STEERING Price: $11.01 |
| 12 |
94-3071 |
HYD TUBE ASM Price: $105.45 |
| 13 |
165391 |
Muffler Gasket Price: Call Us |
| 13 |
3234-7 |
SCREW-HHF Price: $1.99 |
| 14 |
13280336 |
Nipple Pipe 3/8 NPT x 4-1/2" Price: Call Us |
| 14 |
340-2 |
FITTING-STRAIGHT Price: $11.43 |
| 15 |
13200300 |
Elbow STD 90 Degree 3/8-18 NPT Price: Call Us |
| 15 |
98-1459 |
DECAL Price: $3.93 |
| 16 |
11050600 |
Washer Lock Ext Tooth 3/8 Price: Call Us |
| 17 |
17060624 |
Screw Thdrol 3/8-16 x 1-1/2 Price: Call Us |
| 23 |
169837 |
Shield Heat Price: Call Us |
| 25 |
175440X428 |
Choke Control Price: Call Us |
| 26 |
73920600 |
Nut, Keps 3/8-24 UNF Price: Call Us |
| 29 |
137180 |
Kit Spark Arrestor (Flat Scrn) Price: Call Us |
| 31 |
157103 |
Tank Fuel 3 50 Rear Price: Call Us |
| 32 |
140527 |
Cap Asm Fuel W/sym Vented Price: Call Us |
| 33 |
123487X |
Clamp Hose Black Price: Call Us |
| 34 |
106082X |
Pad, Spacer Price: Call Us |
| 37 |
8543R |
Line Fuel Price: Call Us |
| 39 |
109227X |
Pad, Idler Price: Call Us |
| 45 |
17000612 |
Screw Hexwsh Thdr 3/8-16 x 3/4 Price: Call Us |
| 62 |
10040500 |
Washer Lock 5/16 Price: Call Us |
| 72 |
71070512 |
Screw Hex Hd Cap 5/16-18 x 3/4 Price: Call Us |
