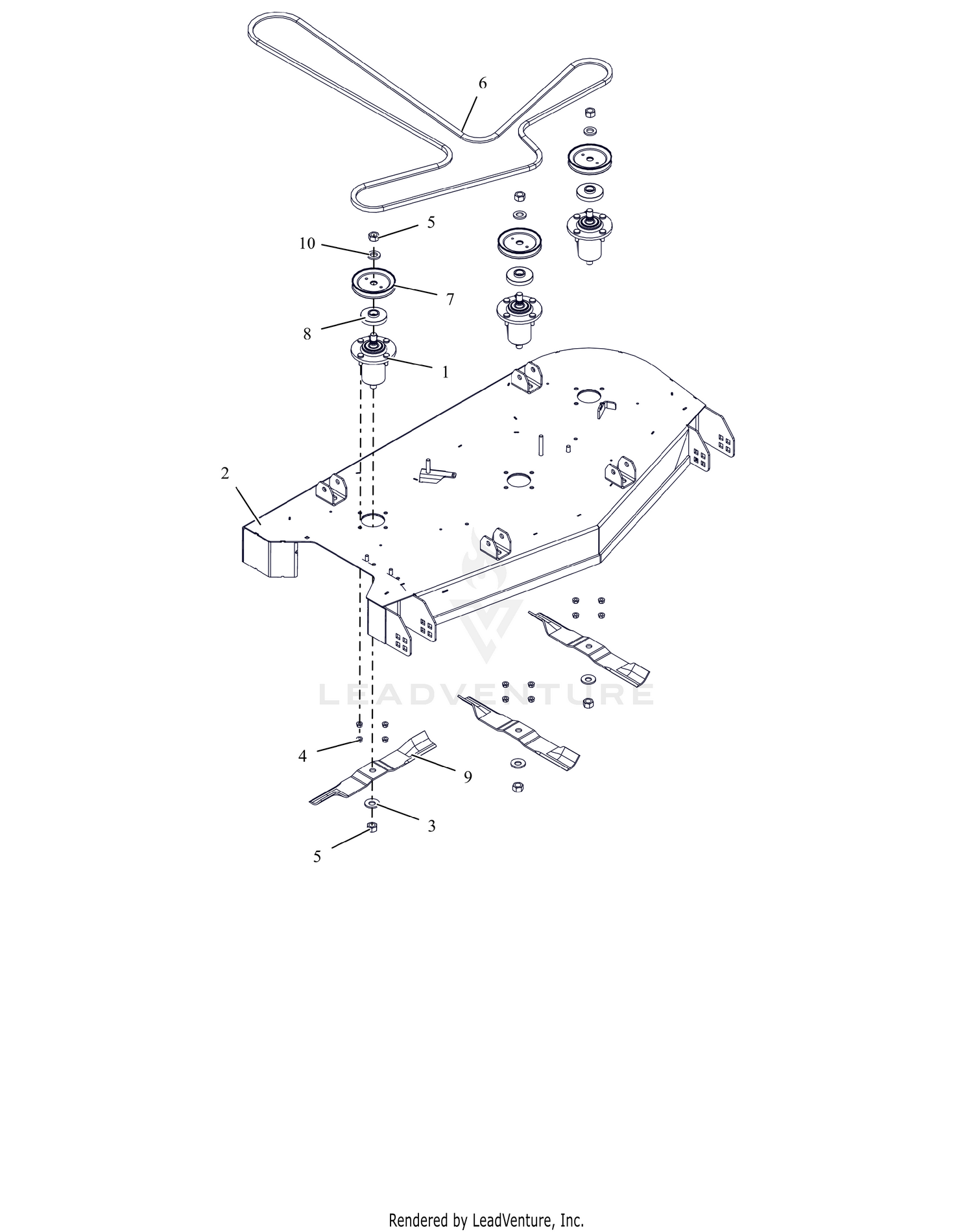

Deck, Belt, Blades, and Spindles - 48"
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 30138800 | ASM, ALUMINUM SPINDLE SUB Price: $87.95 |
| 2 | 51800200 | KIT,ARIENS DECK 48" WITH DECALS Price: $591.95 |
| 3 | 06445700 | WSHR-BLVL .669X1.535X.138 Price: $4.45 |
| 4 | 06500840 | NUT,LK-CTR-FLG .31-18 GF ZCC Price: $0.95 |
| 5 | 06500920 | NUT-STD .625-18 ZCC Price: $1.95 |
| 6 | 07200920 | V-BELT, HA SECTION Price: $77.45 |
| 7 | 07351601 | PULLEY, V-4.50 ODX.625 SPLINE ID Price: $15.45 |
| 8 | 09482000 | SHIELD, DUST Price: $8.45 |
| 9 | 09659000 | BLADE, MOWER 16.50" Price: $21.95 |
