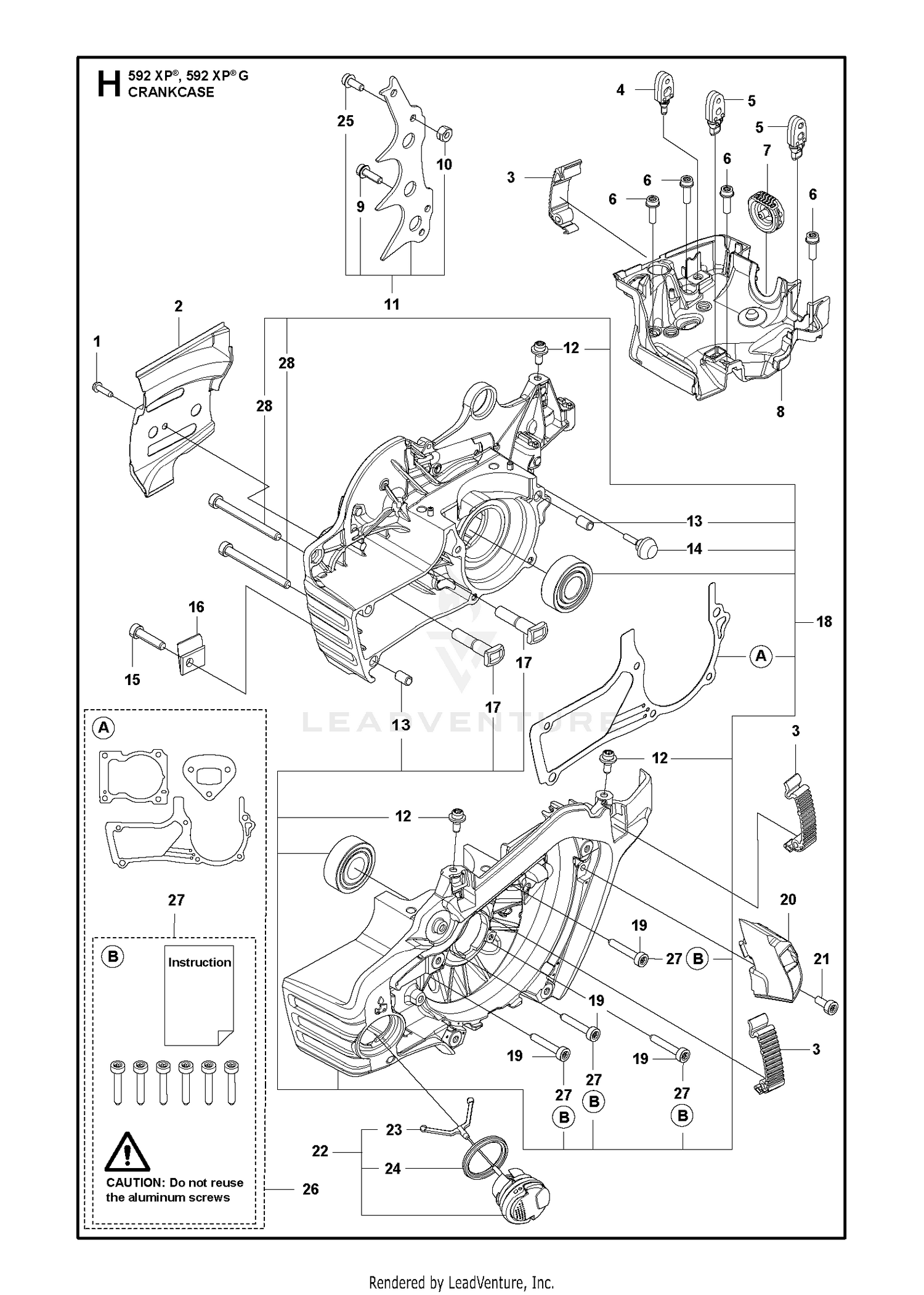

CRANKCASE
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 526221801 | SCREW Price: $2.99 |
| 2 | 575616301 | CHAIN GUIDE PLATE BAR MOUNT Price: $9.99 |
| 4 | 597909701 | DAMPNER Price: $5.99 |
| 5 | 595013901 | DAMPER INLET SYSTEM Price: $4.99 |
| 7 | 595845301 | GROMMET THROTTLE WIRE Price: $3.99 |
| 8 | 599780901 | CARBURETTOR AREA BASE ASSY Price: $22.99 |
| 9 | 575532001 | SCREW KIT 4 PACK This part replaces 525755105. Price: $4.99 |
| 10 | 503222401 | NUT Price: $1.99 |
| 11 | 529536901 | SPIKE KIT INNER NON - WRAP H58 Price: $11.99 |
| 12 | 525824401 | SCREW ITXSCM WASHER M5X12 T27 Price: $2.99 |
| 13 | 593806001 | GUIDE BUSHING Price: $4.99 |
| 14 | 503846101 | BUFFER Price: $4.99 |
| 15 | 544218401 | SCREW Price: $3.99 |
| 16 | 537377902 | CHAIN CATCHER Price: $6.99 |
| 17 | 537051301 | BOLT Price: $6.99 |
| 18 | 597960803 | CRANKCASE KIT 90CC SPARE PARTS This part replaces 597960801. Price: $329.99 |
| 20 | 593235101 | AIR NOZZLE Price: $4.99 |
| 21 | 574353505 | SCREW ITXSCM Price: $3.99 |
| 22 | 522620003 | TANK CAP ASSY Price: $8.99 |
| 23 | 503578901 | TANK LOCK Price: $4.99 |
| 24 | 589241101 | SEALING Price: $4.99 |
| 25 | 525755101 | SCREW Price: $3.99 |
| 28 | 503215375 | SCREWS Price: $3.99 |
