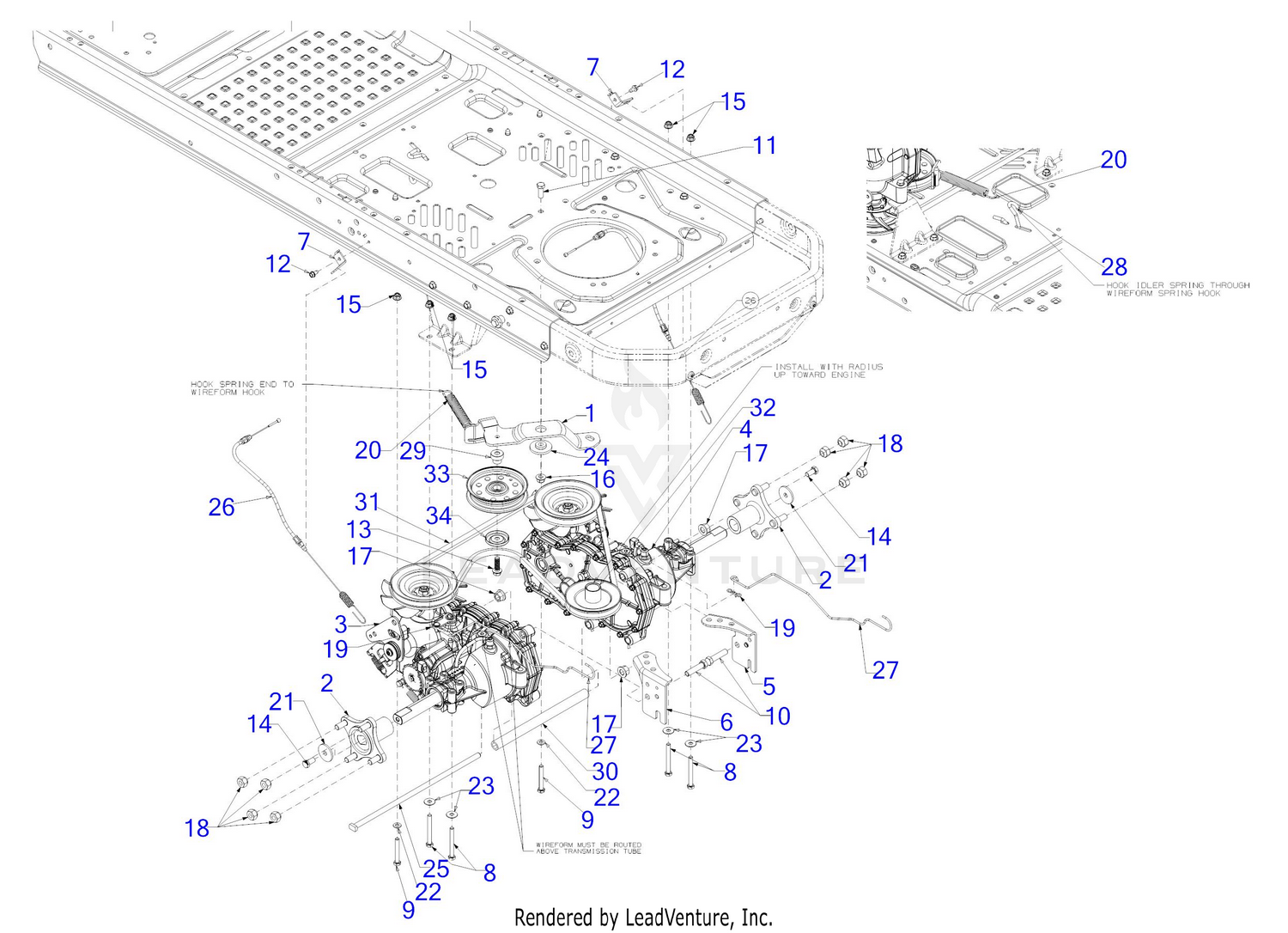

| Ref | Part Number | Description |
|---|
| 1 |
603Z05256 |
IDLER BRACKET ASSEMBLY This part replaces 903-05256. Price: $36.94 |
| 2 |
918-04317 |
WHEEL HUB ASSEMBLY Price: $102.24 |
| 3 |
918-05128B |
HYDRO TRANSMISSION ASSEMBLY (LH) This part replaces 918-05128A. Price: $1,288.60 |
| 4 |
918-05129B |
HYDRO TRANSMISSION ASSEMBLY (RH) This part replaces 918-05129A. Price: $1,288.60 |
| 5 |
703-08614A-0637 |
TRANSMISSION MOUNTING BRACKET (RH) Price: $10.31 |
| 6 |
703-08615A-0637 |
TRANSMISSION MOUNTING BRACKET (LH) Price: $10.31 |
| 8 |
710-0176 |
HEX SCREW 5/16-18 x 2.75 Price: $3.89 |
| 9 |
710-0395 |
HEX SCREW 5/16-18 x 2.25 GR5 Price: $4.08 |
| 10 |
710-04092 |
SCREW 7/16-20 x 1.75 GR 5 Price: $3.70 |
| 11 |
710-0514 |
SCREW 3/8-16 x 1 GR5 Price: $3.78 |
| 12 |
710-0599 |
SCREW 1/4-20 X.500 Price: $3.86 |
| 13 |
710-1315 |
SCREW 3/8-16 X1.250 Price: $3.90 |
| 14 |
710-3119 |
SCREW 3/8-16 x .75 GR 5 Price: $5.91 |
| 15 |
712-04063 |
FLANGE LOCK NUT 5/16-18 Price: $3.56 |
| 16 |
712-04065 |
NUT Price: $3.68 |
| 17 |
712-0459 |
FLANGE LOCK NUT Price: $4.39 |
| 18 |
712-3050 |
LUG NUT 7/16-14 Price: $9.17 |
| 19 |
714-04040 |
BOW TIE COTTER PIN 1/4-5/16 Price: $1.28 |
| 20 |
732-05559 |
EXTENSION SPRING .75 DIA x 5.87 This part replaces 732-05388. Price: $12.77 |
| 21 |
736-0227 |
WASHER:FLAT: .390 x 1.50 x .134 This part replaces 936-0227. Price: $5.78 |
| 22 |
736-0264 |
Flat Washer.330 ID x.630 OD This part replaces 936-0264. Price: $5.99 |
| 23 |
736-0371 |
FLAT WASHER Price: $3.94 |
| 24 |
738-04162C |
SHOULDER SPACER Price: $12.76 |
| 25 |
738-04192B |
SUPPORT TUBE ROD Price: $18.87 |
| 26 |
946-05008 |
PARK BRAK CABLE Price: $31.48 |
| 27 |
747-05657B |
HYDRO BYPASS ROD Price: $13.12 |
| 28 |
747-06074 |
IDLER SPRING HOOK This part replaces 747-06074A. Price: $20.19 |
| 29 |
748-05029A |
SHOULDER SPACER Price: $4.19 |
| 30 |
750-04561A |
SUPPORT TUBE Price: $23.66 |
| 31 |
954-04317A |
TRANSMISSION DRIVE BELT A x 67 Price: $46.63 |
| 32 |
756-04494C |
TRANSMISSION DRIVE PULLEY This part replaces 756-04494B. Price: $30.97 |
| 33 |
756-05042 |
IDLER PULLEY 4.25 DIA Price: $25.54 |
