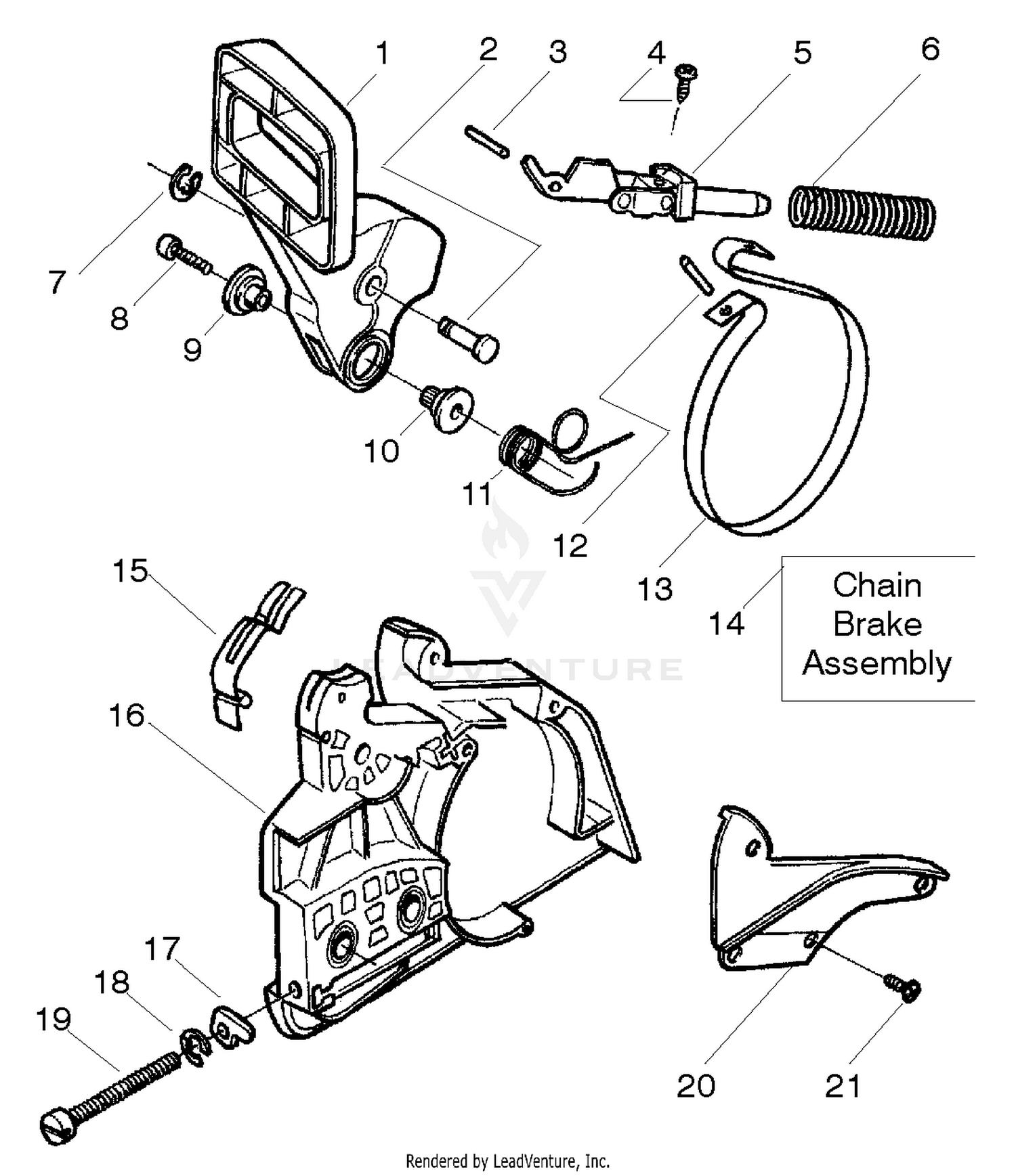

| Ref | Part Number | Description |
|---|
| 1 |
530071348 |
HANDGUARD Price: $21.99 |
| 1 |
99-8301 |
NUT Price: $8.64 |
| 2 |
530029879 |
PIVOT PIN Price: $3.99 |
| 2 |
99-8307 |
WASHER-PLAIN Price: $8.84 |
| 3 |
530015915 |
PIN Price: $3.99 |
| 4 |
574780301 |
SCREW M3.63-1.34 X 8MM This part replaces 530015911. Price: $3.99 |
| 4 |
99-8302 |
WASHER-ADJUSTING Price: $7.16 |
| 5 |
530054741 |
FRONT LINK ASSY Price: $4.99 |
| 5 |
99-8303 |
SPRING-NOZZLE Price: $11.49 |
| 6 |
545137301 |
COMPRESSION SPRING This part replaces 530016237. Price: $6.99 |
| 6 |
99-8305 |
ROD-PUSH Price: $60.67 |
| 7 |
530024419 |
E-RING Price: $4.99 |
| 7 |
99-8304 |
SPACER-DISTANCE Price: $29.26 |
| 8 |
530016384 |
SCREW Price: $3.99 |
| 8 |
99-8308 |
PIECE-NOZZLE Price: $90.57 |
| 9 |
530056531 |
JOURNAL, RIGHT Price: $3.99 |
| 9 |
99-8306 |
NUT-NOZZLE Price: $34.65 |
| 10 |
530029881 |
SHAFT PIVOT Price: $2.99 |
| 10 |
99-8309 |
ADJUSTING WASHER ASM Price: $56.19 |
| 10 |
99-8312 |
WASHER-ADJUST (0.30MM) Price: $2.74 |
| 11 |
530015910 |
SPRING,BRK HDL 36/41 Price: $4.99 |
| 12 |
530015913 |
PIN Price: $2.99 |
| 13 |
545137401 |
BRAKE BAND This part replaces 530052232. Price: $5.99 |
| 14 |
530054802 |
CHAIN BRAKE ASM. Price: $39.99 |
| 15 |
530029878 |
SPRING-POSITION Price: $4.99 |
| 16 |
530049483 |
CLUTCH COVER Price: $14.99 |
| 17 |
530015826 |
ADJUST PIN,BAR 36/41 Price: $3.99 |
| 18 |
530038593 |
RETAINER Price: $3.99 |
| 19 |
530016110 |
BAR ADJUSTING SCREW Price: $3.99 |
| 20 |
530053035 |
CHAIN BRAKE COVER Price: $2.99 |
| 21 |
574780301 |
SCREW M3.63-1.34 X 8MM This part replaces 530015911. Price: $3.99 |
