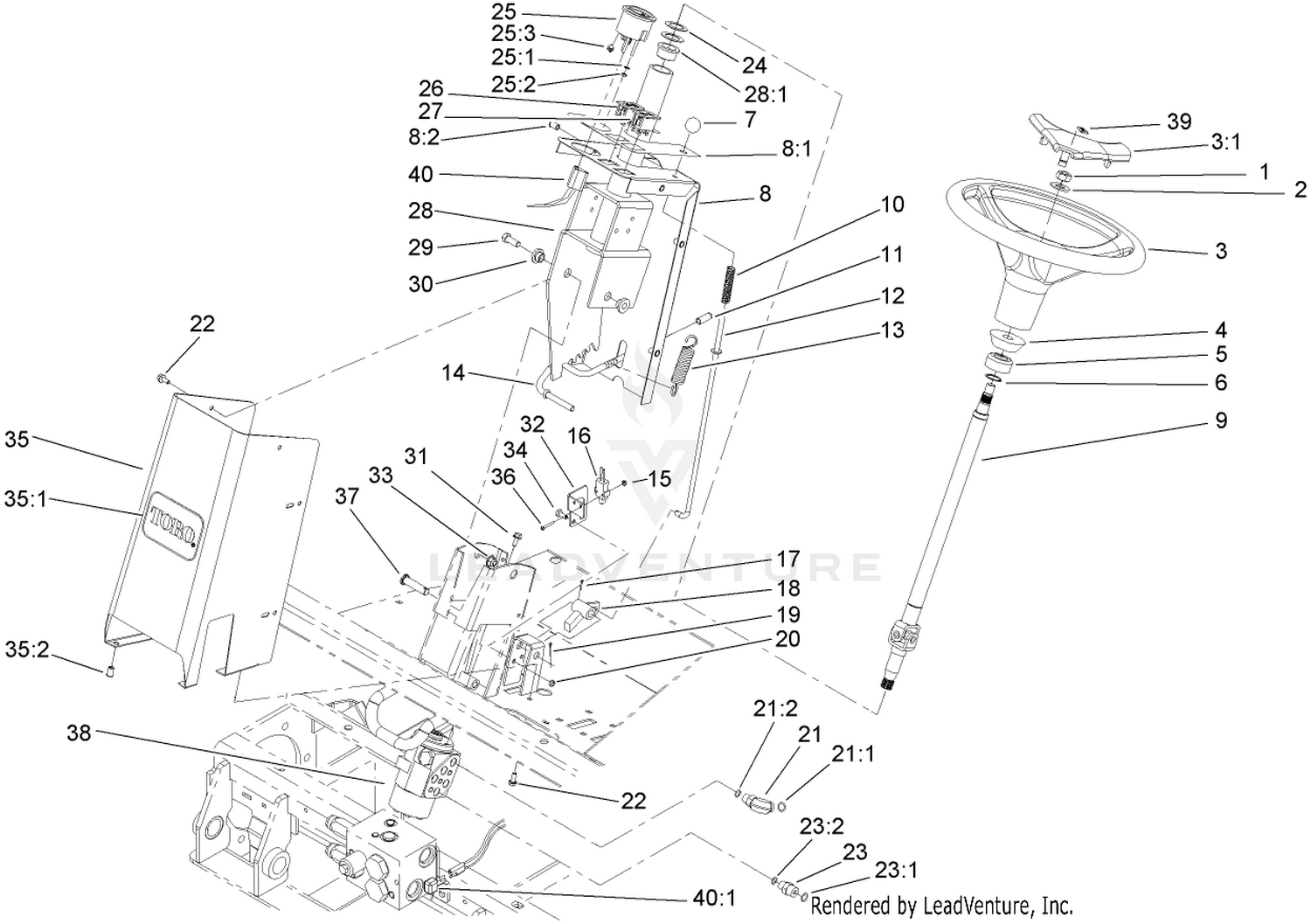

| Ref | Part Number | Description |
|---|
| 1 |
108-9342 |
NUT-HEX This part replaces 93-5590. Price: $3.49 |
| 2 |
3256-27 |
WASHER-FLAT Price: $0.47 |
| 3 |
98-1471 |
WHEEL-STEERING Price: $145.99 |
| 4 |
93-5429 |
COLLAR-FOAM Price: $36.18 |
| 5 |
93-5439 |
SEAL-STEERING Price: $9.64 |
| 6 |
32151-29 |
RING-RETAINING Price: $3.59 |
| 7 |
93-5312 |
KNOB Price: $9.21 |
| 8 |
104-2274 |
TOWER COVER ASM Price: $188.63 |
| 9 |
93-5428 |
SHAFT-STEERING Price: $205.06 |
| 10 |
71-8310 |
SPRING-COMPRESSION Price: $4.59 |
| 11 |
93-5446 |
CAP-VINYL Price: $1.41 |
| 12 |
104-8308 |
ROD ASM Price: $108.90 |
| 13 |
93-5985 |
SPRING-EXTENSION Price: $17.35 |
| 14 |
93-5989 |
ROD-TILT Price: $72.02 |
| 15 |
3296-9 |
NUT-HEX Price: $0.25 |
| 16 |
99-3410 |
SWITCH Price: $95.63 |
| 17 |
3272-5 |
PIN-COTTER Price: $1.39 |
| 18 |
114-2718 |
PAWL-BRAKE This part replaces 93-5276-03. Price: $32.10 |
| 19 |
3272-6 |
PIN-COTTER Price: $0.25 |
| 20 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 21 |
340-77 |
FITTING-ELBOW, 90 DEG Price: $24.95 |
| 22 |
3234-33 |
SCREW-HHF Price: $0.79 |
| 23 |
340-2 |
FITTING-STRAIGHT Price: $11.43 |
| 24 |
9547 |
WASHER-THRUST Price: $5.69 |
| 25 |
98-9308 |
GAUGE-TEMPERATURE Price: $112.90 |
| 26 |
100-8070 |
LAMP-WARNING Price: $38.50 |
| 27 |
100-8071 |
LAMP-WARNING Price: $38.50 |
| 28 |
104-8332 |
STEERING COLUMN ASM Price: $283.23 |
| 29 |
323-6 |
SCREW-HH Price: $0.66 |
| 30 |
93-5988 |
HUB-PIVOT Price: $29.62 |
| 31 |
33103-016 |
SCREW-HHF Price: $5.18 |
| 32 |
104-0128 |
BRACKET-SWITCH Price: $29.90 |
| 33 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 34 |
321-3 |
SCREW-HH Price: $0.28 |
| 35 |
100-3038 |
STEERING TOWER ASM Price: $305.53 |
| 36 |
3250-35 |
SCREW-PPH Price: $3.24 |
| 37 |
283-5 |
PIN-CLEVIS Price: $11.99 |
| 38 |
130-7944 |
VALVE-CONTROL, STEERING This part replaces 114-5074. Price: $1,093.30 |
| 39 |
98-1459 |
DECAL Price: $3.93 |
| 40 |
105-7476 |
HARNESS-WIRE, FRONT Price: $298.91 |
