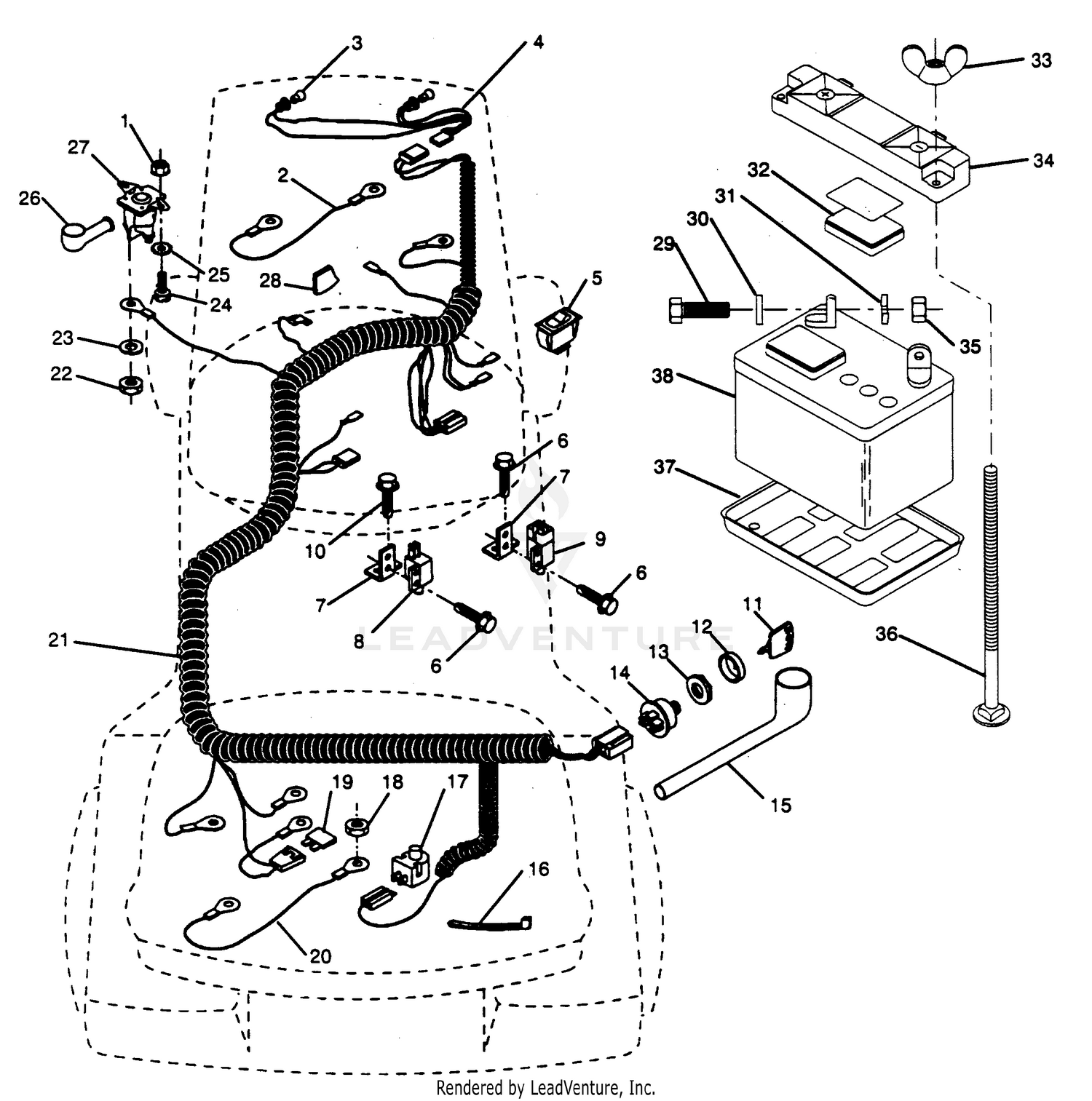

| Ref | Part Number | Description |
|---|
| 1 |
3234-11 |
SCREW-HHF Price: $1.23 |
| 1 |
873680400 |
NUT.CROWNLOCK.1/4 This part replaces 873510400. Price: $2.99 |
| 2 |
532105002 |
Assembly, Cable (AYP part number) Price: $7.00 |
| 3 |
237-68 |
O-RING Price: $3.22 |
| 3 |
532004152 |
LIGHTBULB This part replaces 532124893. Price: $2.99 |
| 4 |
120-5118 |
SHAFT-ADJUSTER Price: $44.64 |
| 4 |
532136850 |
Harness Asm Light W/4152j (AYP part number) This part replaces 532127441. Price: $15.99 |
| 5 |
106-5344 |
BUSHING-FLANGE, KEYED Price: $2.37 |
| 5 |
532110712 |
Switch, Light (AYP part number) Price: $4.99 |
| 6 |
119-4067 |
SCREW-HH Price: $0.81 |
| 6 |
817021008 |
Screw, Tap Hex #10-24 x 1/2 (AYP part number) Price: $1.99 |
| 7 |
532108236 |
Bracket, Switch (AYP part number) Price: $2.99 |
| 7 |
99-2097 |
DETENT Price: $12.71 |
| 8 |
120-5116 |
WASHER-WAVE Price: $9.17 |
| 8 |
532104445 |
Switch, Interlock (Clutch/Brake) (AYP part number) Price: $9.99 |
| 9 |
108-0015 |
WASHER-FLAT Price: $0.39 |
| 9 |
539101080 |
SWITCH, INTERLOCK This part replaces 532109553. Price: $4.99 |
| 10 |
137-6130 |
SCREW-ADJUSTER, BEDBAR This part replaces 115-7039. Price: $25.42 |
| 10 |
817211008 |
Screw, Hex Wsh. Tap #10-16 x 1/2 (AYP part number) Price: $2.99 |
| 11 |
119-4155 |
WASHER-HARDENED Price: $4.16 |
| 11 |
532122147 |
Key, Molded (AYP part number) Price: $4.99 |
| 12 |
120-5120 |
SPRING-COMPRESSION Price: $2.89 |
| 12 |
532141226 |
Cover, Key Ignition (AYP part number) This part replaces 532123620. Price: $3.99 |
| 13 |
119-4039 |
NUT-HEX, NI Price: $0.28 |
| 13 |
532124211 |
Nut, Ignition (AYP part number) Price: $3.99 |
| 14 |
532365402 |
KIT.SWITCH.IGNITN This part replaces 532125104. Price: $17.99 |
| 15 |
105-8095-01 |
BEDBAR-FAIRWAY Price: $303.06 |
| 15 |
131-3220-0P |
BEDBAR-AGGRESIVE, 5in This part replaces 131-3220-03. Price: $338.08 |
| 15 |
532124083 |
Cover, Ignition Switch (AYP part number) Price: $7.15 |
| 16 |
119-4151 |
SCREW-BEDKNIFE Price: $0.41 |
| 16 |
532007192 |
WIRE TIE This part replaces 532124756. Price: $3.99 |
| 17 |
137-6094 |
BEDKNIFE-EDGEMAX (RM 22IN) This part replaces 108-9095. Price: $166.88 |
| 17 |
532421062 |
SWITCH.SNAPMOUNT.NC This part replaces 532121305. Price: $7.99 |
| 18 |
873510500 |
Nut Keps 5/16-18 (AYP part number) Price: $5.99 |
| 19 |
532108824 |
Fuse (AYP part number) Price: $3.99 |
| 20 |
532000596 |
Assembly, Cable (AYP part number) Price: $3.99 |
| 21 |
532124190 |
Harness, Ignition (AYP part number) Price: $90.18 |
| 22 |
532050675 |
NUT.HEX..25-20.UNC This part replaces 873350400. Price: $3.99 |
| 23 |
810040400 |
LOCKWASHER This part replaces 810090400. Price: $3.99 |
| 24 |
539990071 |
HCS 1/4-20. This part replaces 874780408. Price: $1.99 |
| 24 |
61-1950 |
WASHER-PLASTIC Price: $0.55 |
| 25 |
56-9520 |
BUSHING-FLANGED Price: $2.15 |
| 25 |
810040400 |
LOCKWASHER This part replaces 811050400. Price: $3.99 |
| 26 |
131-4715 |
WASHER Price: $0.95 |
| 26 |
532124783 |
Cover, Terminal (AYP part number) Price: $4.99 |
| 27 |
106-9623 |
BOLT-BEDBAR Price: $18.27 |
| 27 |
532109081 |
Solenoid (AYP part number) Price: $22.99 |
| 28 |
3296-33 |
NUT-LOCK, NI Price: $2.39 |
| 28 |
532125760 |
Stop, Choke (AYP part number) Price: $2.38 |
| 29 |
127-4284 |
WASHER-SPECIAL Price: $5.88 |
| 29 |
874760412 |
Bolt, Hex 1/4-20 UNC x 3/4 (AYP part number) Price: $3.99 |
| 30 |
115-5258 |
SPRING-WIRE, FLAT Price: $3.40 |
| 30 |
819091016 |
Washer 9/32 x 5/8 x 16 Ga. (AYP part number) Price: $2.99 |
| 31 |
140-5510 |
BEARING-SEALED, STAINLESS This part replaces 115-3296. Price: $28.48 |
| 31 |
810040400 |
Washer, Lock Hvy. Helical Spring 1/4 (AYP part number) Price: $3.99 |
| 32 |
115-3299 |
SEAL-FLOCKED Price: $13.85 |
| 32 |
532121264 |
Cap, Battery (AYP part number) Price: $10.91 |
| 33 |
532146525 |
This part replaces 532123198. Price: $3.99 |
| 34 |
137-8412 |
ES REEL+, 5IN FWY (22) 8 BLD This part replaces 131-3203. Price: $723.66 |
| 34 |
532150109 |
BATTERY HOLDDOWN This part replaces 532102476. Price: $4.99 |
| 35 |
532050675 |
NUT.HEX..25-20.UNC This part replaces 873220400. Price: $3.99 |
| 36 |
872240460 |
Bolt, Carriage 1/4-20 UNC x 7-1/2 (AYP part number) Price: $3.99 |
| 37 |
130-0064 |
INSERT-THREADED, 5 INCH (LH) Price: $42.48 |
| 37 |
532007603 |
TRAY.BATTERY This part replaces 532124886. Price: $3.99 |
| 38 |
130-0063 |
INSERT-THREADED, 5 INCH (RH) Price: $42.48 |
| 38 |
532123899 |
BATTERY.DRY.30.AMP This part replaces 532121265. Price: $139.99 |
