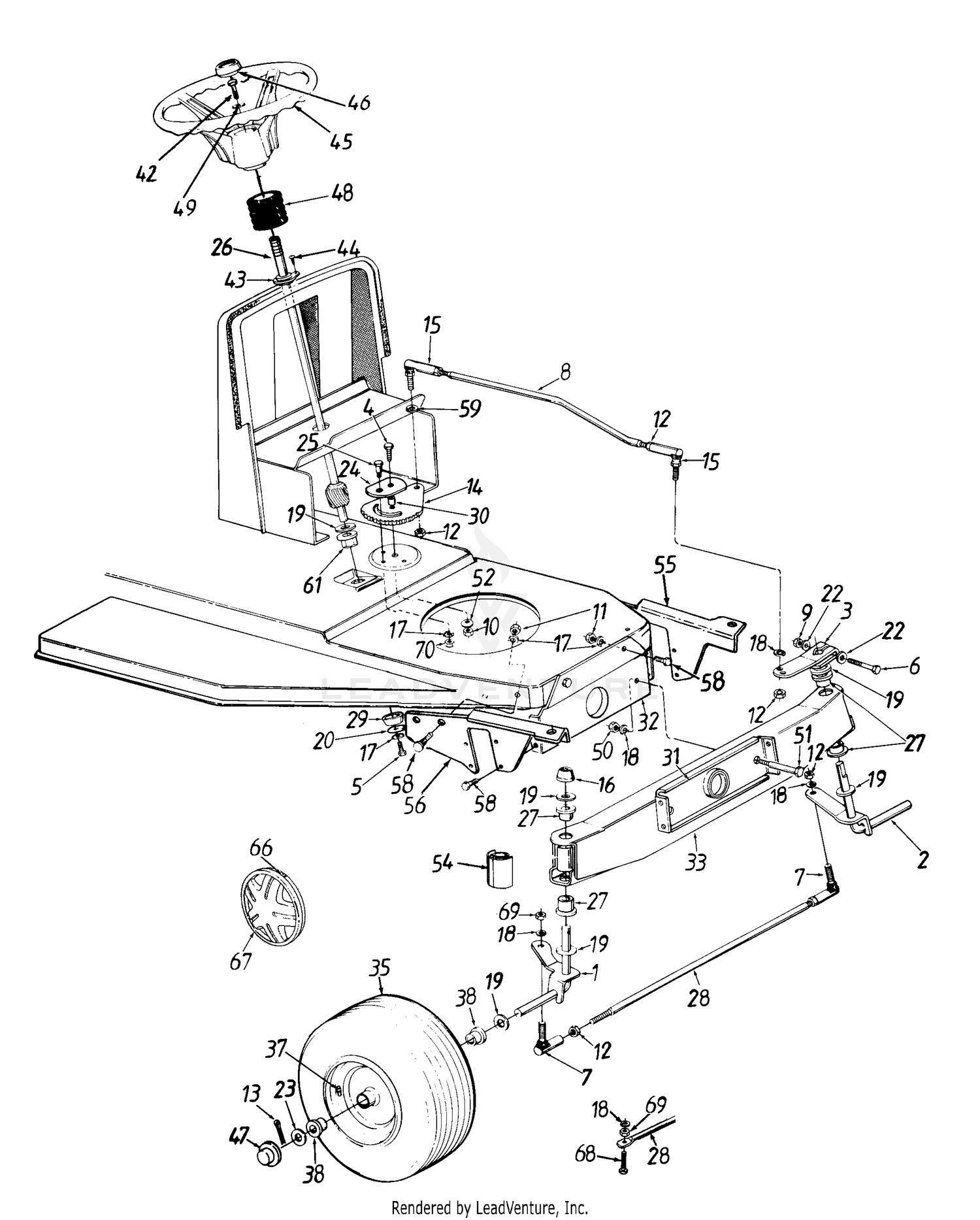

| Ref | Part Number | Description |
|---|
| 1 |
97584A-0637 |
AXLE ASSEMBLY (RH) This part replaces 17584A. Price: $67.14 |
| 2 |
17585 |
Front Axle Ass"y.-R.H. (13 x 5) This part replaces 17585A. Price: $61.80 |
| 3 |
983-0055-0637 |
Steering Arm Front Axle This part replaces 683-0055. Price: $41.85 |
| 4 |
710-1039 |
Hex Bolt 3/8-24 x 1" Lg. This part replaces 710-0152. Price: $4.02 |
| 5 |
710-0538 |
Hex Bolt 5/16-18 x .62" (Spec.) Price: $4.02 |
| 6 |
710-0772 |
Hex Bolt 5/16-24 x 2" Lg. Price: $3.93 |
| 7 |
923-3018 |
Ball Joint, 3/8-24 This part replaces 723-3018. Price: $15.50 |
| 9 |
912-3057 |
Hex Nut 5/16-24 Thd. This part replaces 712-3057. Price: $5.94 |
| 11 |
712-3010 |
HEX NUT 5/16-18 This part replaces 7123010. Price: $3.89 |
| 12 |
712-0262 |
Hex Jam Nut 3/8-24 Thd. Price: $3.90 |
| 13 |
714-0470 |
Cotter Pin 1/8 Dia. Price: $3.90 |
| 14 |
717-0622C |
Steering Gear Segment Not Available This part replaces 717-0622A. Price: |
| 15 |
923-0448A |
Ball Joints This part replaces 723-0448. Price: $22.55 |
| 16 |
726-0214 |
Push Cap Price: $9.11 |
| 17 |
936-0119 |
Lock Wash. 5/16" I.D. This part replaces 736-0119. Price: $4.29 |
| 18 |
736-0169 |
Lock Washer 3/8" I.D. Price: $3.33 |
| 19 |
736-0187 |
Fl- Washer .64" I.D. x 1.24" Price: $4.02 |
| 20 |
736-0343 |
Fl-Washer .340" I.D. x 1.125" Price: $3.90 |
| 22 |
936-0271 |
SPRING WASHER .317 X .625 X .020 This part replaces 736-0271. Price: $3.93 |
| 23 |
736-0285 |
Fl-Washer .635" I.D. x 1.585" Price: $3.89 |
| 24 |
783P08577A |
STABILIZER PLATE This part replaces 17198A. Price: $6.48 |
| 25 |
938-0141 |
SHOULDER SCREW .437 DIA x .350 Not Available This part replaces 738-0141. Price: |
| 26 |
738-0937 |
Steering Shaft Price: $77.96 |
| 27 |
941-0659 |
Hex Flg. Brg. .632 I.D. This part replaces 741-0659. Price: $4.80 |
| 28 |
747-0753 |
Tie Rod (Adjustable) Price: $29.86 |
| 29 |
950-0532 |
SPACER Not Available This part replaces 750-0532. Price: |
| 30 |
950-0535 |
Spacer.380" I.D. x .625" O.D. x .227 This part replaces 750-0535. Price: $3.90 |
| 31 |
17548 |
BRACKET-PIVOT Not Available Price: |
| 32 |
17547-0637 |
BRACKET-PIVOT Not Available This part replaces 17547. Price: |
| 33 |
683-0128B-0637 |
Pivot Axle - Powder Black This part replaces 683-0128. Price: $85.22 |
| 35 |
634-0087 |
WHEEL ASSEMBLY Not Available Price: |
| 35 |
634-0091 |
WHEEL ASSEMBLY Not Available Price: |
| 37 |
934-0255 |
TUBELESS VALVE This part replaces 734-0255. Price: $3.83 |
| 38 |
741-0487C |
Flange Bearing .632 ID This part replaces 741-0487A. Price: $6.87 |
| 42 |
710-0643 |
Hex Lock Bolt 5/16-18 x 1" Lg. (Gr. 5) Price: $5.99 |
| 43 |
741-0501 |
STEERING BEARING Not Available Price: |
| 44 |
710-0837 |
Cr-Sunk Scr. #10 x 5/8" Lg. Price: $3.85 |
| 45 |
931-0027A |
Steering Wheel (4 Spoke) This part replaces 731-1693. Price: $85.70 |
| 46 |
931-0220 |
Steering Wheel Cap This part replaces 731-0220. Price: $7.93 |
| 47 |
931-0484A |
Hub Cap This part replaces 731-0484A. Price: $5.98 |
| 48 |
931-0954 |
STEERING BELLOW 9" Not Available This part replaces 731-0954. Price: |
| 49 |
736-0242 |
Bell-Washer .345" I.D. x .88" Price: $3.75 |
| 50 |
912-0431 |
Flange Lock Nut 3/8-16 This part replaces 7120431. Price: $4.29 |
| 51 |
738-0527 |
Shld. Bolt 1/2" Dia. x 2.04" Price: $7.90 |
| 52 |
936-0356 |
BELL WASHER Not Available This part replaces 736-0356. Price: |
| 54 |
731-1649 |
STANDARD AXLE CAP Not Available Price: |
| 55 |
783-0255 |
PIVOT BAR PLATE (LH) Not Available Price: |
| 56 |
783-0256B-0637 |
PLATE-PIVOT BAR (RH) Not Available This part replaces 783-0256. Price: |
| 58 |
710-0604A |
Screw, 5/16-18 x .625 This part replaces 710-0604. Price: $3.96 |
| 59 |
736-0217 |
Lock Washer 3/8" I.D. (H.D.) Price: $3.86 |
| 61 |
941-0225 |
FLANGE BEARING This part replaces 741-0225. Price: $6.55 |
| 66 |
727-0425A |
SPRING CLIP Not Available Price: |
| 68 |
710-0459A |
Hex Cap Screw 3/8-24 x 1.5 This part replaces 710-0459. Price: $6.50 |
| 69 |
712-0241 |
Hex Nut 3/8-24 Thd. Price: $3.86 |
