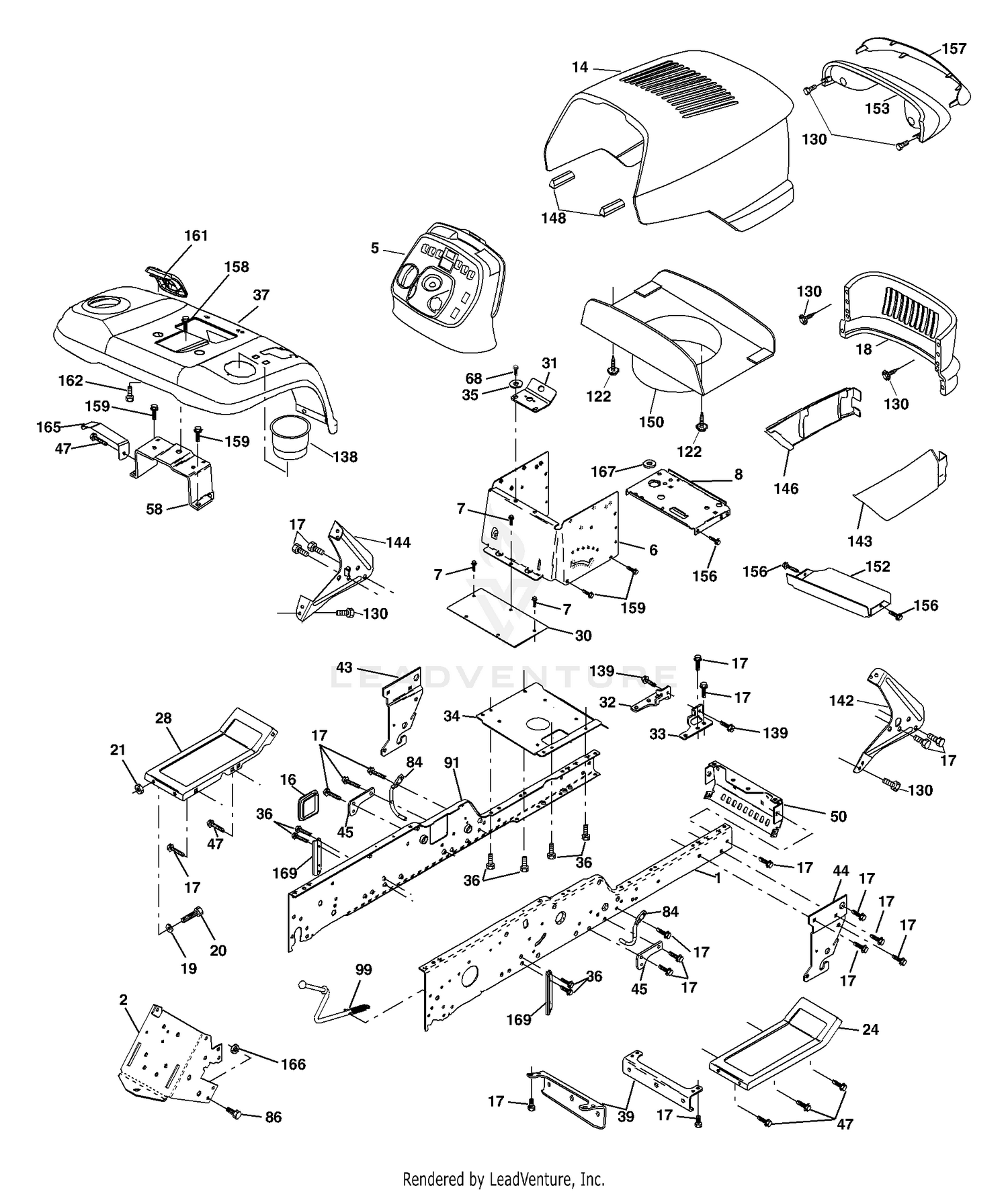

| Ref | Part Number | Description |
|---|
| 1 |
121-4698 |
NUT-KEPS This part replaces 32149-5. Price: $1.15 |
| 1 |
180375 |
Rail, Frame RH Price: Call Us |
| 2 |
175282 |
Drawbar, Gt Price: Call Us |
| 3 |
21-8270 |
PIN-DOWEL Price: $6.65 |
| 4 |
21-7720 |
WASHER-THRUST Price: $3.39 |
| 5 |
110-4143 |
KIT-REPLACEMENT, REVACYCLE GEARS This part replaces 24-8790. Price: $702.98 |
| 5 |
187934X428 |
Dash Price: Call Us |
| 6 |
110-4143 |
KIT-REPLACEMENT, REVACYCLE GEARS This part replaces 21-7690. Price: $702.98 |
| 6 |
157882 |
Dash Asm., Lower Price: Call Us |
| 7 |
17720408 |
Screw, Thd Cut 1/4-20 x 1/2 Price: Call Us |
| 7 |
21-7730 |
WASHER-THRUST, PINION Price: $2.65 |
| 8 |
184668 |
Support, Battery Price: Call Us |
| 9 |
43-6760 |
BEARING-ROLLER, CONE TAPER Price: $113.20 |
| 10 |
43-6750 |
BEARING-TAPER, CUP Price: $69.64 |
| 13 |
32144-112 |
SCREW-HWH Price: $0.99 |
| 14 |
175260X505 |
Hood Asm., Pnt Price: Call Us |
| 14 |
86-7230 |
GEAR-INPUT, TRANSMISSION Price: $610.12 |
| 15 |
43-6710 |
SHIM-PINION (.003) Price: $2.17 |
| 16 |
121794X |
Cover, Access Price: Call Us |
| 16 |
43-6711 |
SHIM-PINION (.005) Price: $3.80 |
| 17 |
17000612 |
Screw, 3/8-16 x 3/4 Price: Call Us |
| 17 |
43-6712 |
SHIM-PINION (.010) Price: $3.19 |
| 18 |
175289X428 |
Grille Price: Call Us |
| 18 |
43-6713 |
SHIM-PINION (.030) Price: $6.99 |
| 19 |
19131312 |
Washer 13/32 x 13/16 x 12 Ga. Price: Call Us |
| 19 |
3210-8 |
SCREW-HH Price: $1.02 |
| 20 |
71-4350 |
NUT Price: $3.46 |
| 20 |
74780616 |
Bolt, Fin Hex 3/8-16 x 1 Price: Call Us |
| 21 |
73800600 |
Nut, Lock Hex w/Ins. 3/8-16 unc Price: Call Us |
| 21 |
83-5130 |
SPACER-PINION Price: $87.56 |
| 22 |
72-3572 |
SHIM-BEARING, FRONT (.098) This part replaces 72-3570. Price: $23.68 |
| 22 |
72-3573 |
SHIM-BEARING, FRONT (.100) Price: $24.63 |
| 22 |
72-3574 |
SHIM-BEARING, FRONT (.102) Price: $23.68 |
| 22 |
72-3575 |
SHIM-BEARING, FRONT (.104) Price: $22.53 |
| 22 |
72-3576 |
SHIM-BEARING, FRONT (.106) Price: $23.68 |
| 22 |
72-3577 |
SHIM-BEARING, FRONT (.108) Price: $22.53 |
| 22 |
72-3578 |
SHIM-BEARING, FRONT (.110) Price: $22.53 |
| 22 |
72-3580 |
SHIM-BEARING, FRONT (.112) Price: $22.53 |
| 22 |
72-3581 |
SHIM-BEARING, FRONT (.114) Price: $22.53 |
| 22 |
72-3582 |
SHIM-BEARING, FRONT (.116) Price: $22.53 |
| 22 |
72-3583 |
SHIM-BEARING, FRONT (.118) Price: $56.93 |
| 22 |
72-3584 |
SHIM-BEARING, FRONT (.120) Price: $24.63 |
| 22 |
72-3585 |
SHIM-BEARING, FRONT (.125) Price: $22.53 |
| 22 |
72-3586 |
SHIM-BEARING, FRONT (.127) Price: $22.53 |
| 22 |
72-3587 |
SHIM-BEARING, FRONT (.129) Price: $23.68 |
| 22 |
72-3588 |
SHIM-BEARING, FRONT (.131) Price: $22.53 |
| 22 |
72-3590 |
SHIM-BEARING, FRONT (.133) Price: $22.53 |
| 22 |
72-3591 |
SHIM-BEARING, FRONT (.135) Price: $21.44 |
| 22 |
72-3592 |
SHIM-BEARING, FRONT (.137) Price: $22.53 |
| 22 |
72-3593 |
SHIM-BEARING, FRONT (.139) Price: $23.68 |
| 22 |
72-3594 |
SHIM-BEARING, FRONT (.141) Price: $23.68 |
| 22 |
72-3595 |
SHIM-BEARING, FRONT (.143) Price: $22.53 |
| 22 |
72-3596 |
SHIM-BEARING, FRONT (.145) Price: $22.53 |
| 22 |
72-3597 |
SHIM-BEARING, FRONT (.147) Price: $22.53 |
| 22 |
72-3598 |
SHIM-BEARING, FRONT (.149) Price: $24.63 |
| 22 |
72-3600 |
SHIM-BEARING, FRONT (.151) Price: $23.68 |
| 23 |
254-91 |
CONE-BEARING Price: $18.65 |
| 24 |
179717X505 |
Footrest, RH Price: Call Us |
| 24 |
254-90 |
BEARING-CUP This part replaces 21-8390. Price: $11.29 |
| 25 |
21-8020 |
SPACER-BEARING Price: $28.84 |
| 26 |
93-3619 |
UPPER HOUSING ASM Price: $1,825.32 |
| 27 |
254-66 |
CUP-BEARING, ROLLER Price: $17.92 |
| 28 |
179716X505 |
Footrest, LH Price: Call Us |
| 28 |
254-65 |
BEARING-ROLLER, CONE Price: $62.13 |
| 29 |
92-1773 |
SCREW-HHF Price: $3.05 |
| 30 |
145052 |
Saddle, Hydro 1995 Price: Call Us |
| 30 |
32121-15 |
PIN-ROLL This part replaces 21-7710. Price: $1.60 |
| 31 |
161419 |
Bracket, Supt 1-pc VGT Steering Price: Call Us |
| 31 |
21-7700 |
SHAFT-MATE, PINION Price: $54.05 |
| 32 |
161327 |
Bracket, Pivot Chassis LH Price: Call Us |
| 32 |
21-7770 |
SCREW-GEAR, DRIVE Price: $1.97 |
| 33 |
161326 |
Bracket, Pivot Chassis RH Price: Call Us |
| 33 |
21-7670 |
CASE-DIFFERENTIAL Price: $687.90 |
| 34 |
108-1422-03 |
DISCONTINUED Price: Call Us |
| 34 |
177018 |
Plate Asm. Engine Chassis Price: Call Us |
| 35 |
19111116 |
Washer 11/32 x 11/16 x 16 Ga. Price: Call Us |
| 35 |
21-8120 |
SHIM-BEARING, DIFFERENTIAL (.030) Price: $5.43 |
| 36 |
17060512 |
Screw 5/16-18 x 3/4 Price: Call Us |
| 36 |
21-8110 |
SHIM-BEARING, DIFFERENTIAL (.010) Price: $3.73 |
| 37 |
178510X505 |
Fender, Pnt. Price: Call Us |
| 37 |
21-8100 |
SHIM-BEARING, DIFFERENTIAL (.005) Price: $3.46 |
| 38 |
21-8090 |
SHIM-BEARING, DIFFERENTIAL (.003) Price: $1.09 |
| 39 |
175278 |
Bracket, Axle Front Price: Call Us |
| 39 |
72-9420 |
VENT Price: $6.85 |
| 40 |
83-4910 |
COUPLER-PINION Price: $223.04 |
| 41 |
71-4330 |
SEAL Price: $36.26 |
| 42 |
93-3618 |
GEAR AND PINION ASM Price: $1,107.66 |
| 43 |
136939 |
Bracket, Spnsn Front Lh Price: Call Us |
| 44 |
136940 |
Bracket, Spnsn Front Rh Price: Call Us |
| 45 |
187270 |
Bracket Asm., Susp Chassis Price: Call Us |
| 47 |
17490608 |
Screw Thdrol 3/8-16 x 1/2 TYT Price: Call Us |
| 50 |
175476 |
Bracket, Chassis Front Price: Call Us |
| 58 |
183569 |
Bracket Asm., Fender Price: Call Us |
| 68 |
17490508 |
Screw, Thd 5/16-18 x 1/2 Price: Call Us |
| 84 |
188164 |
Upstop Price: Call Us |
| 86 |
74780720 |
Bolt, Fin Hex 7/16-14 unc x 1-1/4 Gr. 5 Price: Call Us |
| 91 |
180374 |
Rail, Frame Lh Price: Call Us |
| 99 |
177143 |
Rod By Pass Price: Call Us |
| 122 |
161464 |
Screw Hex Wshd 8-18 x 7/8 Price: Call Us |
| 130 |
171875 |
Screw HWHD Hi-Lo #13-16 x 3/4 Price: Call Us |
| 138 |
179125X428 |
Cupholder YTGT Price: Call Us |
| 139 |
171873 |
Bolt Shoulder 5/16-18 TT Price: Call Us |
| 142 |
161897 |
Bracket Dash RH Price: Call Us |
| 143 |
169847X428 |
Skirt Grill RH Price: Call Us |
| 144 |
161900 |
Bracket Dash LH Price: Call Us |
| 146 |
169848X428 |
Skirt Grill LH Price: Call Us |
| 148 |
164655 |
Extrusion Bumper Price: Call Us |
| 150 |
175352 |
Duct Heat Hood Price: Call Us |
| 152 |
177956 |
Shield Browning Price: Call Us |
| 153 |
179761 |
Light Box Asm. w/Lens Price: Call Us |
| 156 |
17060512 |
Screw 5/16-18 x 3/4 Price: Call Us |
| 157 |
161840 |
Lens, Bar Price: Call Us |
| 158 |
17670608 |
Screw Thdrol 3/8-16 x 1/2 Price: Call Us |
| 159 |
17000612 |
Screw 3/8-16 x 3/4 Price: Call Us |
| 161 |
179612X428 |
Console Fuel Window Price: Call Us |
| 162 |
142432 |
Screw 1/4-1/2 Price: Call Us |
| 165 |
183554 |
Bracket Support Tank Price: Call Us |
| 166 |
73680700 |
Nut, Crownlock 7/16-14 unc Price: Call Us |
| 167 |
184672 |
Bushing Snap Price: Call Us |
