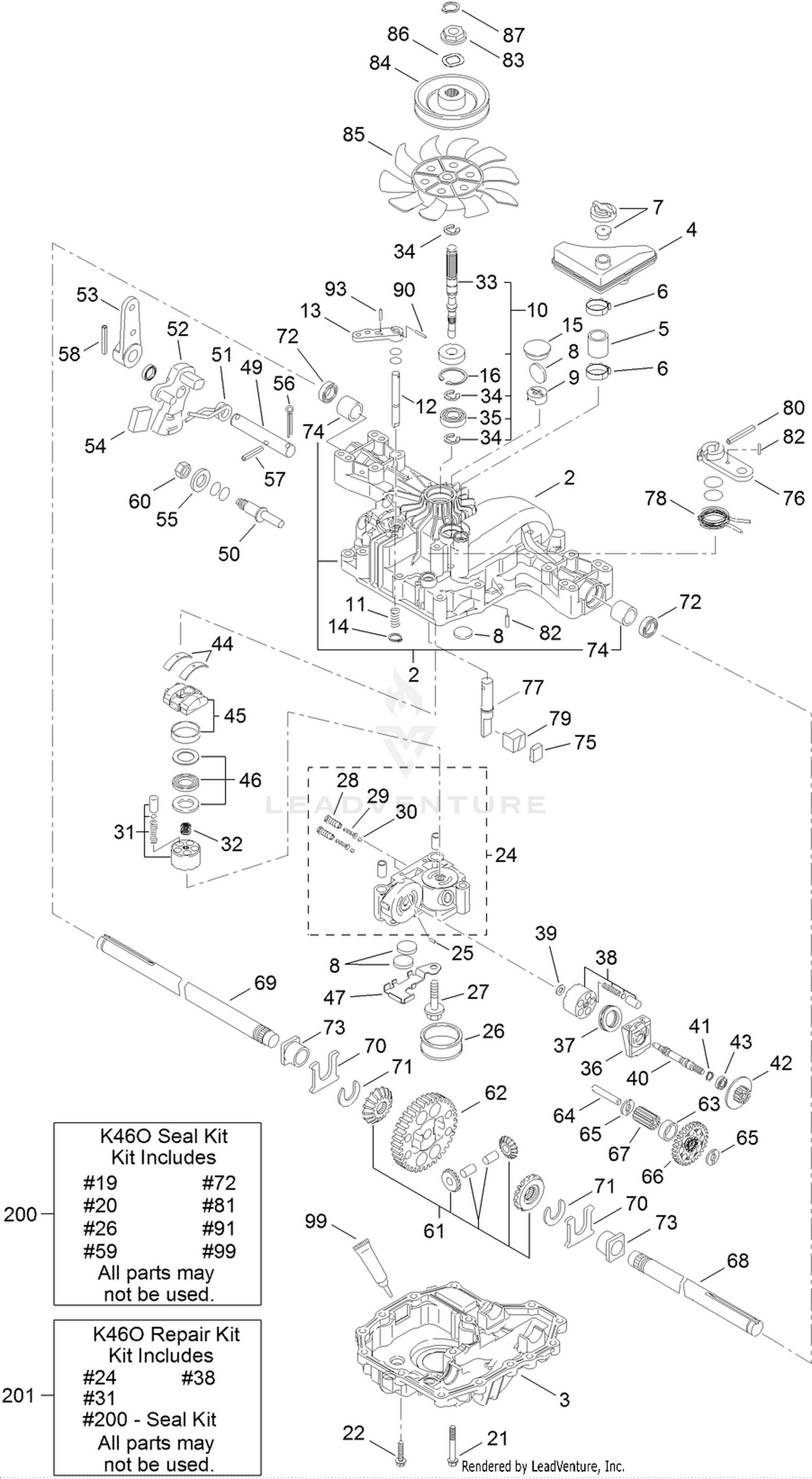

Transaxle Assembly No. 121-0900
Parts (82)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 121-0901 | UPPER CASE KIT Price: Call Us |
| 3 | 104-3253 | HOUSING-LOWER Price: $300.10 |
| 4 | 121-0902 | TANK-RESERVOIR Price: Call Us |
| 5 | 121-0903 | TUBE Price: Call Us |
| 6 | 104-3255 | CLAMP-MINIATURE Price: $9.15 |
| 7 | 121-0904 | VALVE-VENT Price: Call Us |
| 8 | 104-3257 | MAGNET Price: $11.94 |
| 9 | 121-0905 | HOLDER-MAGNET Price: Call Us |
| 10 | 121-0906 | PUMP SHAFT/BEARING KIT Price: Call Us |
| 11 | 121-0907 | SPRING Price: Call Us |
| 12 | 104-3260 | SHAFT-BYPASS Price: $96.09 |
| 13 | 104-3261 | LEVER-BYPASS Price: $25.95 |
| 14 | 104-3262 | RING Price: $2.38 |
| 15 | 104-3263 | PLUG-BORE Price: $16.61 |
| 16 | 121-0908 | RING-SNAP Price: Call Us |
| 21 | 121-0909 | SCREW-TAPPING Price: Call Us |
| 22 | 121-0910 | SCREW-TAPPING Price: Call Us |
| 24 | 121-0911 | CENTER CASE W/BALL IDS KIT Price: Call Us |
| 25 | 104-3270 | PIN Price: $1.36 |
| 26 | 121-0912 | FILTER Price: $16.49 |
| 27 | 104-3272 | BOLT Price: $5.96 |
| 28 | 121-0913 | VALVE-IDS Price: Call Us |
| 29 | 121-0914 | SPRING-IDS Price: Call Us |
| 30 | 121-0915 | BALL Price: Call Us |
| 31 | 121-0916 | CYLINDER BLOCK (PUMP) KIT Price: Call Us |
| 32 | 104-3277 | SPRING-PUMP Price: $5.77 |
| 33 | 104-3278 | SHAFT-PUMP Price: $127.20 |
| 34 | 92-0761 | RING-E This part replaces 121-0917. Price: $0.75 |
| 35 | 121-0918 | BEARING Price: Call Us |
| 36 | 104-3279 | HOUSING Price: $44.30 |
| 37 | 121-0919 | BEARING-THRUST Price: Call Us |
| 38 | 121-0920 | CYLINDER BLOCK KIT (MOTOR) Price: Call Us |
| 39 | 104-3282 | WASHER Price: $1.11 |
| 40 | 121-0921 | SHAFT-MOTOR Price: Call Us |
| 41 | 121-0922 | RING-SNAP Price: Call Us |
| 42 | 104-3284 | MOTOR-GEAR Price: $47.16 |
| 43 | 121-0923 | BEARING Price: Call Us |
| 44 | 104-3286 | METAL-THRUST Price: $33.78 |
| 45 | 104-3287 | PLATE-SWASH Price: $270.75 |
| 46 | 121-0924 | THRUST BEARING (PUMP) KIT Price: Call Us |
| 47 | 121-0925 | HOLDER-MAGNET Price: Call Us |
| 49 | 114-3181 | SHAFT-CONTROL Price: Call Us |
| 50 | 121-0926 | FULCRUM Price: Call Us |
| 51 | 114-3217 | SPRING-TORSION Price: Call Us |
| 52 | 114-3180 | ARM-CONTROL Price: $46.76 |
| 53 | 121-0927 | LEVER-CONTROL Price: Call Us |
| 54 | 121-0928 | PLATE-JERKY Price: Call Us |
| 55 | 121-0929 | WASHER Price: Call Us |
| 56 | 114-3182 | PIN-COTTER Price: Call Us |
| 57 | 121-0930 | SPRING PIN Price: Call Us |
| 58 | 121-0931 | PIN-ROLL Price: $1.44 |
| 60 | 121-0932 | NUT Price: Call Us |
| 61 | 121-0933 | DIFFERENTIAL GEAR KIT Price: Call Us |
| 62 | 121-0934 | GEAR-FINAL Price: Call Us |
| 63 | 121-0935 | COLLAR-PINION, FINAL Price: Call Us |
| 64 | 121-0936 | SHAFT-REDUCTION Price: Call Us |
| 65 | 121-0937 | WASHER Price: Call Us |
| 66 | 121-0938 | GEAR-REDUCTION Price: Call Us |
| 67 | 121-0939 | GEAR-PINION, FINAL Price: Call Us |
| 68 | 121-0940 | SHAFT-AXLE, LEFT Price: Call Us |
| 69 | 121-0941 | SHAFT-AXLE, RIGHT Price: Call Us |
| 70 | 121-0942 | WASHER-THRUST Price: Call Us |
| 71 | 121-0943 | RING Price: Call Us |
| 72 | 121-0944 | SEAL Price: Call Us |
| 73 | 121-0945 | BUSHING Price: Call Us |
| 74 | 121-0946 | BUSHING Price: Call Us |
| 75 | 121-0947 | SHOE-BRAKE Price: Call Us |
| 76 | 121-0948 | LEVER-BRAKE Price: Call Us |
| 77 | 121-0949 | SHAFT-BRAKE Price: Call Us |
| 78 | 121-0950 | SPRING-RETURN, BRAKE Price: Call Us |
| 79 | 121-0951 | ACTUATOR-BRAKE Price: Call Us |
| 80 | 92-0767 | PIN Price: $2.38 |
| 82 | 121-0952 | PIN-SPRING Price: Call Us |
| 83 | 121-0953 | COLLAR-SPLINE Price: Call Us |
| 84 | 121-0954 | PULLEY Price: Call Us |
| 85 | 121-0955 | FAN-WHITE Price: Call Us |
| 86 | 121-0956 | WASHER-WAVE Price: Call Us |
| 87 | 121-0957 | RING-SNAP Price: Call Us |
| 90 | 121-0958 | PIN-SPRING Price: Call Us |
| 93 | 104-3264 | PIN Price: $1.00 |
| 99 | 121-0959 | SEALANT Price: Call Us |
| 200 | 121-0960 | SEAL KIT Price: Call Us |
