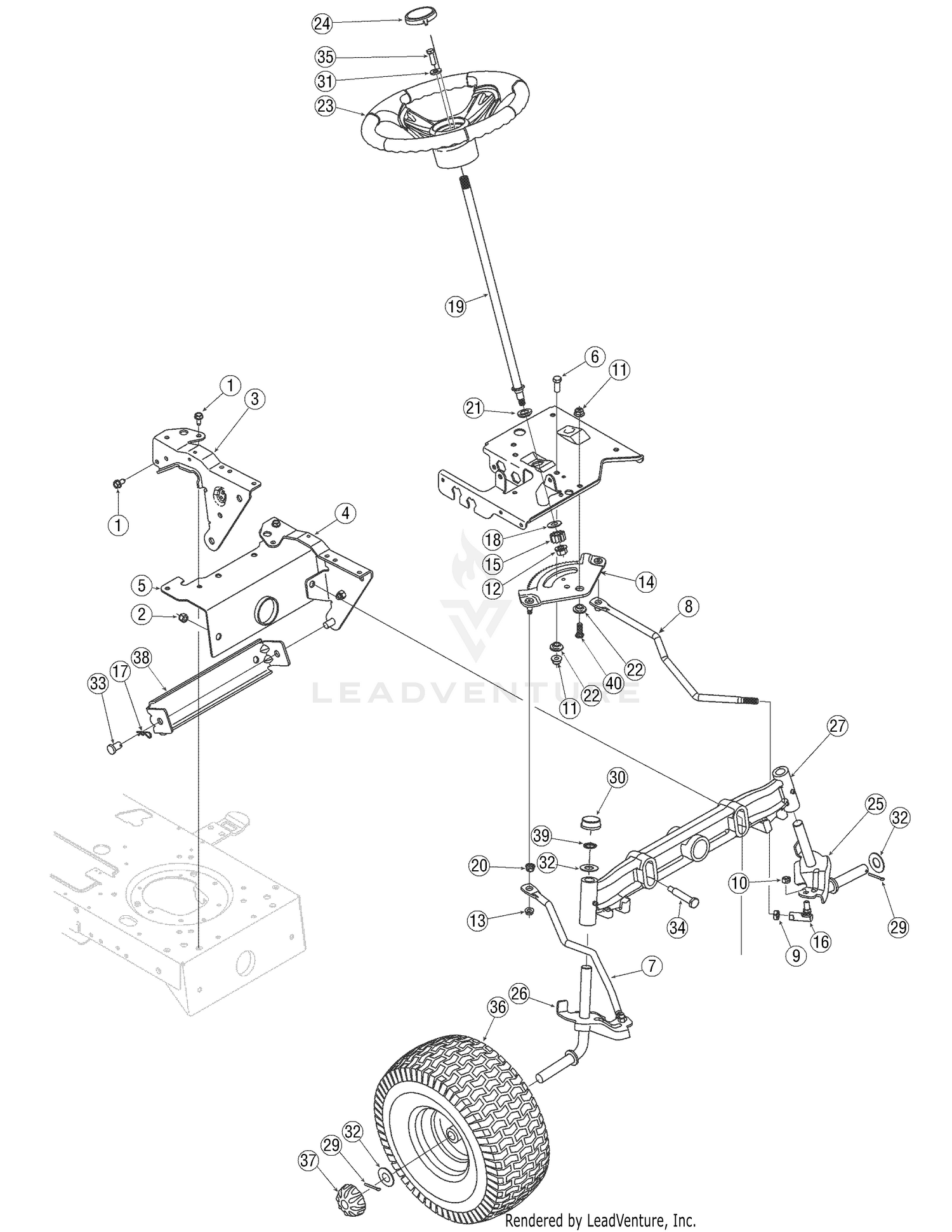

| Ref | Part Number | Description |
|---|
| 1 |
710-1260A |
Self-tapping Screw, 5/16-18 x.75 Price: $3.34 |
| 2 |
712-04065 |
Nut, Flange Lock, 3/8-16 Price: $3.68 |
| 3 |
783-0726E |
PIVOT SUPPORT BRACKET (RH) Not Available Price: |
| 4 |
783-0727D |
PIVOT SUPPORT BRACKET (LH) Not Available Price: |
| 5 |
783-0728B-0637 |
PIVOT BAR BRACKET (POWDER BLACK) Not Available This part replaces 783-0728. Price: |
| 6 |
710-0514 |
Hex Cap Screw, 3/8-16 x 1 Price: $3.78 |
| 7 |
711-1408 |
DRAG LINK (RH) Not Available Price: |
| 8 |
711-1409A |
DRAG LINK (LH) Not Available Price: |
| 9 |
912-0240 |
Nut, Jam, 7/16-20, Gr2 This part replaces 712-0240. Price: $3.90 |
| 10 |
712-0214 |
Hex Nut, 3/8-24 Price: $5.94 |
| 11 |
912-0431 |
Hex Flange Nut 3/8-16 This part replaces 7120431. Price: $4.29 |
| 12 |
712-0459 |
Flange Lock Nut, 7/16-20 Price: $4.39 |
| 13 |
712-3004A |
HEX FLANGE NUT Price: $3.49 |
| 14 |
717-1550F |
Steering Gear This part replaces 717-1550E. Price: $61.81 |
| 15 |
717-1554 |
Steering Pinion Gear Price: $9.44 |
| 16 |
923-0448A |
Ball Joint, 7/16-20, Lock This part replaces 723-0448A. Price: $22.55 |
| 17 |
714-04023 |
Cotter Pin, Internal Price: $3.90 |
| 18 |
736-3084 |
Flat Washer,.51 x 1.12 x.06 Price: $4.39 |
| 19 |
738-1001A |
Steering Shaft,.625 OD x 24.4 Not Available Price: |
| 20 |
941-0475 |
BUSHING .380 ID This part replaces 741-0475. Price: $3.74 |
| 21 |
941-0656A |
BRG:HEX FLNG 5/8 This part replaces 741-0656A. Price: $4.69 |
| 22 |
738-04154 |
Shoulder Spacer,.38 x 1.00 x.31 Price: $5.08 |
| 23 |
631-04008B |
Steering Wheel Assembly This part replaces 631-04008. Price: $87.97 |
| 24 |
731-04681 |
Steering Wheel Cap Price: $12.40 |
| 25 |
638-04003AP |
AXLE ASSEMBLY (.750) (LH) Not Available This part replaces 638-04003A. Price: |
| 26 |
938-04004A |
AXLE ASSEMBLY (RH) .750DIA This part replaces 638-04004A. Price: $66.15 |
| 27 |
753-06019 |
Pivot Axle, Cast This part replaces 719-04177. Price: $221.30 |
| 29 |
714-0162 |
COTTER PIN-5/32 DIA This part replaces 714-04039. Price: $4.29 |
| 30 |
731-04693 |
HUB CAP Price: $4.08 |
| 31 |
736-3004 |
Flat Washer,.406 x.875 x.105 Price: $4.08 |
| 32 |
736-0316 |
Flat Washer,.78 x 1.59 x.06 Price: $4.02 |
| 33 |
911-0332 |
Clevis Pin, .50" Dia. This part replaces 711-0332. Price: $14.98 |
| 34 |
738-1011A |
Shoulder Screw,.5 x 2.2, 3/8-16 Price: $7.65 |
| 35 |
710-0643 |
Hex Bolt, 5/16-18 X 1 Price: $5.99 |
| 36 |
741-0516B |
FLANGE BEARING This part replaces 741-0516A. Price: $5.64 |
| 36 |
741-0990B |
FLANGE BEARING W/ZERK FITTING This part replaces 741-0990A. Price: $9.54 |
| 36 |
934-0255 |
TUBELESS VALVE This part replaces 734-0255. Price: $3.83 |
| 37 |
731-2290B |
HUB CAP This part replaces 731-2290A. Price: $3.82 |
| 38 |
783-0720C |
Bracket, Front Deck Rod This part replaces 783-0720A. Price: $34.13 |
| 39 |
726-04035 |
Nut, Push, 3/4 Dia. Price: $5.99 |
