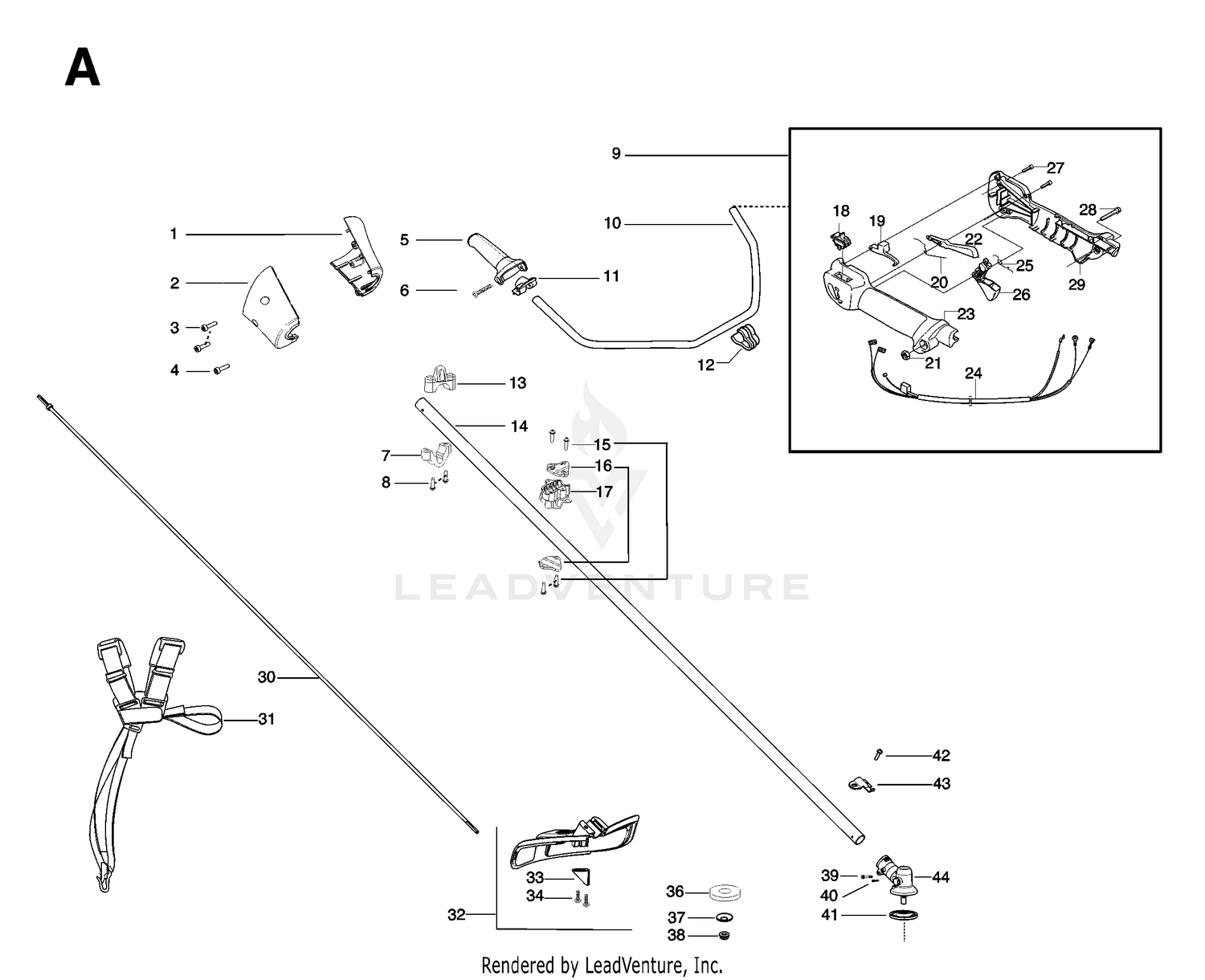

| Ref | Part Number | Description |
|---|
| 1 |
545036401 |
NOSE CONE BH LEFT Price: $3.99 |
| 2 |
545036501 |
NOSE CONE BH RIGHT Price: $3.99 |
| 3 |
530016448 |
SCREW Price: $2.99 |
| 4 |
530016449 |
SCREW M4 X 1.75 PT 16MM Price: $3.99 |
| 5 |
503721003 |
HANDLE Price: $14.99 |
| 6 |
503210745 |
SCREW Price: $3.99 |
| 7 |
545056601 |
CLAMP HARNESS LOWER Price: $3.99 |
| 8 |
530015940 |
SCREW Price: $2.99 |
| 9 |
545125501 |
ASSY THROTTLE HOUSING This part replaces 545067101. Price: $49.99 |
| 10 |
502199503 |
HANDLE Price: $29.99 |
| 11 |
503804501 |
BRACKET Price: $6.99 |
| 12 |
502211201 |
GROMMET Price: $3.99 |
| 13 |
530057986 |
CLAMP HARNESS UPPER Price: $3.99 |
| 14 |
545081011 |
KIT D'SHAFT This part replaces 545030701. Price: $64.99 |
| 15 |
530015814 |
SCREW Price: $0.17 |
| 16 |
530058563 |
CLAMP BRACKET Price: $2.99 |
| 17 |
545058501 |
CLAMP Price: $9.99 |
| 18 |
545049301 |
KIT SWITCH This part replaces 545030601. Price: $8.99 |
| 19 |
537160703 |
STARTER THROTTLE LOCK This part replaces 537160701. Price: $4.99 |
| 20 |
537174301 |
SPRING Price: $3.99 |
| 21 |
503221013 |
NUT Price: $3.99 |
| 22 |
506497701 |
THROTTLE CONTROL This part replaces 537160601. Price: $6.99 |
| 23 |
537160203 |
HANDLE Price: $17.99 |
| 24 |
545125801 |
ASSY CABLE WIRE HARNESS This part replaces 545056201. Price: $27.99 |
| 25 |
537174201 |
SPRING Price: $4.99 |
| 26 |
506497701 |
THROTTLE CONTROL This part replaces 537160801. Price: $6.99 |
| 27 |
503216618 |
SCREW Price: $3.99 |
| 28 |
503200782 |
SCREW IHSCFM This part replaces 503200735. Price: $3.99 |
| 29 |
537160301 |
HANDLE Price: $14.99 |
| 30 |
545007507 |
FLEXSHAFT 57" Price: $24.99 |
| 31 |
537216202 |
Harness - Diagonal with sign Price: $8.99 |
| 32 |
545030901 |
KIT COBI SHIELD Price: $27.99 |
| 33 |
530052286 |
Limiter - Line Price: $0.68 |
| 34 |
530015814 |
SCREW Price: $0.17 |
| 36 |
503890101 |
SUPPORTING CUP Price: $14.99 |
| 37 |
537285601 |
SUPPORT FLANGE Price: $9.99 |
| 38 |
503856301 |
GEARHEAD NUT - BRUSHCUTTER Price: $5.99 |
| 39 |
530016014 |
SCREW - CARB. ADAPTOR Price: $2.99 |
| 40 |
530016301 |
SCREW Price: $2.99 |
| 41 |
530150294 |
ASSY DUST CUP Price: $11.99 |
| 43 |
530057554 |
BRACKET SHIELD STRAIGHT SHAFT Price: $4.99 |
| 44 |
530096295 |
ASSY GEARBOX Price: $34.99 |
