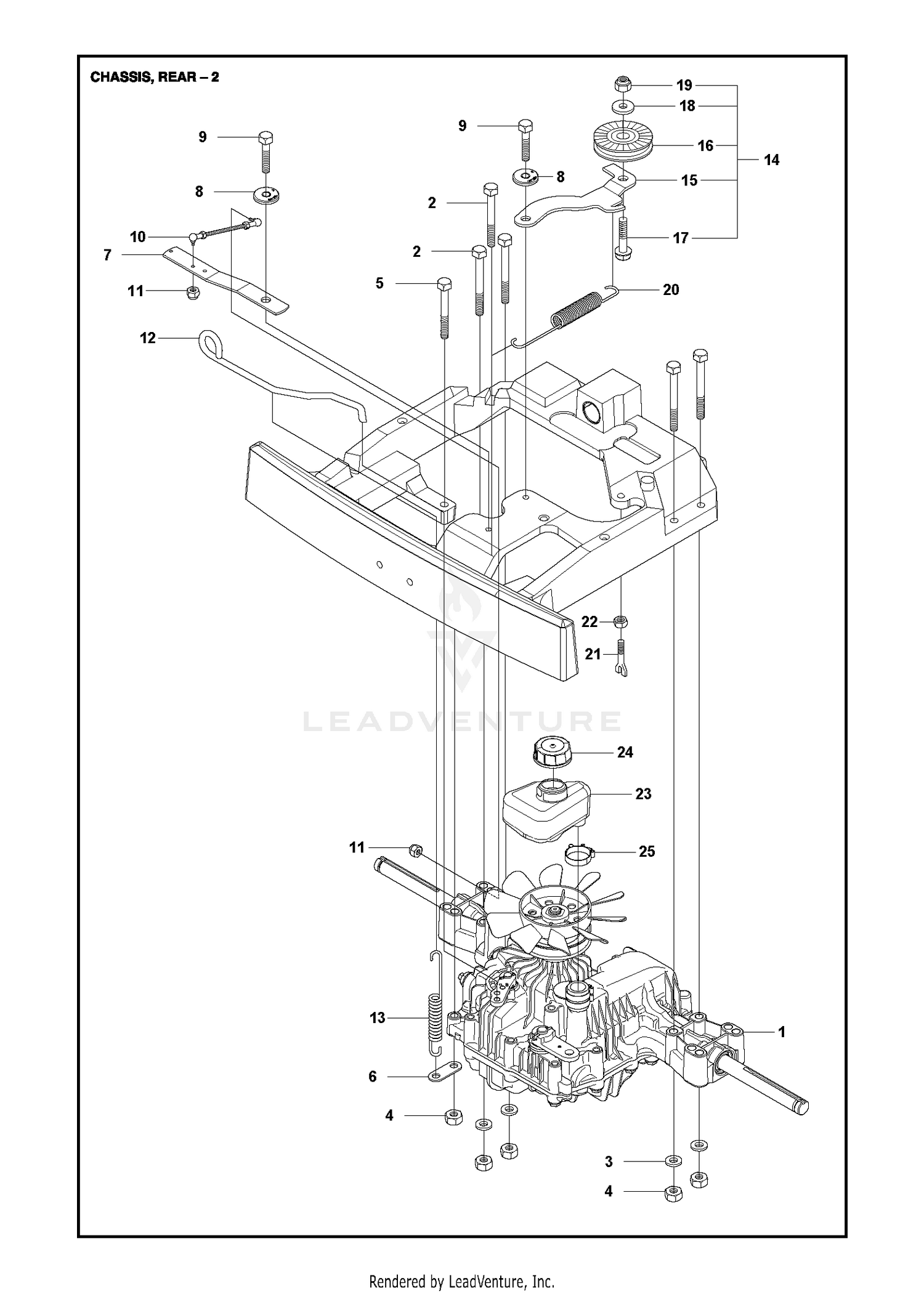

CHASSIS REAR
Parts (46)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 506986301 | HYDROSTAT 7A646024070 Price: $1,099.99 |
| 2 | 725246751 | Hex Bolt Price: $4.99 |
| 3 | 734116401 | WASHER BRB 8.4X17 Price: $5.99 |
| 4 | 731231801 | NUT Price: $3.99 |
| 5 | 725246251 | SCREW Price: $4.99 |
| 7 | 579596801 | NEEDS DESCRIPTION Price: Call Us |
| 8 | 584288604 | Washers Price: $3.99 |
| 9 | 725245171 | SCREW Price: $2.08 |
| 10 | 115-3443 | CRANKCASE ASM Price: $1,731.92 |
| 10 | 506987501 | ROD Price: $32.99 |
| 11 | 732211401 | LOCKNUT M5 Price: $2.99 |
| 12 | 506988201 | Rod Price: $12.71 |
| 13 | 506834301 | SPRING Price: $3.99 |
| 14 | 506988401 | TENSIONER Price: $54.99 |
| 15 | 588740401 | BELT TENSIONER ARM Price: $14.99 |
| 16 | 506946901 | PULLEY Price: $34.99 |
| 17 | 725245571 | SCREW Price: $3.99 |
| 18 | 734116441 | SPACER Price: $3.99 |
| 19 | 732211801 | LOCKNUT M8 Price: $3.99 |
| 20 | 594924101 | Springs Price: $3.99 |
| 20 | 98-9398 | CAP-SEALING Price: $6.08 |
| 21 | 506988801 | SCREW Price: $4.96 |
| 22 | 731232001 | Nut Price: $3.99 |
| 23 | 506989001 | TANK Price: $24.99 |
| 24 | 590324701 | TANK CAP ASSY Price: $7.99 |
| 25 | 505131102 | HOSE CLAMP 20-32 Price: $4.99 |
| 30 | 98-7539 | CAP-SEALING Price: $6.44 |
| 40 | 98-9687 | PLUG Price: $2.86 |
| 50 | 105-3779 | PLUG Price: $8.05 |
| 60 | 98-9597 | PLUG Price: $17.66 |
| 70 | 98-7487 | PLUG Price: $3.18 |
| 80 | 98-9379 | PLUG-EXPANSION Price: $0.76 |
| 90 | 98-9668 | PLUG-EXPANSION Price: $2.17 |
| 100 | 98-9375 | PIN-STRAIGHT Price: $0.41 |
| 110 | 98-9377 | PIN-STRAIGHT Price: $1.00 |
| 120 | 98-9376 | PIN-STRAIGHT Price: $0.41 |
| 130 | 98-9387 | PIN-PIPE Price: $2.92 |
| 140 | 98-9539 | PIN-PIPE Price: $1.15 |
| 150 | 98-9599 | PLUG Price: $6.08 |
| 160 | 98-9630 | PIN-SPRING, START Price: $1.47 |
| 170 | 98-9675 | PLUG Price: $8.54 |
| 180 | 98-9656 | BUSHING-GOVERNOR, GEAR Price: $29.04 |
| 190 | 120-2559 | PLUG Price: $1.19 |
| 200 | 98-7428 | GASKET Price: $0.68 |
| 210 | 99-3447 | PLUG Price: $3.11 |
| 220 | 106-7056 | GASKET Price: $1.48 |
