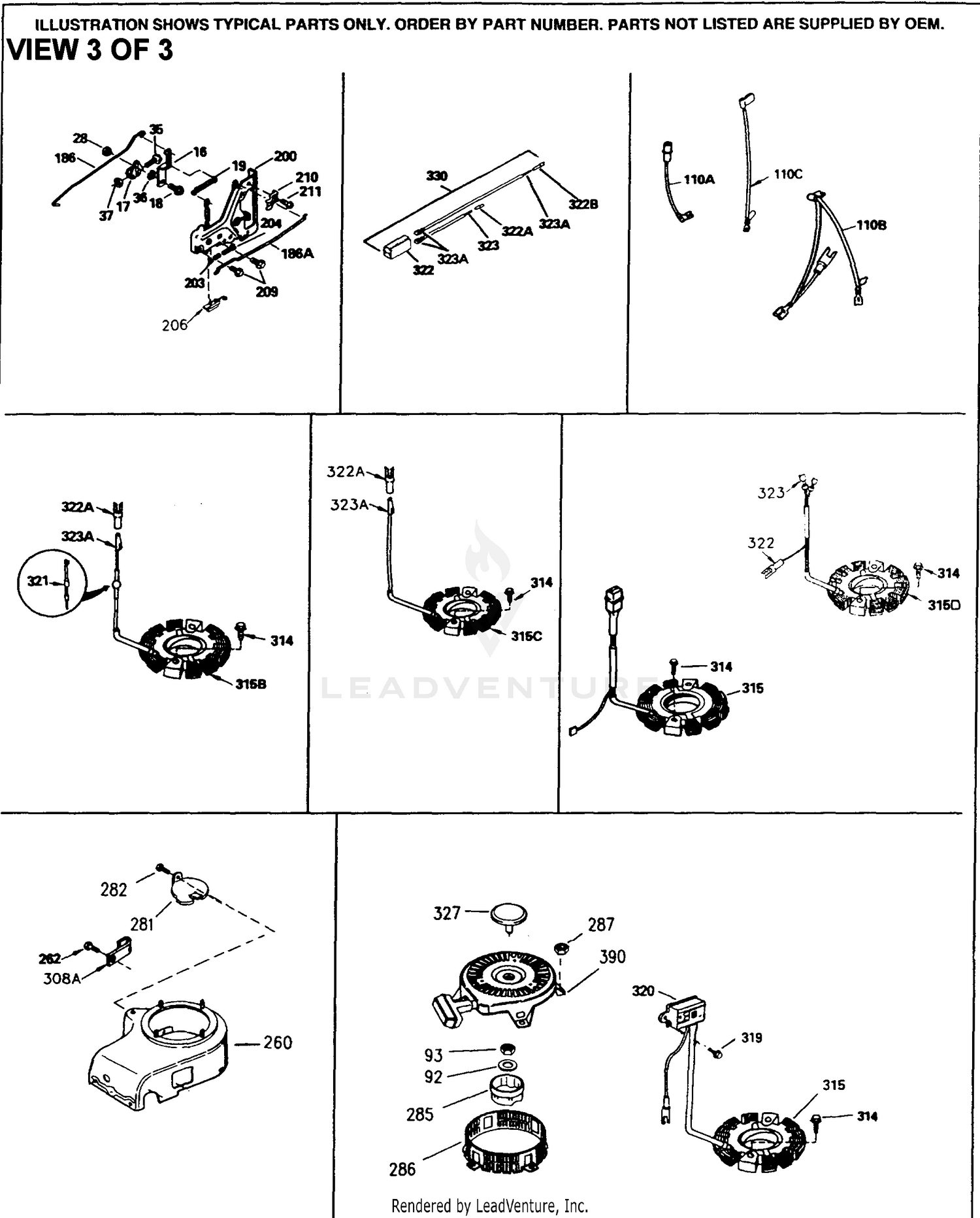

Engine Parts List #3

Engine Parts List #3

Parts (27)

RefPart NumberDescription
16 36284A GOV LEVER This part replaces 36284. Price: $1.19
17 29916 CLAMP Price: $1.26
18 651018 SCREW This part replaces 650548. Price: $1.18
19 35945 EXT SPRING Price: $2.40
28 30322 NUT Price: $1.22
35 29826 SCREW Price: $1.26
36 29918 WASHER Price: $1.26
37 29216 NUT Price: $1.22
92 650880 WASHER Price: $1.20
93 650881 NUT Price: $1.20
186 36285 GOV LINK Price: Call Us
186A 35957 CONTROL LINK Price: $1.26
200 36360 CONTROL ASSY This part replaces 35956. Price: $20.00
203 36482 COMP SPRING Price: $2.80
204 651019 SCREW This part replaces 650777. Price: $1.22
209 650902 SCREW Price: $1.20
210 27793 CLIP Price: $1.26
211 28942 SCREW Price: $0.88
260 36252 BLOWER HSG Price: Call Us
262 29747C SCREW/LOCKWASHER ASSEMBLY This part replaces 29747B. Price: $1.26
281 33013 COVER Price: $2.62
282 650760 SCREW Price: $1.17
285 35985C STARTER CUP This part replaces 35985B. Price: $9.67
287 29752 NUT Price: $1.26
308A 35437 CLIP Price: $1.22
327 35392 STARTER PLUG Price: $1.22
370B 35274 DECAL Price: $1.00
