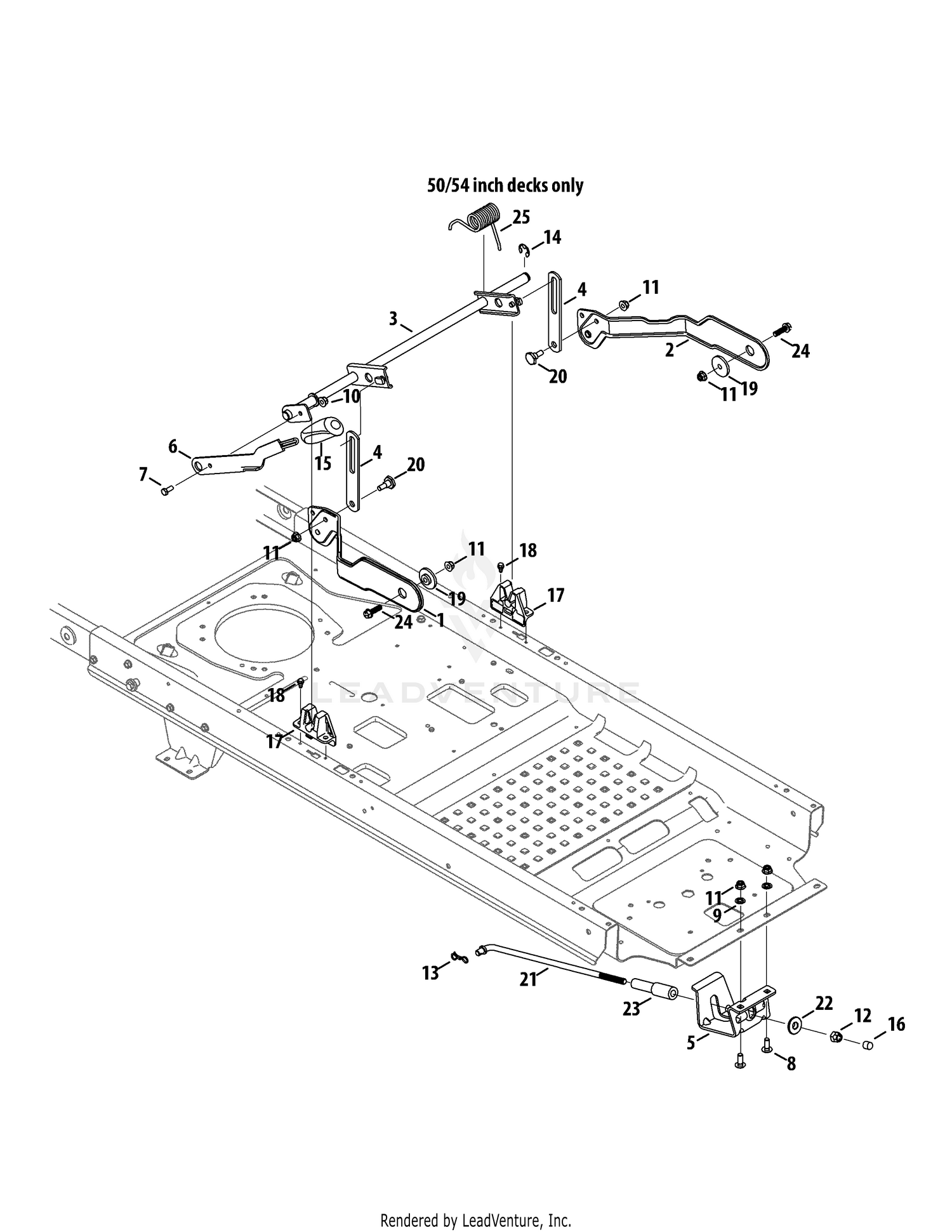

| Ref | Part Number | Description |
|---|
| 1 |
603-05107B-0637 |
DECK LIFT PLATE ASSEMBLY (RH) (POWDER BLACK) This part replaces 603-05107A-0637. Price: $83.99 |
| 2 |
603-05108B-0637 |
DECK LIFT PLATE ASSEMBLY (LH) (POWDER BLACK) This part replaces 603-05108A-0637. Price: $83.99 |
| 3 |
903-05138 |
DECK LIFT SHAFT This part replaces 603-05138. Price: $85.79 |
| 4 |
703-08591A-0637 |
Lift Link Plate Price: $17.68 |
| 5 |
703-08644A-0637 |
FRONT LIFT ROD MOUNTING BRACKET (POWDER BLACK) This part replaces 703-08644-0637. Price: $16.10 |
| 6 |
703Z09621A |
DECK LIFT HANDLE This part replaces 703-09621. Price: $12.96 |
| 7 |
710-3008 |
SCREW 5/16-18 x .75 GR5 Price: $3.76 |
| 8 |
710-3168 |
Carriage Bolt, 3/8-16 x 1.00 Price: $3.61 |
| 9 |
712-0229 |
Push Nut, 3/8 Price: $3.14 |
| 10 |
712-04063 |
Flange Lock Nut, 5/16-18 Price: $3.56 |
| 11 |
712-04065 |
Flange Lock Nut, 3/8-16 Price: $3.68 |
| 12 |
712-05046 |
Hex Nut, 1/2-13 Price: $3.74 |
| 13 |
714-04043 |
Bow-Tie Cotter Pin Price: $4.24 |
| 14 |
716-0231 |
E-ring..75 This part replaces 916-0231. Price: $3.50 |
| 15 |
720-04139B |
Grip, .50 ID Price: $16.45 |
| 16 |
726-05009 |
End Cap Price: $3.70 |
| 17 |
731-08782 |
DECK LIFT BRACKET Price: $7.71 |
| 18 |
738-04278 |
Shoulder Screw, .500 x 1/4-20 Price: $5.99 |
| 19 |
738-05029 |
SHOULDER SPACER -S Price: $8.34 |
| 20 |
738-0507B |
Shoulder Screw, .5D x .434 This part replaces 938-0507B. Price: $3.86 |
| 21 |
747-05552C |
DECK FRONT LIFT ROD This part replaces 747-05552B. Price: $28.06 |
| 22 |
748-04069A |
DECK LIFT PIVOT CUP This part replaces 748-04069. Price: $4.93 |
| 23 |
750-05658 |
Nylon Sleeve, .55 ID x 4.50 LG Price: $5.72 |
| 24 |
710-04683C |
SCREW 3/8-16 x 1 This part replaces 710-04683A. Price: $5.67 |
