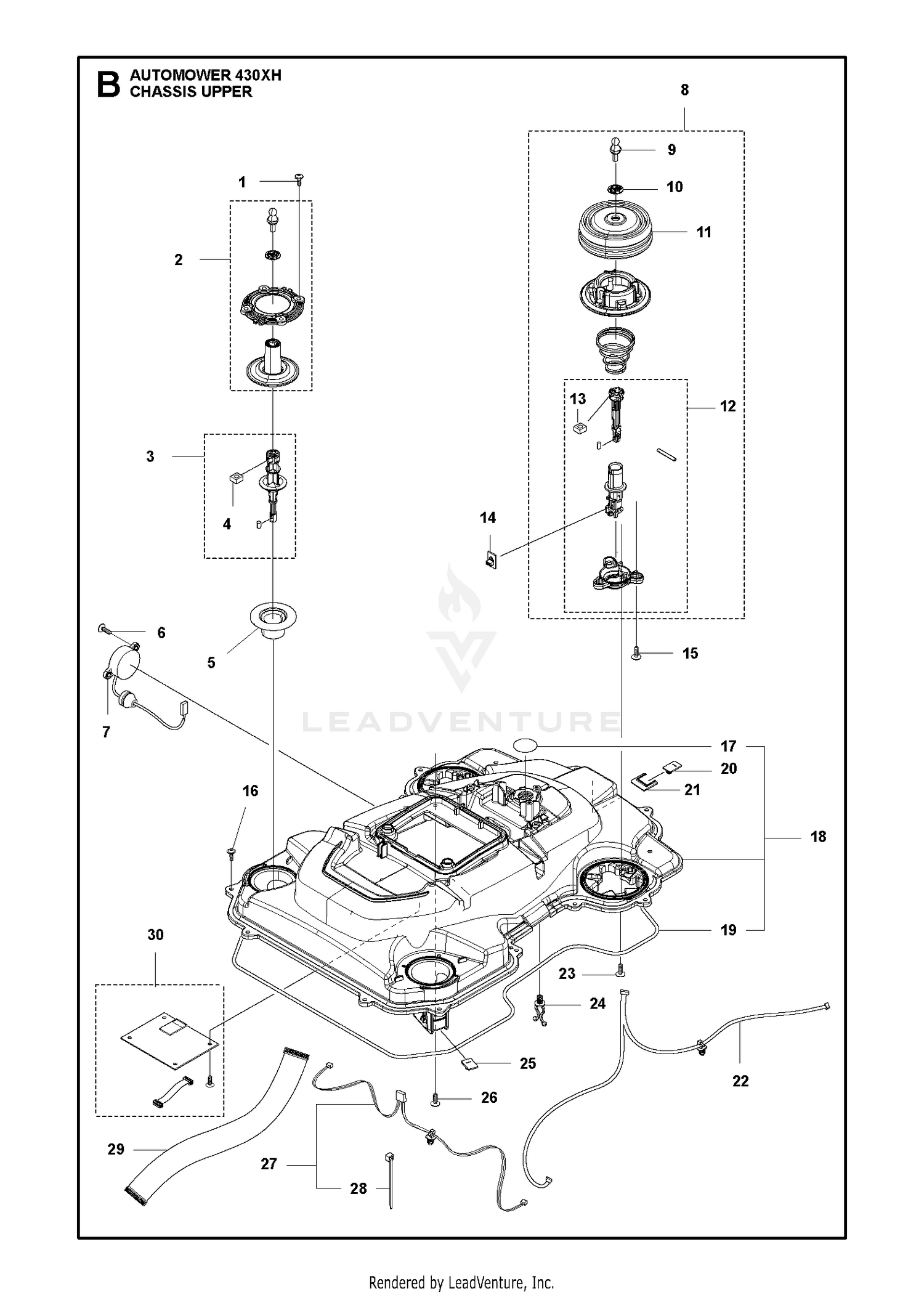

CHASSIS UPPER
Parts (28)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 574450101 | SCREW ITXPANT Price: $3.99 |
| 4 | 503226601 | NUT Price: $3.99 |
| 5 | 535143201 | MOVEMENT LIMITER Price: $9.99 |
| 6 | 575543314 | SCREW 14MM Price: $3.99 |
| 7 | 579706302 | BUZZER ASSY Price: $22.99 |
| 9 | 580526701 | STUD SNAPLOC Price: $2.99 |
| 10 | 115-3446 | CYLINDER HEAD COVER ASM Price: $240.24 |
| 10 | 579525701 | WASHER JOYSTICK Price: $2.99 |
| 11 | 579474601 | BELLOWS LIFT-COLLISION Price: $9.99 |
| 12 | 587448802 | JOYSTICK KIT Price: $19.99 |
| 13 | 503226601 | NUT Price: $3.99 |
| 15 | 575543314 | SCREW 14MM Price: $3.99 |
| 16 | 574450101 | SCREW ITXPANT Price: $3.99 |
| 18 | 581620802 | CHASSIS KIT UPPER Price: $54.99 |
| 21 | 587834901 | CLIP COLLISION BOARD Price: $2.99 |
| 26 | 575543314 | SCREW 14MM Price: $3.99 |
| 28 | 900238708 | BAND Price: $2.99 |
| 30 | 98-9615 | GASKET-COVER, HEAD Price: $20.34 |
| 40 | 110-3715 | VALVE-BREATHER Price: $173.99 |
| 50 | 110-3714 | COVER-BREATHER Price: $22.08 |
| 60 | 98-9364 | SCREW (WITH WASHER) Price: $0.32 |
| 70 | 98-7766 | PIPE-RETURN, WATER Price: $9.95 |
| 80 | 98-9455 | NUT-CAP Price: $4.77 |
| 90 | 98-9454 | GASKET Price: $1.43 |
| 100 | 107-9075 | PLUG-FILLER, OIL Price: $7.25 |
| 110 | 99-3446 | O-RING Price: $7.11 |
| 120 | 107-7836 | TUBE-BREATHER Price: $8.51 |
| 130 | 108-2859 | CLAMP-HOSE Price: $2.19 |
