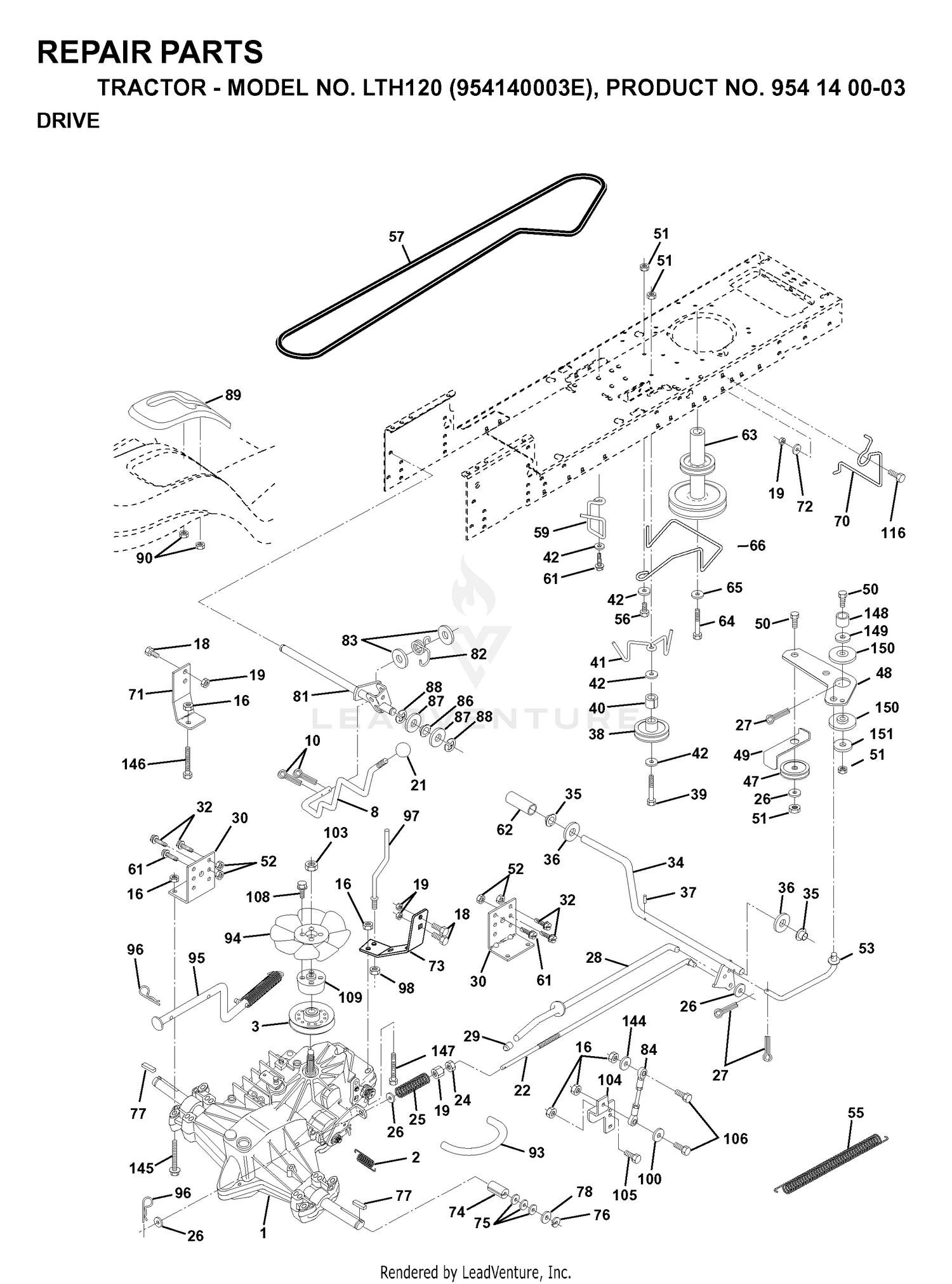

DRIVE
Parts (39)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 115-5300 | PROXIMITY SWITCH ASM Price: $137.95 |
| 1 | 576584901 | AIR FILTER COVER ASSY Price: $27.99 |
| 2 | 3231-2 | BOLT-CARR Price: $0.81 |
| 2 | 544271601 | ELEMENT T401282321 This part replaces 512654101. Price: $14.99 |
| 3 | 104-8301 | NUT-HF, NI Price: $1.09 |
| 3 | 544271501 | ELEMENT T401282311 This part replaces 512652001. Price: $27.99 |
| 5 | 578311401 | HOLDER AIR FILTER Price: $29.99 |
| 7 | 117-8542-01 | PLATE-SWITCH, LH Price: $12.10 |
| 7 | 512848101 | SCREW Price: $2.99 |
| 8 | 117-8541-01 | PLATE-SWITCH, RH Price: $10.51 |
| 8 | 544271901 | CLAMP(F64) Price: $3.99 |
| 9 | 321-3 | SCREW-HH Price: $0.28 |
| 9 | 584642402 | HOSE This part replaces 576585101. Price: $24.99 |
| 10 | 3256-22 | WASHER-FLAT Price: $0.39 |
| 10 | 544274001 | CLAMP(F96) Price: $2.99 |
| 11 | 3296-42 | NUT-LOCK, NI Price: $0.28 |
| 11 | 506673801 | SCREW Price: $2.99 |
| 12 | 321-9 | SCREW-HH Price: $0.27 |
| 12 | 582900001 | PLATE This part replaces 576594901. Price: $4.99 |
| 13 | 117-5606 | HARNESS-WIRE Price: $1,352.16 |
| 13 | 576594701 | PLATE CHOKE Price: $4.99 |
| 14 | 115-8141 | HARNESS-WIRE Price: $141.26 |
| 14 | 515390701 | BOLT Price: $2.99 |
| 15 | 576594501 | CUP ASSY Price: $19.99 |
| 15 | 99-7430 | RELAY-MINI Price: $22.99 |
| 16 | 323-6 | SCREW-HH Price: $0.66 |
| 16 | 516136001 | O-RING Price: $2.99 |
| 17 | 576594801 | LEVER Price: $4.99 |
| 17 | 80-6990 | WASHER-HARDENED Price: $3.06 |
| 18 | 105-4886 | NUT-TINNERMAN Price: $2.37 |
| 19 | 115-9066 | COVER ASM Price: $78.27 |
| 19 | 521631501 | RING Price: $6.99 |
| 20 | 581177001 | CARBURETOR ASSY This part replaces 579629701. Price: $59.99 |
| 20 | 80-9330 | AUDIO ALARM ASM Price: $137.61 |
| 21 | 506744201 | COVER Price: $4.99 |
| 22 | 577089601 | GASKET Price: $2.99 |
| 24 | 576589801 | BOLT Price: $2.99 |
| 25 | 578108401 | INSULATOR Price: $22.99 |
| 26 | 577694801 | GASKET Price: $7.99 |
