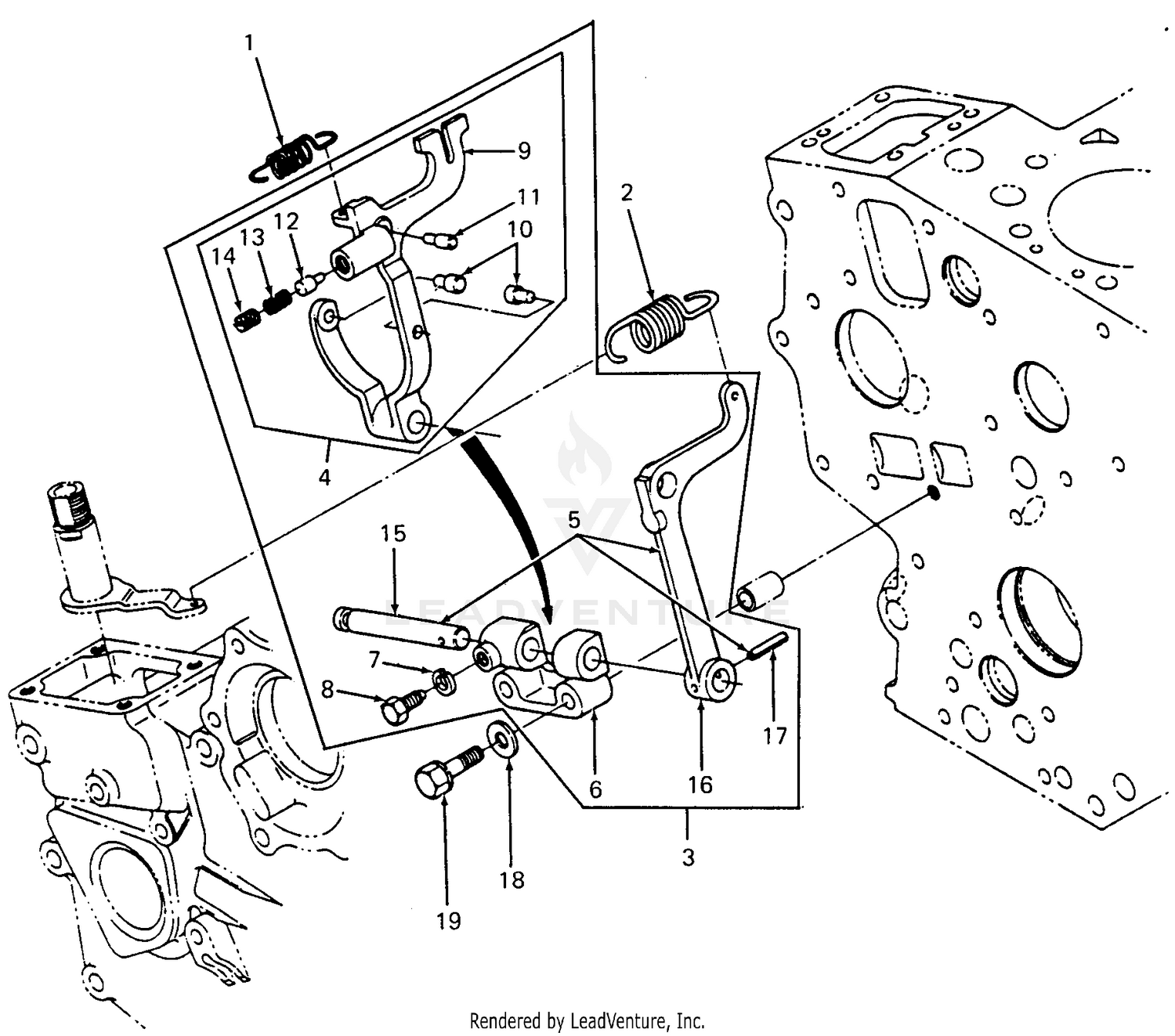

| Ref | Part Number | Description |
|---|
| 1 |
76-1940 |
SPRING-EXTENSION Price: $66.03 |
| 1 |
KB-15841-56480 |
SPRING Not Available Price: |
| 2 |
66-8560 |
NUT-PUSH Price: $5.97 |
| 2 |
KB-15841-56410 |
SPRING Not Available Price: |
| 3 |
76-1910 |
DISCONTINUED Price: Call Us |
| 4 |
92-6533 |
SEAT CUSHION KIT Price: $290.43 |
| 5 |
104-4620 |
SEAT This part replaces 92-1180. Price: $273.15 |
| 6 |
351-78 |
EDGING Price: $60.98 |
| 6 |
KB-15841-56230 |
HOLDER FOR Not Available Price: |
| 7 |
92-6534 |
ORDER COMPLETE SEAT Price: Call Us |
| 7 |
KB-04512-50050 |
WASHER, 5MM LOCK Not Available Price: |
| 8 |
351-80 |
CLIP Price: $8.87 |
| 8 |
KB-15261-66410 |
BOLT Not Available Price: |
| 9 |
76-2940 |
BUMPER Price: $9.73 |
| 10 |
3256-2 |
WASHER-FLAT Price: $0.39 |
| 11 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 12 |
322-3 |
SCREW-HH Price: $0.79 |
| 13 |
603773 |
LOCKNUT This part replaces 32153-2. Price: $2.09 |
| 14 |
76-1920 |
SLEEVE-BEARING Price: $22.50 |
| 15 |
66-8610 |
DISCONTINUED Price: Call Us |
| 15 |
KB-15841-56150 |
SHAFT-FORK Not Available Price: |
| 16 |
108-6702 |
ADJUSTER-SEAT, W/HANDLE This part replaces 66-8510. Price: $239.09 |
| 16 |
KB-15841-56130 |
LEVER-FORK Not Available Price: |
| 17 |
3217-6 |
NUT-HEX Price: $1.19 |
| 17 |
KB-05411-00318 |
PIN Not Available Price: |
| 18 |
3253-33 |
WASHER-LOCK Price: $1.19 |
| 18 |
KB-04012-50060 |
WASHER PLA Not Available Price: |
| 19 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 20 |
3218-2 |
NUT-JAM Price: $0.25 |
| 21 |
108-6703 |
ADJUSTER-SEAT This part replaces 66-8530. Price: $183.47 |
| 22 |
66-9290 |
SPACER-SUSPENSION Price: $3.60 |
| 23 |
32128-25 |
NUT-HF Price: $3.19 |
| 24 |
76-1960 |
KNOB KIT This part replaces 77-2870. Price: $357.33 |
| 25 |
66-8600 |
FRAME-UPPER Price: $327.08 |
| 26 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 27 |
106-1031 |
TENSION ADJUSTER KNOB ASM This part replaces 76-1930. Price: $68.93 |
| 28 |
322-6 |
SCREW-HH Price: $0.45 |
| 29 |
93-3165 |
BRACKET Price: $37.47 |
| 30 |
93-3163 |
SPRING Price: $26.01 |
| 31 |
93-3164 |
CAP Price: $11.64 |
| 32 |
69-1180 |
ARMREST Price: $166.08 |
| 33 |
32128-19 |
NUT-HF Price: $0.99 |
| 34 |
323-9 |
SCREW-HH Price: $1.29 |
| 35 |
3234-14 |
SCREW-HHF Price: $0.61 |
| 36 |
69-0770 |
BRACKET-ARM, RH Price: $117.82 |
| 501451601 |
501451601 |
SUPPORT BUSHING Price: $11.99 |
| 503289005 |
503289005 |
PISTON RING Price: $17.99 |
| 503289045 |
503289045 |
PISTON RING Price: $24.99 |
| 503552201 |
503552201 |
CYLINDER PLUG Price: $6.99 |
| 503907371 |
503907371 |
PISTON ASSY Price: $89.99 |
| 503952701 |
502438001 |
GASKET This part replaces 503952701. Price: $3.99 |
| 503956302 |
505034804 |
CYLINDER ASSY This part replaces 503956302. Price: $149.99 |
| 503956402 |
505108502 |
CYLINDER ASSY This part replaces 503956402. Price: $229.99 |
| 504340004 |
504340004 |
NIPPLE Price: $5.99 |
| 537096101 |
537096101 |
SLEEVE Price: $5.99 |
| 537098605 |
537098605 |
HOSE Price: $8.99 |
| 537137001 |
537137001 |
NIPPLE Price: $4.99 |
| 537143701 |
537306501 |
VALVE This part replaces 537143701. Price: $29.99 |
| 537159402 |
537159402 |
PISTON ASSEMBLY Price: $84.99 |
| 537180001 |
537180001 |
PROTECTIVE CAP Price: $3.99 |
| 537222901 |
537222901 |
SCREW Price: $2.99 |
| 537244501 |
537244501 |
HOSE CLIP Price: $4.99 |
| 725533155 |
525824902 |
SCREW ITXSCM This part replaces 725533155. Price: $2.99 |
