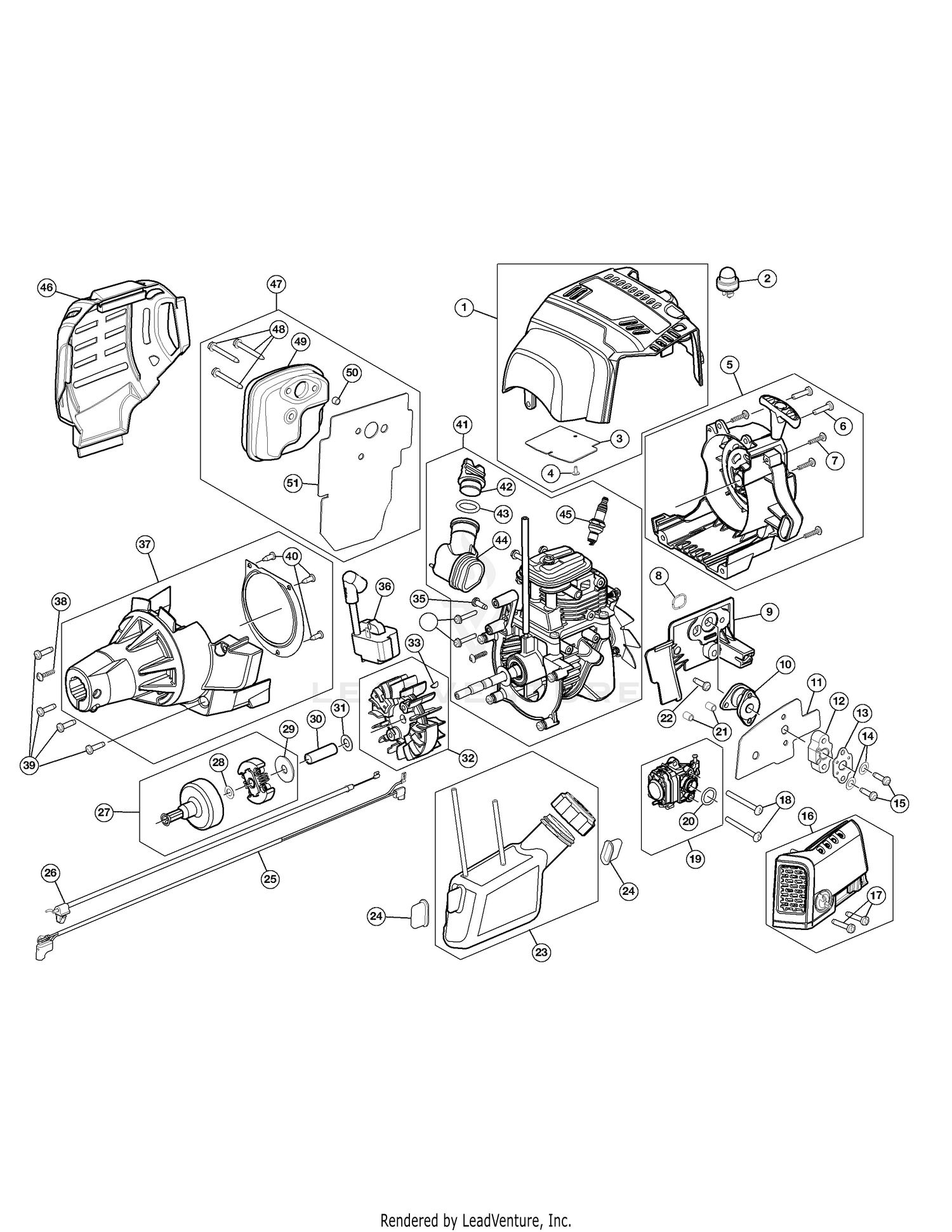

| Ref | Part Number | Description |
|---|
| 1 |
753-08116 |
Top Housing Assembly Price: $16.30 |
| 2 |
49MFLRKK953 |
UNIVERSAL FUEL LINE KIT This part replaces 731-05509. Price: $17.91 |
| 3 |
721-04636 |
Top Cover Gasket Price: $2.13 |
| 4 |
710-05279A |
Screw Price: $2.32 |
| 5 |
753-08110 |
RECOIL ASSEMBLY AC8 Not Available Price: |
| 6 |
9054 |
Screw This part replaces 791-181020. Price: $3.82 |
| 7 |
710-04194 |
Screw Price: $3.66 |
| 8 |
721-04466 |
O-RING AC8 Not Available Price: |
| 9 |
731-08365 |
Intake Port Price: $3.19 |
| 10 |
753-08053 |
Boot Assembly Price: $18.74 |
| 11 |
721P04630 |
CARBURETOR GASKET This part replaces 721-04630. Price: $2.29 |
| 12 |
753-06938 |
Insulator This part replaces 731-08857A. Price: $2.78 |
| 13 |
791-181709 |
Insulator Gasket Price: $4.30 |
| 14 |
791-182409 |
Washer Price: $4.04 |
| 15 |
9052-1 |
SCREW, M5 X18 This part replaces 791-181003. Price: $3.78 |
| 16 |
753-08111 |
AIR CLEANER ASSEMBLY Not Available Price: |
| 17 |
710-06106 |
Screw Price: $2.32 |
| 18 |
710-04517 |
Screw Price: $4.71 |
| 19 |
753-08057 |
Carburetor Assembly Price: $31.95 |
| 20 |
791-181751 |
O-Ring Price: $3.92 |
| 21 |
750-05471 |
Air Cleaner Spacer Price: $2.32 |
| 22 |
9052-1 |
SCREW, M5 X18 This part replaces 791-181003. Price: $3.78 |
| 23 |
941-031506S |
FUEL TANK ASSEMBLY Not Available Price: |
| 24 |
753-05259 |
Fuel Tank Pad Price: $5.72 |
| 25 |
794-00047A |
Lead Wire This part replaces 753-06167. Price: $4.92 |
| 26 |
746-05053 |
Throttle Cable Not Available Price: |
| 27 |
753-05860 |
Clutch Assembly Price: $22.50 |
| 28 |
6674 |
Thrust Washer This part replaces 791-182569. Price: $3.05 |
| 29 |
9162-1 |
Clutch Washer Price: $3.91 |
| 30 |
2557 |
Power Shaft Spacer Not Available Price: |
| 31 |
736-0314 |
Thrust Washer .382 ID x .684 OD This part replaces 936-0314. Price: $6.01 |
| 32 |
753-06246 |
Flywheel Assembly Price: $19.20 |
| 33 |
914-04016 |
Key Price: $3.82 |
| 34 |
7826 |
Screw Price: $2.16 |
| 35 |
9054 |
Screw This part replaces 791-181020. Price: $3.82 |
| 36 |
753-08351 |
MODULE ASSEMBLY Not Available This part replaces 725-06012. Price: |
| 37 |
753-08056 |
CLUTCH COVER ASSEMBLY Not Available Price: |
| 38 |
710-04194 |
Screw Price: $3.66 |
| 39 |
710-04604A |
SCREW M5X0.8 This part replaces 710-04604. Price: $3.63 |
| 40 |
1755 |
Screw Price: $3.37 |
| 41 |
941-012021S |
Short Block Assembly This part replaces 753-08113. Price: $114.37 |
| 42 |
731-08920A-9 |
Oil Fill Plug This part replaces 731-08920-9. Price: $2.29 |
| 43 |
721-04509 |
O-Ring Price: $2.29 |
| 44 |
753-08204 |
OIL FILL TUBE ASSEMBLY This part replaces 941-031509S. Price: $10.52 |
| 45 |
794-00082 |
Spark Plug This part replaces 794-00043. Price: $6.35 |
| 46 |
753-08338 |
MUFFLER HOUSING Not Available This part replaces 731-08903-1. Price: |
| 47 |
753-08115 |
MUFFLER ASSEMBLY AC8 Not Available Price: |
| 48 |
710-04809 |
SCREW M5 x 44MM This part replaces 710-04487. Price: $2.83 |
| 49 |
753-08052 |
MUFFLER ASSEMBLY Not Available Price: |
| 50 |
750-06057 |
SPACER Not Available Price: |
| 51 |
721-04633 |
MUFFLER GASKET Not Available Price: |
