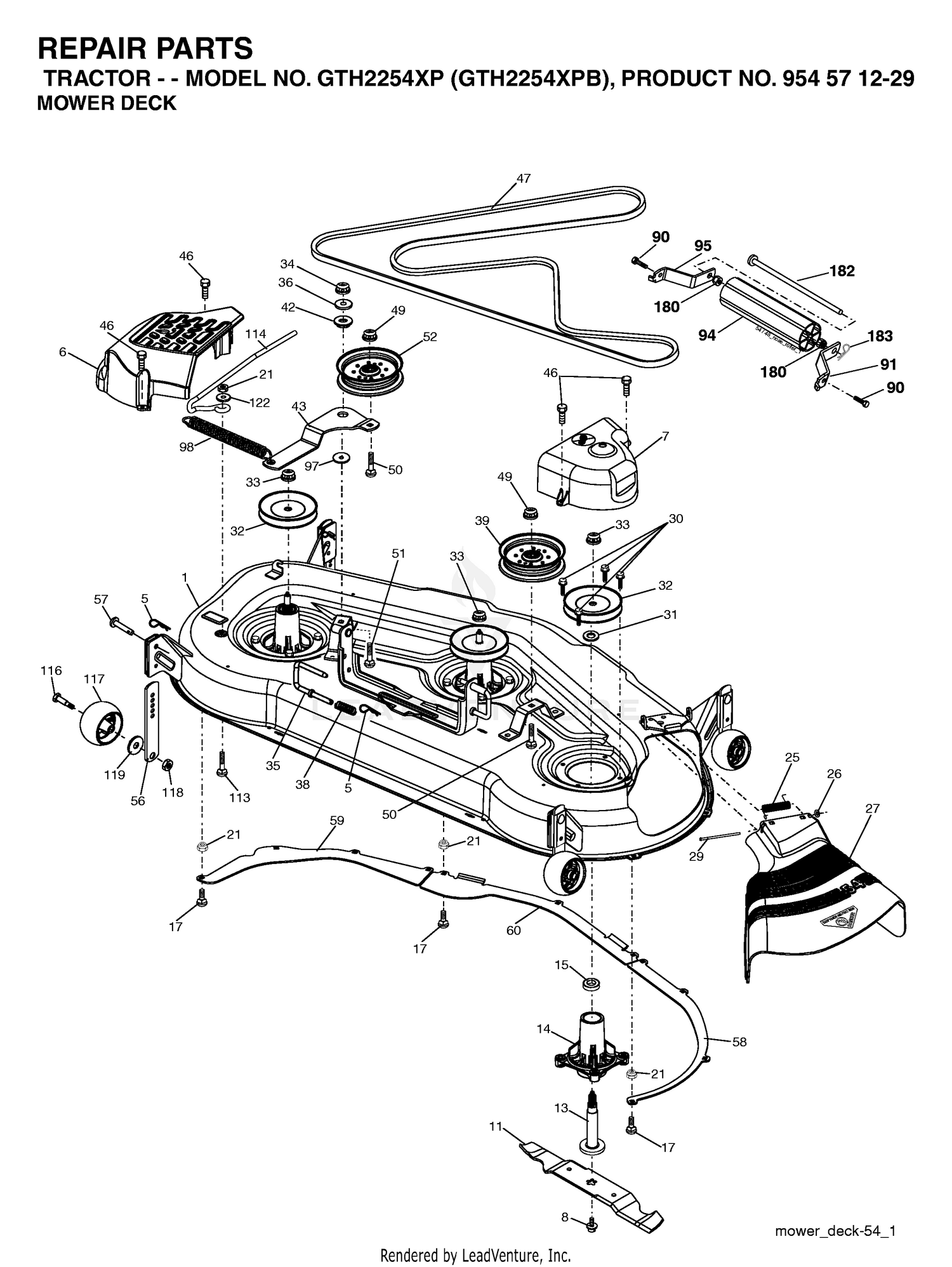

| Ref | Part Number | Description |
|---|
| 1 |
323-4 |
SCREW-HH Price: $1.02 |
| 2 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 3 |
323-5 |
SCREW-HH Price: $0.41 |
| 4 |
3217-7 |
NUT-HEX Price: $0.28 |
| 5 |
3296-23 |
NUT-LOCK, NI Price: $0.52 |
| 5 |
532124670 |
RETAINER-SPRNG RB Price: $5.99 |
| 6 |
13-6460 |
WHEEL-CASTER Price: $238.80 |
| 6 |
532187297 |
COVER.MANDREL.LH.DECK.54" Price: $27.99 |
| 7 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 7 |
532188187 |
COVER.MANDREL.RH.DECK.54" Price: $27.99 |
| 8 |
13-6450-01 |
CASTER This part replaces 13-6450. Price: $242.02 |
| 8 |
532193003 |
BOLT.WASHER.ASM.7/16-2 This part replaces 532174365. Price: $6.99 |
| 9 |
325-13 |
SCREW-HH Price: $3.57 |
| 10 |
13-5680 |
JACK This part replaces 13-6750. Price: $396.42 |
| 11 |
13-3510 |
BEARING-THRUST Price: $25.53 |
| 12 |
13-3610 |
SLEEVE-FELT Price: $9.36 |
| 13 |
13-5680 |
JACK Price: $396.42 |
| 13 |
597023501 |
MANDRELS This part replaces 532187291. Price: $24.99 |
| 14 |
13-6730 |
RIVET Price: $0.25 |
| 14 |
587819701 |
KIT.MANDREL.NONGREASE.TALL This part replaces 532187281. Price: $49.99 |
| 15 |
13-6740 |
HANDLE Price: $27.49 |
| 15 |
532110485 |
BEARING Price: $11.99 |
| 17 |
596039401 |
BOLT ROUND HEAD SQUARE NECK BO This part replaces 872110505. Price: $2.99 |
| 21 |
596040501 |
Hardware This part replaces 873680500. Price: $2.99 |
| 25 |
539107609 |
TORSION SPRING This part replaces 532178102. Price: $4.99 |
| 26 |
532110452 |
NUT PUSH M Price: $2.99 |
| 27 |
532187257 |
DEFLECTOR.BLACK.54" This part replaces 532188938. Price: $64.99 |
| 28 |
819111016 |
Washer 11/32 x 5/8 x 16 Ga SD Price: $5.99 |
| 29 |
595297001 |
Rods This part replaces 532131491. Price: $4.99 |
| 30 |
584953901 |
BOLT.HEX.WASHR.HED.313-18X1.19 This part replaces 532173984. Price: $3.99 |
| 31 |
532187690 |
WASHER.SPACER.MANDREL Price: $3.99 |
| 32 |
532173436 |
PULLEY MANDREL Price: $14.99 |
| 33 |
596134801 |
Nuts This part replaces 532178342. Price: $1.00 |
| 34 |
596322601 |
Nuts This part replaces 873680600. Price: $2.99 |
| 35 |
532188635 |
PIN.SUSPENSION.REAR.54" Price: $21.99 |
| 36 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 819131316. Price: $2.99 |
| 38 |
532188657 |
SPRING COMPRESSION PULL Price: $4.99 |
| 39 |
532187284 |
PULLEY.IDLER.STATIONARY Price: $49.99 |
| 41 |
532187557 |
BUSHING.RELIEF.TENSION Price: $7.99 |
| 42 |
532165723 |
SPACER.RETAINER.MOWER This part replaces 532122052. Price: $5.99 |
| 43 |
532196216 |
ARM.IDLER.54" This part replaces 532187278. Price: $129.99 |
| 46 |
532137729 |
SCREW.1/4-20X5/8 Price: $3.99 |
| 47 |
584451901 |
V-BELT.54".HIGH-PERFORMANCE This part replaces 532191273. Price: $79.99 |
| 49 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 50 |
596136301 |
Bolts This part replaces 872110616. Price: $2.99 |
| 51 |
596987501 |
Bolts This part replaces 872110610. Price: $3.99 |
| 52 |
532188460 |
IDLER PULLEY Price: $43.99 |
| 56 |
532155986 |
BAR.ADJUST.WHEEL.ANTI.SCALP.BL Price: $17.99 |
| 57 |
532156941 |
RIVET.PIN.HEAD.YELLOW. Price: $4.99 |
| 58 |
531168601 |
SERVICE KIT BAFFLE.RIGHT.54" This part replaces 532187342. Price: $12.99 |
| 59 |
531168701 |
SERVICE KIT BAFFLE.LEFT.54" BA This part replaces 532187344. Price: $19.99 |
| 60 |
531168801 |
SERVICE KIT BAFFLE BAFFLE CENT This part replaces 532187607. Price: $19.99 |
| 90 |
596580801 |
Bolts This part replaces 874760516. Price: $2.99 |
| 91 |
529846201 |
SERVICE KIT BRKT.NOSEROLLER.RH This part replaces 532180535. Price: $5.99 |
| 94 |
532176066 |
NOSE ROLLER 48" Price: $11.99 |
| 95 |
529846101 |
SERVICE KIT BRKT.NOSEROLLER.LH This part replaces 532180534. Price: $5.99 |
| 97 |
596135501 |
Washers This part replaces 819133210. Price: $4.99 |
| 98 |
532187282 |
SPRING.CLUTCH.DRIVE.54 Price: $11.99 |
| 102 |
596039001 |
Screws This part replaces 871081010. Price: $2.99 |
| 103 |
810071000 |
LOCKWASHER #10 Price: $3.99 |
| 104 |
819061216 |
WASHER Price: $3.99 |
| 105 |
596987401 |
Nuts This part replaces 532125004. Price: $2.99 |
| 113 |
596435701 |
Bolts This part replaces 872110508. Price: $2.99 |
| 114 |
532187556 |
ROD TENSION RELIEF Price: $17.99 |
| 116 |
596434404 |
Bolts This part replaces 532184219. Price: $4.99 |
| 117 |
532133957 |
WHEEL GAGE DONUT Price: $11.99 |
| 118 |
596322601 |
Nuts This part replaces 873930600. Price: $2.99 |
| 119 |
596134901 |
GSPH This part replaces 819121414. Price: $2.99 |
| 122 |
532187557 |
BUSHING.RELIEF.TENSION Price: $7.99 |
| 180 |
596040501 |
Hardware This part replaces 873800500. Price: $2.99 |
| 182 |
594092501 |
Rods This part replaces 532179127. Price: $5.99 |
| 183 |
532003146 |
SPRING RETAINER This part replaces 532163552. Price: $2.99 |
