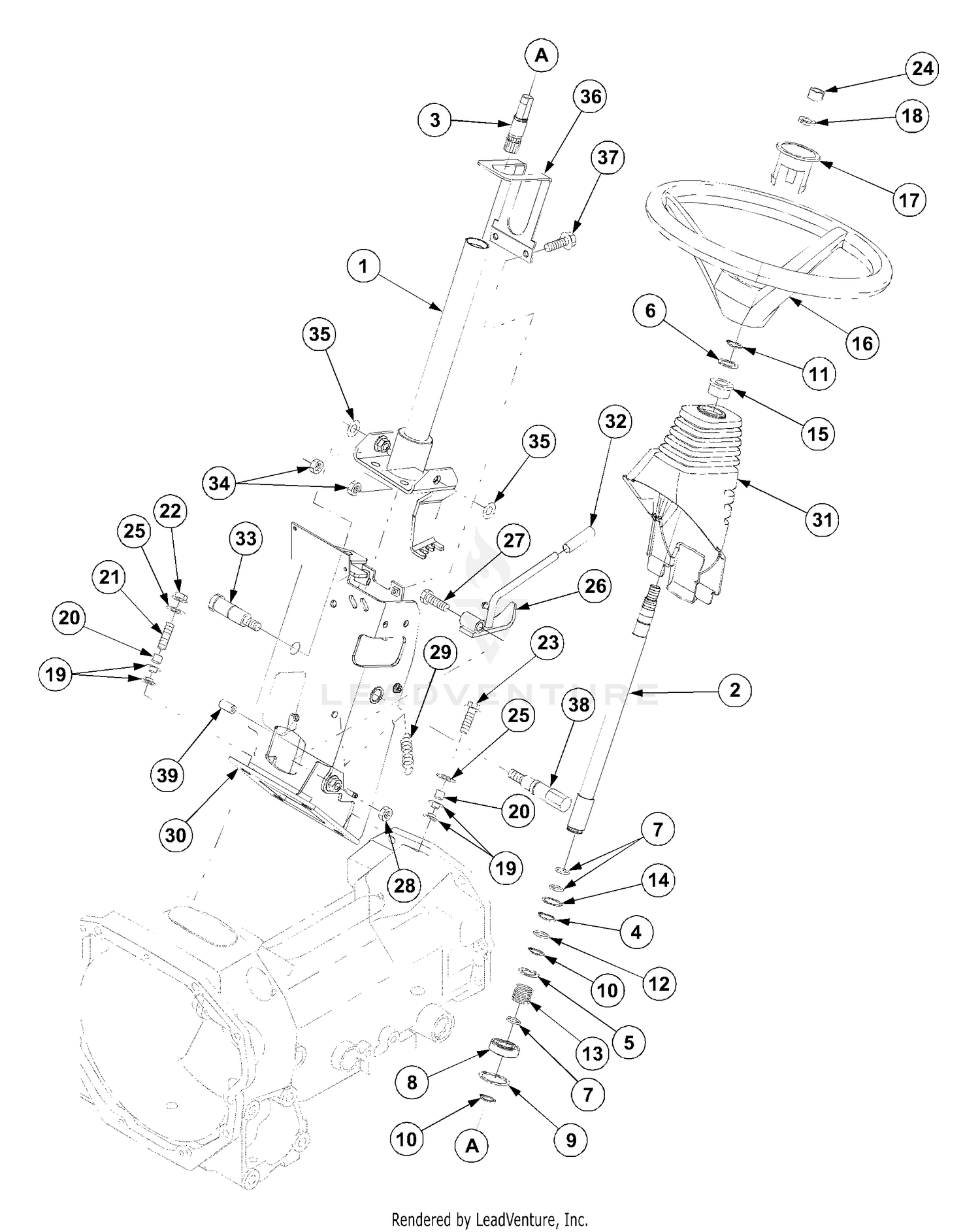

Steering (Part 1)
Parts (45)
| Ref | Part Number | Description |
|---|---|---|
| 1 | MA-19572202AG0 | MAST-STEER Not Available Price: |
| 2 | MA-19572203000 | STEERING SHAFT Not Available Price: |
| 3 | MA-10442204000 | COUPLER-STEERING SHAFT Not Available Price: |
| 4 | MA-07400102200 | RING, SNAP Not Available Price: |
| 5 | MA-07310102016 | LINER T=1. Not Available Price: |
| 6 | MA-07310102016 | LINER T=1. Not Available Price: |
| 7 | MA-08300100160 | O-RING Not Available Price: |
| 8 | MA-07500560044 | Bearing,Ball Not Available Price: |
| 9 | MA-07410004201 | SNAP RING Not Available This part replaces MA-07410104201. Price: |
| 10 | MA-07400001900 | SNAP RING Not Available This part replaces MA-07400101900. Price: |
| 11 | MA-07400001900 | SNAP RING Not Available This part replaces MA-07400101900. Price: |
| 12 | MA-08300100180 | O-RING Not Available Price: |
| 13 | MA-39510814000 | SPRING-STRG SHAFT Not Available Price: |
| 14 | MA-10401295000 | WASHER-SHI Not Available Price: |
| 15 | 530403257 | LEAD WIRE ASSY Price: $4.99 |
| 15 | MA-10442291001 | BUSHING-STEERING SHAFT Not Available This part replaces MA-10442291000. Price: |
| 16 | 530015896 | SCREW Price: $4.99 |
| 16 | MA-10442205000 | WHEEL ASSEMBLY-STEERING Not Available This part replaces MA-10442206000. Price: |
| 17 | 503717901 | SWITCH ON/OFF Price: $12.99 |
| 17 | MA-10442207000 | CAP-STEERING WHEEL Not Available Price: |
| 18 | 530059637 | FLYWHEEL ASSY Price: $32.99 |
| 18 | MA-A3600101402 | WASHER,SPRING Not Available Price: |
| 19 | 530015127 | WASHER-FLYWHEEL Price: $3.99 |
| 19 | MA-10366076000 | ISOMOUNT-R Not Available Price: |
| 20 | 530016134 | NUT-FLYWHEEL Price: $3.99 |
| 20 | MA-10373021000 | BUSHING Not Available Price: |
| 21 | 530015895 | SCREW,IGN MOD 36/41 Price: $2.99 |
| 21 | MA-A0620110025 | BOLT-STUD Not Available Price: |
| 22 | MA-F3010110000 | FLANGE NUT Not Available Price: |
| 23 | MA-F1540110035 | BOLT W/WASHER Not Available Price: |
| 24 | MA-A3030114002 | NUT Not Available Price: |
| 25 | MA-03500151026 | WASHER Not Available Price: |
| 26 | MA-19572255AG0 | LEVER-STEERING TILT Not Available Price: |
| 27 | MA-A0520112060 | BOLT Not Available Price: |
| 28 | MA-A3010112002 | NUT Not Available Price: |
| 29 | MA-27722333010 | SPRING-TILT LEVER Not Available Price: |
| 30 | MA-19572201AG2 | BRACKET-STEERING MAST Not Available This part replaces MA-19572201AG0. Price: |
| 31 | MA-19572218000 | BOOT-STEERING MAST Not Available Price: |
| 32 | MA-14212284000 | GRIP Not Available Price: |
| 33 | MA-19572216000 | BOLT-STEER Not Available Price: |
| 34 | MA-A3010112003 | NUT Not Available Price: |
| 35 | MA-07310102010 | LINER Not Available Price: |
| 36 | MA-19572258AG0 | PLATE-STEERING Not Available Price: |
| 37 | MA-H1940106016 | BOLT Not Available This part replaces MA-H1640406016. Price: |
| 38 | MA-19572217000 | BOLT-STEER Not Available Price: |
