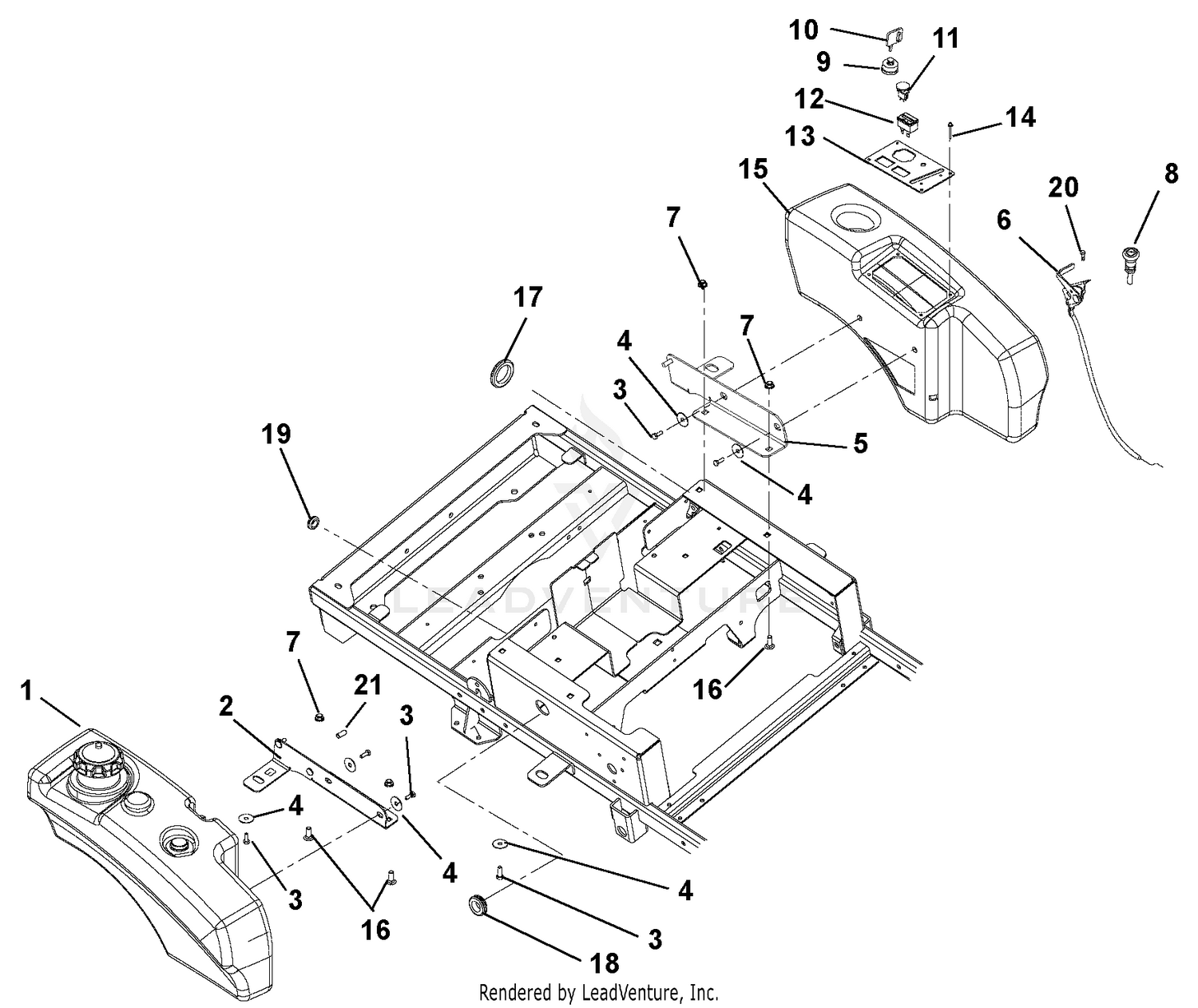

| Ref | Part Number | Description |
|---|
| 1 |
04430400 |
TANK,ASSEMBLY XL CE Price: $327.95 |
| 2 |
04718053 |
WLDMT, RH TANK MOUNT Price: $40.45 |
| 3 |
07049500 |
BLT-SERHFWH .312-18X.50 YWZC Price: $2.45 |
| 4 |
06401105 |
WSHR, FLT .347X1.254X.048 ZCC This part replaces 06446900. Price: $2.45 |
| 5 |
04718153 |
WLDMT, LH FENDER MOUNT Price: $40.45 |
| 6 |
06900315 |
CABLE-THROTTLE Price: $49.95 |
| 7 |
06500726 |
NUT,NYL-FLG .38-16 GF ZCC This part replaces 06545500. Price: $1.45 |
| 8 |
06900323 |
CABLE, CHOKE Price: $62.45 |
| 9 |
01588300 |
KEY SWITCH Price: $28.95 |
| 10 |
02460700 |
KEY -W/CAP Price: $9.45 |
| 11 |
01545600 |
SWITCH, CLUTCH Price: $23.95 |
| 12 |
09497400 |
HOUR METER This part replaces 03966800. Price: $22.45 |
| 13 |
02975751 |
CONTROL PANEL Price: $35.95 |
| 14 |
06830000 |
RIVET, PLASTIC .195 DIA. Price: $1.95 |
| 15 |
02967400 |
FENDER, XL Price: $134.45 |
| 16 |
06200313 |
BLT, RHSN .38-16X1.00 G5 ZCC This part replaces 06223600. Price: $2.45 |
| 17 |
07500017 |
GROMMET 1.70ID X 2.0OD Price: $4.95 |
| 18 |
07506500 |
GROMMET 1.0ID X 1.38 OD Price: $3.45 |
| 19 |
07500031 |
GROMMET,RUBBER 5/8 ID/1.13 OD Price: $3.45 |
| 20 |
07400130 |
SCR,TAP #10-24X.50 HWH TR ZCC This part replaces 07415800. Price: $1.95 |
