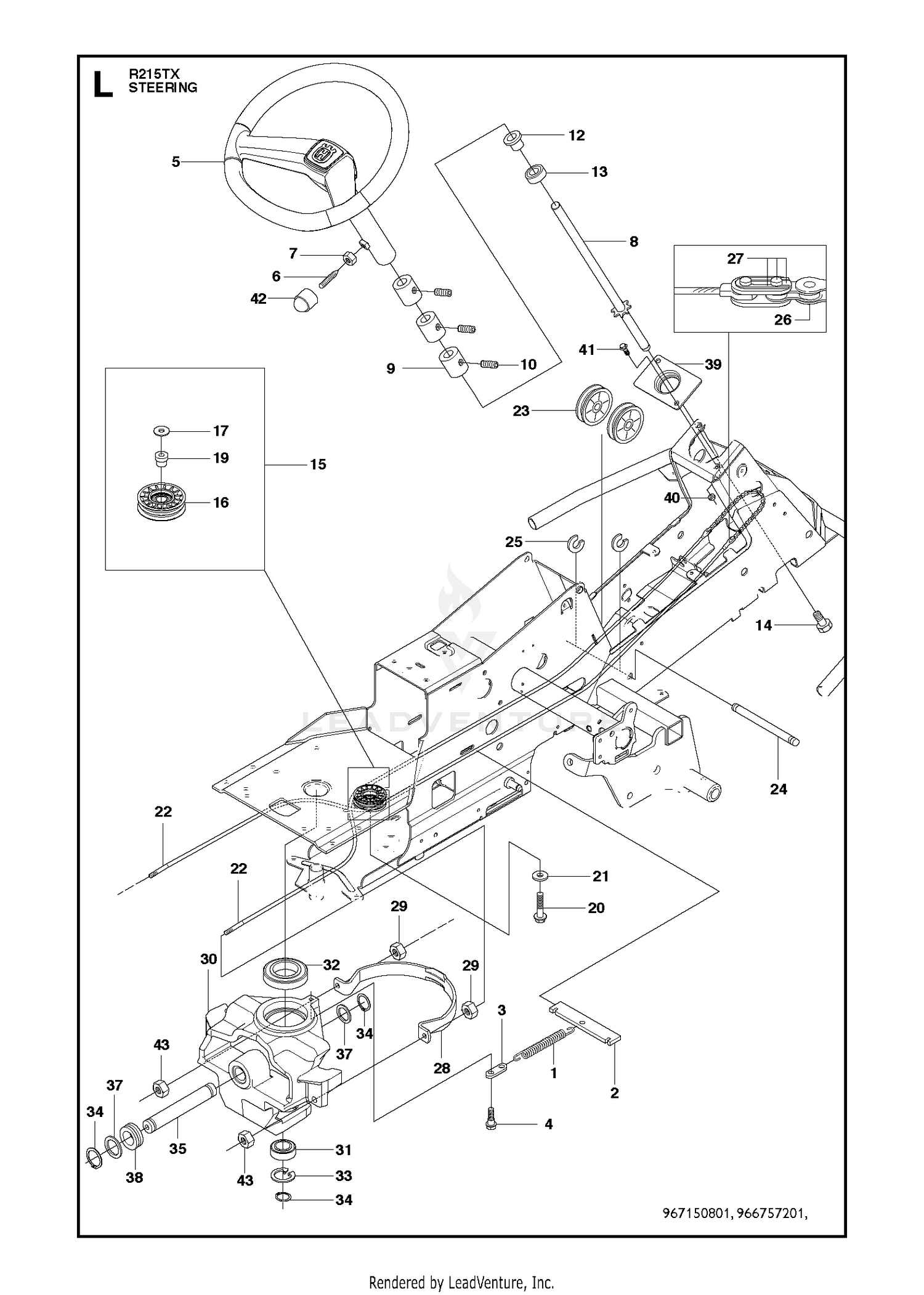

STEERING
Parts (55)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 506671901 | SPRING Price: $22.99 |
| 2 | 590735401 | Brackets This part replaces 506576301. Price: $12.99 |
| 3 | 506670801 | CONNECTOR Price: $6.99 |
| 4 | 506597401 | BOLT Price: $5.99 |
| 5 | 577960402 | STEERING WHEEL Price: $64.99 |
| 6 | 728745505 | SCREW Price: $3.99 |
| 7 | 731231801 | NUT Price: $3.99 |
| 8 | 575631901 | STEERING ROD Price: $44.99 |
| 9 | 587080901 | DRIVER STEERING WHEEL This part replaces 506863401. Price: $7.99 |
| 10 | 112-0185 | TAPPET Price: $25.58 |
| 10 | 728844305 | Screw Price: $1.99 |
| 13 | 738210404 | BALL BEARING 6004-2RS1 Price: $9.99 |
| 14 | 506570104 | BOLT Price: $4.99 |
| 15 | 576492501 | PULLEY Price: $44.99 |
| 16 | 576269101 | NEEDS DESCRIPTION Price: Call Us |
| 17 | 735314010 | CIRCLIP SGH 47 Price: $4.99 |
| 19 | 576487301 | Price: Call Us |
| 20 | 127-0421 | ROD-PUSH Price: $5.90 |
| 20 | 506675403 | COLLAR SCREW Price: $2.29 |
| 21 | 734117441 | WASHER Price: $3.99 |
| 22 | 501604804 | WIRE ASSY This part replaces 577199904. Price: $17.99 |
| 23 | 506522401 | ROLLER Price: $9.99 |
| 24 | 506539404 | SHAFT Price: $14.99 |
| 25 | 735311420 | RETAINING RING Price: $2.99 |
| 26 | 506554601 | STEERING CHAIN Price: $17.99 |
| 27 | 506554701 | LINK Price: $4.99 |
| 28 | 544427301 | WIRE GUIDE Price: $29.99 |
| 29 | 731232001 | Nut This part replaces 731232051. Price: $3.99 |
| 30 | 120-3116 | CAMSHAFT ASM Price: $543.79 |
| 30 | 577659301 | SPINDLE Price: $159.99 |
| 31 | 738210504 | Ball Bearing 6005-2rs Price: $28.99 |
| 32 | 738211004 | BALL BEARING 6010 2RS1 Price: $39.99 |
| 33 | 735314010 | CIRCLIP SGH 47 Price: $4.99 |
| 34 | 735312600 | RETAINING RING SGA 25 Price: $2.99 |
| 35 | 506985901 | SHAFT Price: $44.99 |
| 37 | 506773401 | WASHER Price: $3.99 |
| 38 | 740681421 | V-RING Price: $3.99 |
| 39 | 578065201 | BRACKET Price: $9.99 |
| 40 | 110-3729 | BALL Price: $0.69 |
| 40 | 732212001 | NUT This part replaces 732212051. Price: $3.99 |
| 41 | 506675403 | COLLAR SCREW Price: $2.29 |
| 42 | 544433201 | PROTECTIVE COVER Price: $3.99 |
| 43 | 732212001 | NUT This part replaces 732212051. Price: $3.99 |
| 50 | 98-9512 | GEAR-CAM Price: $246.18 |
| 60 | 98-9378 | KEY-FEATHER Price: $1.23 |
| 70 | 98-9510 | STOPPER-CAMSHAFT Price: $12.25 |
| 80 | 98-7692 | BOLT Price: $0.92 |
| 90 | 117-7584 | IDLER GEAR ASM Price: $240.81 |
| 100 | 117-7585 | BUSHING-GEAR, IDLE Price: $9.36 |
| 105 | 130-1259 | IDLER GEAR ASM Price: $115.98 |
| 107 | 117-7585 | BUSHING-GEAR, IDLE Price: $9.36 |
| 110 | 98-9535 | COLLAR-GEAR, IDLE Price: $2.37 |
| 120 | 98-9536 | COLLAR-GEAR, IDLE Price: $3.41 |
| 130 | 98-9534 | CIRCLIP-GEAR, IDLE Price: $1.69 |
| 140 | 98-9533 | SHAFT-GEAR, IDLE Price: $101.45 |
