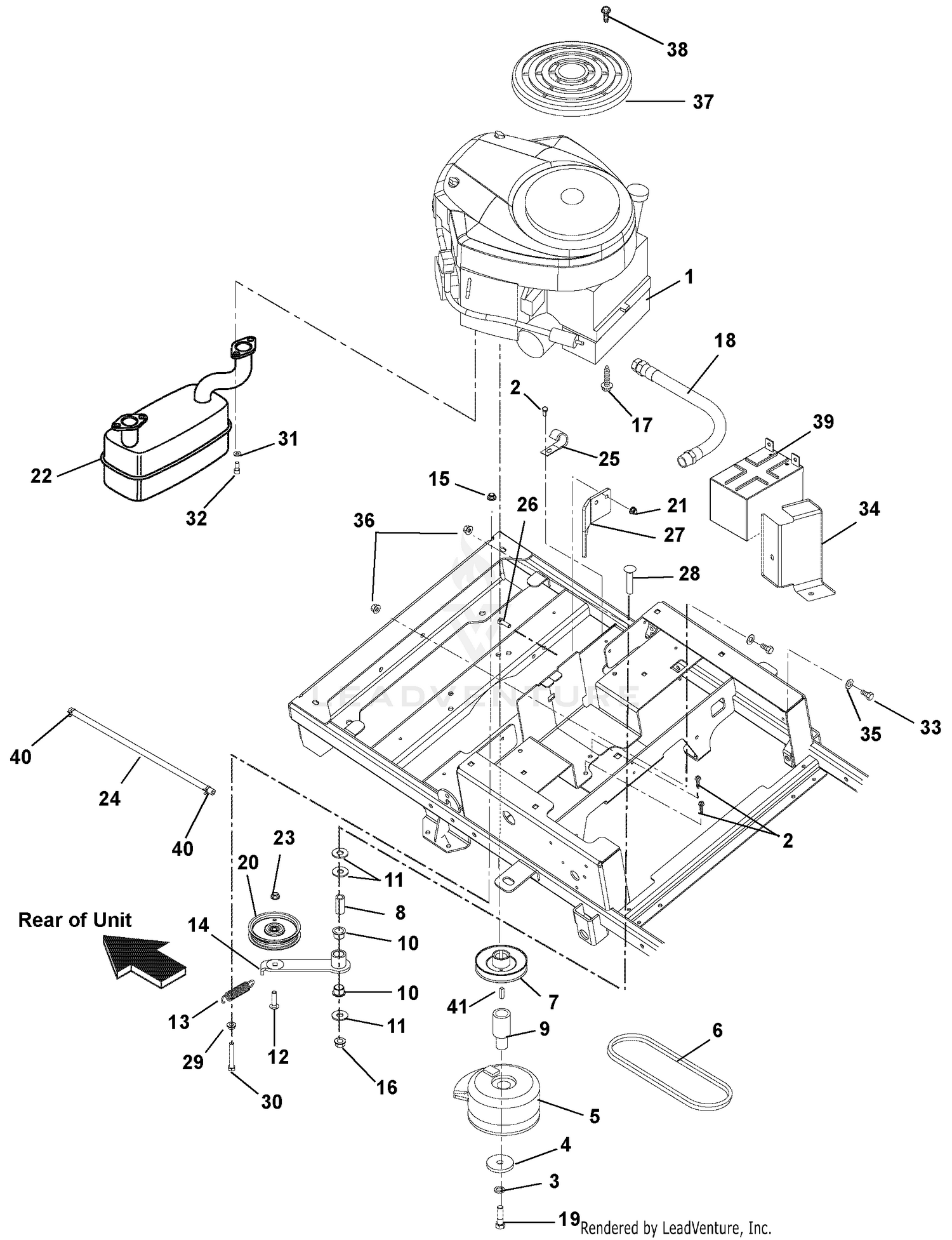

| Ref | Part Number | Description |
|---|
| 1 |
08201014 |
ENGINE, 18HP V-TWIN CE Price: Call Us |
| 2 |
07400125 |
SCR,TAP .25-20X.375 HWH TR ZCC This part replaces 07411600. Price: $0.95 |
| 3 |
06300121 |
WSHR, LK-REG .438X.109 ZCC This part replaces 06309300. Price: $2.45 |
| 4 |
06401111 |
WSHR, FLT .469X2.00X.250 ZCC This part replaces 06443600. Price: $6.95 |
| 5 |
04678300 |
CLUTCH,105FTLB MONOPOLE 6.83" Price: $203.95 |
| 6 |
07242200 |
V-BELT, HA-WRAPPED Price: $43.95 |
| 7 |
07336567 |
PULLEY, V-1" ID X 4.50" OD This part replaces 07336500. Price: $86.95 |
| 8 |
05516400 |
BSHG-SLV .500X.750X1.560 Price: $5.45 |
| 9 |
02996000 |
EXT-CRANKSHAFT LOWER Price: $71.45 |
| 10 |
05500039 |
BSHG-FLG 0.75X0.875X.625X1.125 Price: $6.95 |
| 11 |
06401012 |
WSHR,FLT .563X1.375X.109 ZCC This part replaces 06442000. Price: $2.45 |
| 12 |
06200416 |
BLT, RHSN .38-16X1.50 G5 ZCC This part replaces 06224200. Price: $3.95 |
| 13 |
08311700 |
SG-TENS .105X.812X3.88 WLD 15 Price: $7.95 |
| 14 |
02003800 |
WMT, GROUND DRIVE IDLER ARM Price: $59.95 |
| 15 |
06500726 |
NUT,NYL-FLG .38-16 GF ZCC This part replaces 06545500. Price: $1.45 |
| 16 |
06500907 |
NUT-LK-TOP-FLG .500-13 GF ZCC This part replaces 06543600. Price: $1.45 |
| 17 |
07417500 |
SCR-TAP .38-16X1.00 HWH TR ZCC This part replaces 07414100. Price: $3.45 |
| 18 |
00588700 |
HOSE, HYD .38-11-0K M6N0-F6J0 Price: $44.95 |
| 19 |
05901821 |
BLT, HEX .44-20X4.50 G8 ZCC This part replaces 05966700. Price: $6.45 |
| 20 |
07300101 |
ASM, 4" IDLER (.75 WIDE) Price: $56.45 |
| 21 |
06500809 |
NUT,NYL-FLG .31-18 GF ZCC This part replaces 06545400. Price: $1.45 |
| 22 |
02997300 |
MUFFLER - TWIN BRIGGS Price: $103.40 |
| 23 |
06500822 |
NUT-LK-TOP-FLG .38-16 ZC120 This part replaces 06542000. Price: $0.95 |
| 24 |
02974300 |
HOSE, FUEL(CARB APPROVED) Price: $5.20 |
| 25 |
06916000 |
J-CLAMP Price: $2.45 |
| 26 |
05901701 |
BLT-HEX .31-18X1.00 G5 ZCC This part replaces 05946900. Price: $1.45 |
| 27 |
03260051 |
CLUTCH STOP Price: $18.45 |
| 29 |
06500735 |
NUT- SPNLK-FLG .38-16 G5 ZCC This part replaces 06534900. Price: $1.45 |
| 30 |
05901812 |
BLT, HEX .38-16X2.50 G5 ZCC This part replaces 05958400. Price: $2.45 |
| 31 |
06300119 |
WSHR-LK-REG .312X.078 ZCC This part replaces 06308600. Price: $0.95 |
| 32 |
05901827 |
BLT, SHCS .312-18X.75 ZCC This part replaces 05933100. Price: $2.45 |
| 33 |
05901716 |
BLT- HEX .25-20X.75 G5 ZCC This part replaces 05946800. Price: $0.95 |
| 34 |
03949551 |
BRKT, BATTERY HOLD DOWN Price: $30.95 |
| 35 |
06401001 |
WSHR,FLT .281X.625X.065 ZCC This part replaces 06437300. Price: $0.45 |
| 36 |
06500921 |
NUT-KEPS .250-20 ZCC This part replaces 06509200. Price: $1.45 |
| 37 |
03275500 |
GUARD, BRIGGS ENGINE Price: $27.45 |
| 38 |
06100206 |
SCREW, 8-16X.87 PHPAN 3 LOBE Price: $3.45 |
| 39 |
04738800 |
BATTERY, 12V 12A-190CCA Price: $114.95 |
| 40 |
03278800 |
CLAMP, FUEL LINE Price: $0.95 |
