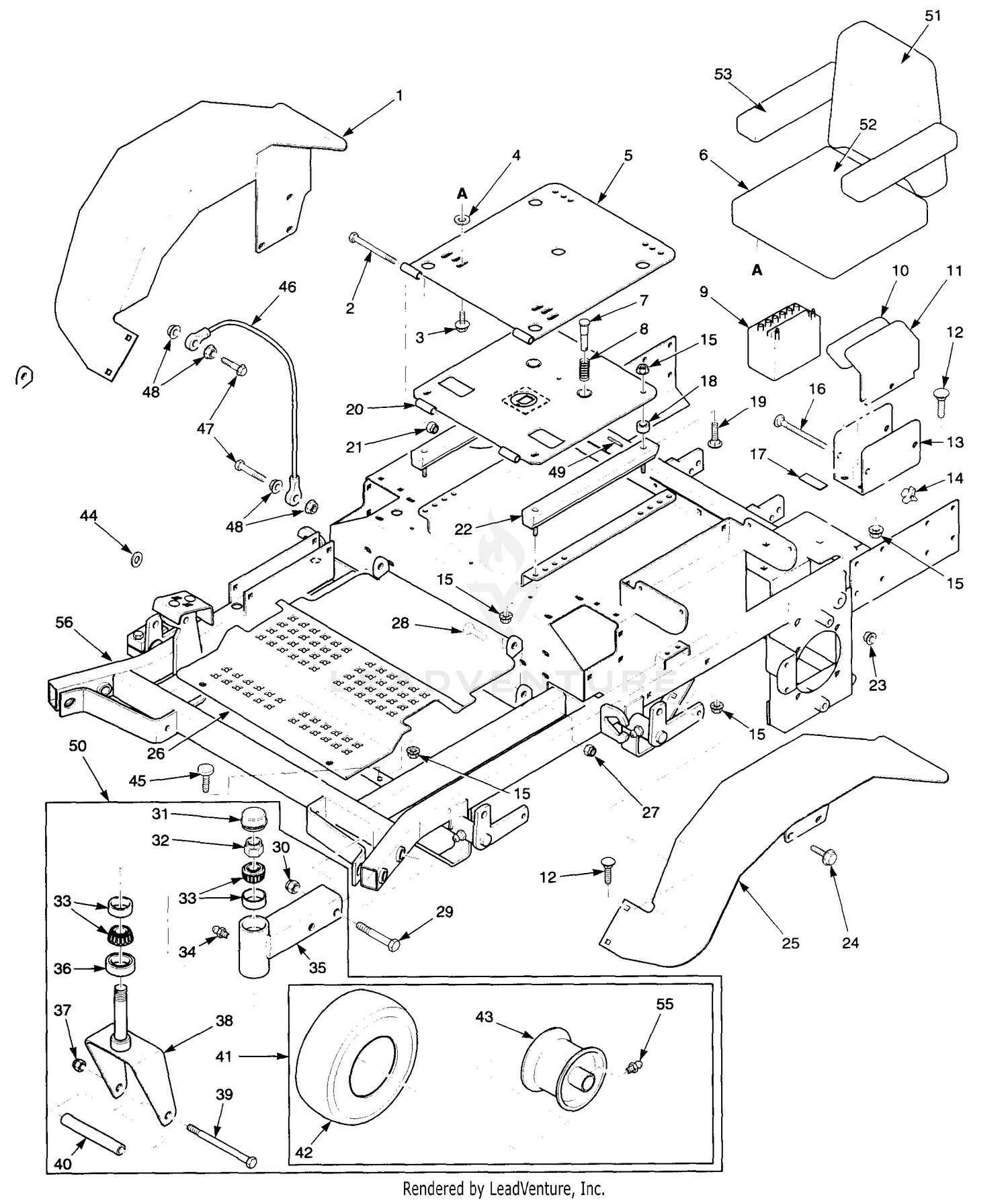

| Ref | Part Number | Description |
|---|
| 1 |
451481 |
Fender Weldment, RH This part replaces 451079. Price: Call Us |
| 2 |
04001-63 |
Bolt, Hex Head 5/16-18 x 3-1/2" Price: Call Us |
| 3 |
04017-16 |
Screw, Hex Serrated Flange 5/16-18 x 3/4" Price: Call Us |
| 4 |
04041-11 |
Flatwasher, 3/8" (.406 x 1.50 x .179) Price: Call Us |
| 5 |
45926 |
Seat Plate Weldment, Upper Price: Call Us |
| 6 |
482027 |
Seat Assembly This part replaces 481532. Price: Call Us |
| 7 |
43462 |
Pin Retainer, Spring Price: Call Us |
| 8 |
481389 |
Spring, Seat Price: Call Us |
| 9 |
48015 |
Battery Price: Call Us |
| 10 |
48903 |
Pad, Battery Cover Price: Call Us |
| 11 |
421274 |
Cover, Battery Price: Call Us |
| 12 |
04003-12 |
Bolt, Carriage 5/16-18 x 3/4" Price: Call Us |
| 13 |
423308 |
Battery Box This part replaces 421703. Price: Call Us |
| 14 |
04029-01 |
Wing Nut, 1/4-20 x 3/4" Price: Call Us |
| 15 |
04019-03 |
Nut, Hex Serrated Flange 5/16-18 Price: Call Us |
| 16 |
04003-39 |
Bolt, Carriage 1/4-20 x 6" This part replaces 04003-01. Price: Call Us |
| 17 |
48657 |
Rubber Pad Price: Call Us |
| 18 |
43336 |
Spacer Price: Call Us |
| 19 |
04003-04 |
Bolt, Carriage 5/16-18 x 1" Price: Call Us |
| 20 |
45925 |
Seat Plate Weldment, Lower Price: Call Us |
| 21 |
04021-10 |
Nut, Hex Elastic Stop 5/16-18 Price: Call Us |
| 22 |
481943 |
Seat Adjustment, Track Set Price: Call Us |
| 23 |
04019-04 |
Nut, Hex Serrated Flange 3/8-16 Price: Call Us |
| 24 |
04017-27 |
Screw, Hex Serrated Flange 3/8-16 x 1" Price: Call Us |
| 25 |
451480 |
Fender Weldment, LH This part replaces 451078. Price: Call Us |
| 26 |
423309 |
Battery Box This part replaces 422567. Price: Call Us |
| 27 |
04021-09 |
Nut, Hex Elastic Stop 3/8-16 Price: Call Us |
| 28 |
04001-19 |
Bolt, Hex Head 3/8-16 x 1-1/4" Price: Call Us |
| 29 |
04001-125 |
Bolt, Hex Head 5/8-11 x 4" Price: Call Us |
| 30 |
04021-13 |
Nut, Hex Elastic Stop 5/8-11 Price: Call Us |
| 31 |
481559 |
Cap, Grease Price: Call Us |
| 32 |
04021-20 |
Nut, Elastic Stop 1.0"-14 Price: Call Us |
| 33 |
48668 |
Bearing Set Price: Call Us |
| 34 |
48114-04 |
Grease Fitting Price: Call Us |
| 35 |
45935 |
Extension Weldment, Caster 52" Deck (LH & RH) Price: Call Us |
| 36 |
481025 |
Seal, 2.00 OD, x 1.625 Bore Price: Call Us |
| 37 |
04021-07 |
Nut, Hex Elastic Stop 1/2-13 Price: Call Us |
| 38 |
45934 |
Yoke Weldment, Caster Price: Call Us |
| 39 |
04001-134 |
Bolt, Hex Head 1/2-13 x 7-1/2" Price: Call Us |
| 40 |
43430 |
Sleeve Price: Call Us |
| 42 |
481613 |
Tire Price: Call Us |
| 44 |
04041-07 |
Washer, 3/8" Price: Call Us |
| 45 |
481284 |
Bumper, Rubber Price: Call Us |
| 46 |
48566 |
Cable, Seat Stop Price: Call Us |
| 47 |
04001-59 |
Bolt, Hex Head 1/4-20 x 1-1/4" Price: Call Us |
| 48 |
04019-02 |
Nut, Hex Serrated Flange 1/4-20 Price: Call Us |
| 49 |
04060-01 |
Roll Pin, Spring 5/32 x 3/4" Price: Call Us |
| 51 |
484716 |
BACK CUSHION This part replaces 481532-01. Price: Call Us |
| 52 |
482111 |
Cushion, Lower Seat This part replaces 481532-02. Price: Call Us |
| 53 |
482108 |
Arm Pad, RH This part replaces 481532-03. Price: Call Us |
| 54 |
482109 |
Bracket, Armrest LH This part replaces 48831-01. Price: Call Us |
| 55 |
48114-06 |
Grease Fitting, Long Shank Price: Call Us |
| 45936 |
Extension |
Weldment, Caster 52" B & 61" (LH) Price: Call Us 45936 |
| 45937 |
Extension |
Weldment, Caster 52" B (RH) & 61" B (LH & RH) Price: Call Us 45937 |
| 45989 |
Extension |
Weldment, Caster 61" (RH) Price: Call Us 45989 |
| 482107 |
Arm |
Pad, LH This part replaces 481532-04. Price: Call Us 482107 |
| 482110 |
Bracket, |
Armrest RH This part replaces 48831-02. Price: Call Us 482110 |
