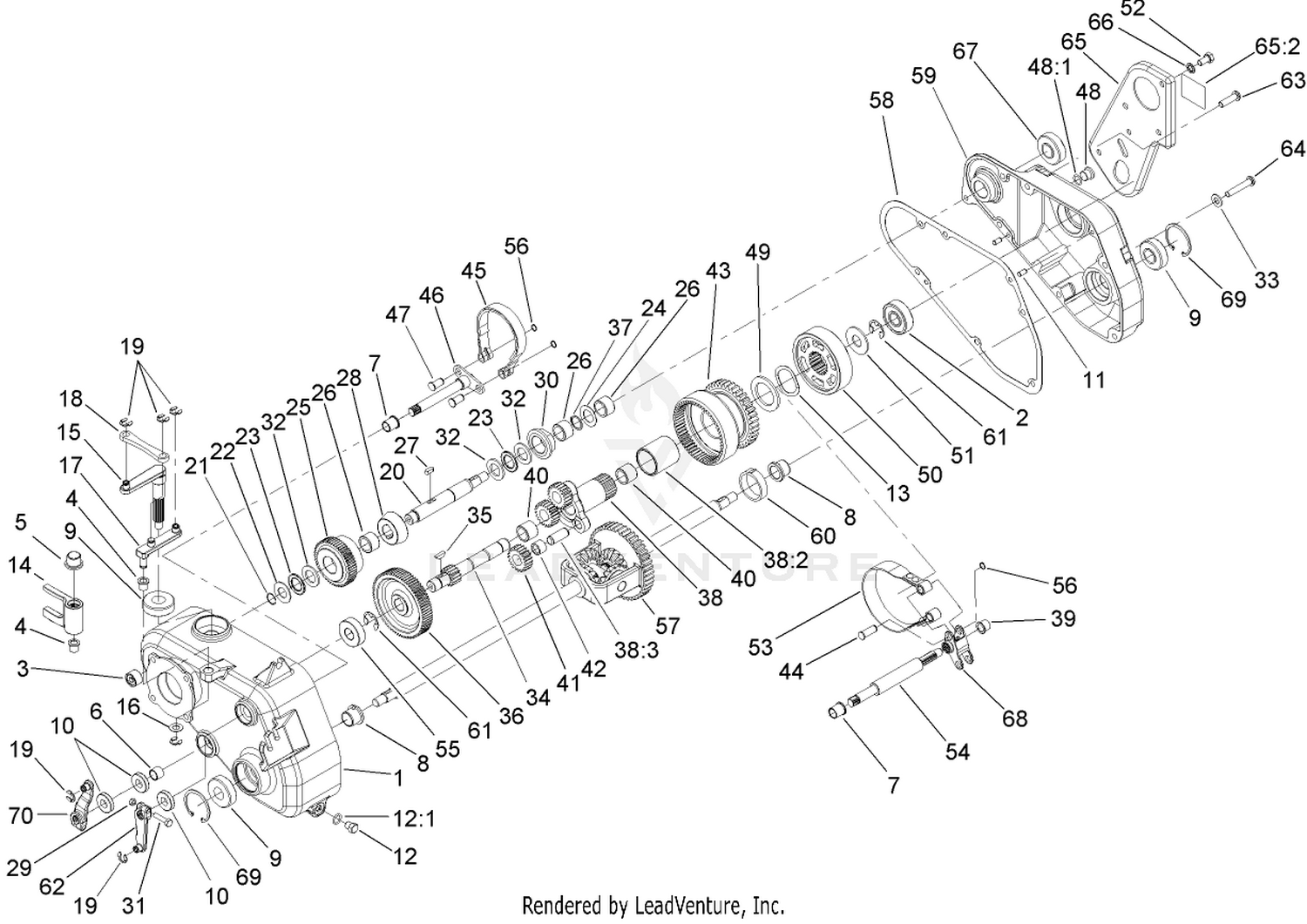

| Ref | Part Number | Description |
|---|
| 1 |
106-4682 |
HOUSING-GEARBOX Price: $925.07 |
| 2 |
110-7339 |
BEARING-BALL This part replaces 107-3201. Price: $27.48 |
| 3 |
98-4194 |
BEARING-NEEDLE, CAGED Price: $31.76 |
| 4 |
256-316 |
BUSHING Price: $1.06 |
| 5 |
256-287 |
BUSHING Price: $1.76 |
| 6 |
256-1 |
BUSHING Price: $21.99 |
| 7 |
256-219 |
BUSHING Price: $7.59 |
| 8 |
99-2062 |
BUSHING-KEYED, FLANGED Price: $2.50 |
| 9 |
99-3842 |
SEAL-OIL,NON-VENTED GRBX This part replaces 107-8132. Price: $21.27 |
| 10 |
99-2056 |
SEAL-OIL Price: $14.75 |
| 11 |
95-0715 |
PIN-DOWEL Price: $0.81 |
| 12 |
353-948 |
FITTING-PLUG Price: $3.31 |
| 13 |
105-9944 |
WASHER-WAVE, SPRING Price: $4.55 |
| 14 |
99-2014 |
FORK-CLUTCH Price: $54.29 |
| 15 |
99-2015 |
SHAFT-FORK Price: $116.82 |
| 16 |
37-8080 |
WASHER-THRUST Price: $5.29 |
| 17 |
110-2450 |
LEVER-BELLCRANK This part replaces 99-3779. Price: $122.28 |
| 18 |
99-3780 |
LINK Price: $21.39 |
| 19 |
32151-47 |
RING-RETAINING Price: $2.49 |
| 20 |
115-1117 |
SHAFT-CLUTCH, REEL This part replaces 99-2009. Price: $208.03 |
| 21 |
99-3805 |
RING-RETAINING Price: $1.36 |
| 22 |
99-3806 |
WASHER-THRUST Price: $14.66 |
| 23 |
99-3836 |
BEARING-THRUST Price: $14.95 |
| 24 |
99-3837 |
WASHER-THRUST Price: $1.42 |
| 25 |
106-8441 |
GEAR-CLUTCH, REEL Price: $354.31 |
| 26 |
1523 |
BEARING-NEEDLE Price: $35.99 |
| 27 |
99-2059 |
KEY Price: $11.22 |
| 28 |
107-3232 |
CONE ASM Price: Call Us |
| 29 |
33023-00 |
NUT-LOCK Price: $0.25 |
| 30 |
106-8440 |
HUB-PLUNGER Price: $59.30 |
| 31 |
33113-025 |
SCREW-HH Price: $1.97 |
| 32 |
99-3807 |
WASHER-THRUST Price: $10.40 |
| 33 |
33094-00 |
WASHER-PLAIN Price: $0.25 |
| 34 |
107-8128 |
SHAFT-SUN This part replaces 99-2003. Price: $186.43 |
| 35 |
3257-30 |
KEY-WOODRUFF Price: $5.35 |
| 36 |
99-2004 |
GEAR-INPUT Price: $208.95 |
| 37 |
32120-72 |
RING-SNAP Price: $2.09 |
| 38 |
110-2435 |
CARRIER ASM,3 BEARING W/SHAFT This part replaces 107-8166. Price: $430.83 |
| 39 |
104-9776 |
BUSHING-FLANGED Price: $25.45 |
| 40 |
104-0535 |
BEARING-NEEDLE Price: $25.25 |
| 41 |
106-4694 |
GEAR-SPUR Price: $9.37 |
| 42 |
117-3500 |
BEARING-CAGED NEEDLE ROLLER This part replaces 48-2060. Price: $4.69 |
| 43 |
110-2451 |
GEAR-RING, PLANETARY This part replaces 99-2006. Price: $381.60 |
| 44 |
106-8444 |
PIN-CLEVIS, LONG Price: $33.45 |
| 45 |
99-2049 |
BAND-BRAKE Price: $31.52 |
| 46 |
99-2020 |
SHAFT-BRAKE Price: $201.94 |
| 47 |
106-8445 |
PIN-CLEVIS, SHORT Price: $6.57 |
| 48 |
353-989 |
PLUG-HEX, HOLLOW Price: $21.59 |
| 49 |
99-2054 |
WASHER-THRUST Price: $20.70 |
| 50 |
110-2452 |
DRUM-CLUTCH, TRACTION This part replaces 107-9046. Price: $184.70 |
| 51 |
99-2055 |
WASHER-THRUST Price: $10.59 |
| 52 |
33114-016 |
SCREW-HH Price: $0.27 |
| 53 |
107-9042 |
CLUTCH BAND ASM Price: Call Us |
| 54 |
105-9937 |
SHAFT-CLUTCH, TRACTION Price: $135.81 |
| 55 |
251-6 |
BEARING-BALL Price: $11.39 |
| 56 |
32120-46 |
RING-RETAINING Price: $1.99 |
| 57 |
99-2038 |
DIFFERENTIAL ASM Price: $522.95 |
| 58 |
99-2051 |
GASKET Price: $26.09 |
| 59 |
117-1491 |
COVER REPLACEMENT KIT This part replaces 106-4683. Price: $527.98 |
| 60 |
99-2061 |
BUSHING-KEYED Price: $2.99 |
| 61 |
32151-48 |
E-RING Price: $1.41 |
| 62 |
99-3761 |
LEVER-GEARBOX Price: $48.39 |
| 63 |
99-6208 |
SCREW-HSH Price: $1.02 |
| 64 |
99-6207 |
SCREW-HSBH Price: $1.63 |
| 65 |
104-2634 |
DRIVE SHAFT PLATE ASM Price: $172.38 |
| 66 |
3254-2 |
WASHER-LOCK, INTERNAL Price: $0.27 |
| 67 |
120-5402 |
SEAL-OIL This part replaces 105-2429. Price: $73.82 |
| 68 |
105-9938 |
HUB-CLUTCH, TRACTION Price: $42.51 |
| 69 |
32120-62 |
RING-RETAINING Price: $4.29 |
