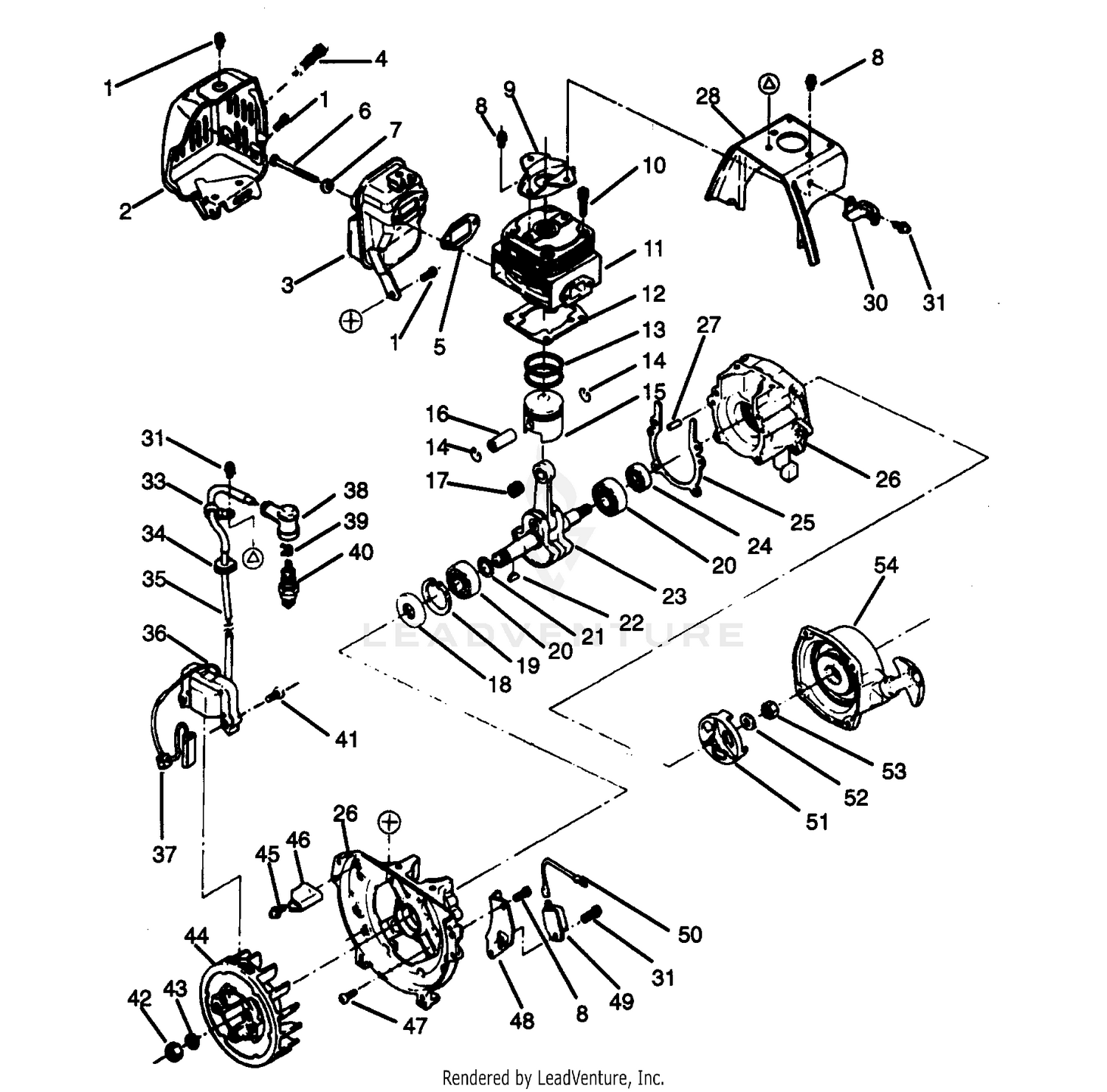

INTERIOR POWER UNIT
Parts (94)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 3220-5 | NUT-JAM Price: $0.65 |
| 1 | 530094014 | Screw Price: $0.99 |
| 2 | 29-3720 | DISCONTINUED Price: Call Us |
| 2 | 530094124 | Muffler Cover Price: $32.99 |
| 3 | 42-2140 | HOC BAR This part replaces 29-3770. Price: $89.92 |
| 3 | 530094011 | Muffler Ass'y. Price: $59.99 |
| 4 | 530094428 | Spark Arrestor Price: $3.33 |
| 4 | 99-5686 | RH SOCKET ASM This part replaces 21-0140. Price: $99.81 |
| 5 | 32136-4 | NUT-HEX,SLOTTED Price: $1.56 |
| 5 | 530094012 | Gasket Price: $7.99 |
| 6 | 3290-255 | PIN-COTTER, HAIR Price: $7.89 |
| 6 | 530094013 | Bolt Price: $1.99 |
| 7 | 29-3680-01 | REEL SIDE PLT WA This part replaces 29-3680. Price: $329.91 |
| 7 | 530015181 | Washer Price: $0.99 |
| 8 | 43-8640 | HOC PIN WA This part replaces 29-3780. Price: $37.38 |
| 8 | 530094020 | Screw Price: $3.33 |
| 9 | 3253-24 | WASHER-LOCK/SP Price: $0.37 |
| 9 | 530094019 | Bracket Price: $3.99 |
| 10 | 322-6 | SCREW-HH Price: $0.45 |
| 10 | 530094005 | Bolt Price: $1.99 |
| 11 | 302-5 | FITTING-GREASE Price: $0.59 |
| 11 | 530094003 | Cylinder Price: $3.33 |
| 12 | 29-3950 | DISCONTINUED Price: Call Us |
| 12 | 530094004 | Gasket Price: $4.99 |
| 13 | 3296-5 | NUT-HEX Price: $3.09 |
| 13 | 530094023 | Piston Ring Set Price: $22.99 |
| 14 | 29-3960 | DISCONTINUED Price: Call Us |
| 14 | 530094025 | Snap Ring Price: $0.99 |
| 15 | 29-3980 | DISCONTINUED Price: Call Us |
| 15 | 530094022 | Piston Price: $44.99 |
| 16 | 29-3990 | DISCONTINUED Price: Call Us |
| 16 | 530094024 | Piston Pin Price: $5.99 |
| 17 | 323-7 | SCREW-HH Price: $0.65 |
| 17 | 530094027 | Bearing Price: $11.99 |
| 18 | 29-3730 | DISCONTINUED Price: Call Us |
| 18 | 530094045 | Seal Price: $5.99 |
| 19 | 39-0670 | BED BAR WA Price: $753.30 |
| 19 | 530094049 | Snap Ring Price: $1.99 |
| 20 | 3253-21 | WASHER-LOCK Price: $0.28 |
| 20 | 530094044 | Bearing Price: $11.99 |
| 21 | 29-3420 | DISCONTINUED Price: Call Us |
| 21 | 530094028 | Shim(0.1mm) Price: $1.99 |
| 21 | 530094029 | Shim(0.2mm) Price: $1.99 |
| 21 | 530094030 | Shim((0.4mm) Price: $1.99 |
| 21 | 530094031 | Shim(0.6mm) Price: $3.33 |
| 22 | 29-3440 | DISCONTINUED Price: Call Us |
| 22 | 530094083 | Crankshaft Key Price: $3.33 |
| 23 | 254-79 | BEARING-ROLLER, CUP Price: $6.39 |
| 23 | 530094026 | Crankshaft Ass'y. (Inc. #17) Price: $3.33 |
| 24 | 254-78 | BEARING-CONE Price: $12.22 |
| 24 | 530094046 | Seal Price: $3.33 |
| 25 | 3296-15 | NUT-LOCK, NI Price: $1.75 |
| 25 | 530094043 | Gasket Price: $1.99 |
| 26 | 253-117 | SEAL-OIL Price: $5.72 |
| 26 | 530094041 | Crankcase/Fan Hsg. Ass'y. Price: $257.57 |
| 27 | 5-4038 | WEAR SLEEVE Price: $16.36 |
| 27 | 530094042 | Pin Price: $1.99 |
| 28 | 29-3920 | DISCONTINUED Price: Call Us |
| 28 | 530094018 | Cylinder Cover Price: $17.99 |
| 29 | 3219-3 | NUT-HEX Price: $0.34 |
| 30 | 3220-3 | NUT-HJ Price: $0.28 |
| 30 | 530094075 | Clamp Price: $2.99 |
| 31 | 3290-414 | WASHER-BELLEVILLE Price: $1.97 |
| 31 | 530094081 | Screw Price: $3.33 |
| 32 | 29-3910 | DISCONTINUED Price: Call Us |
| 33 | 251-273 | DISCONTINUED Price: Call Us |
| 33 | 530094076 | Clamp Price: $1.99 |
| 34 | 29-3930 | DISCONTINUED Price: Call Us |
| 34 | 530094078 | Grommet Price: $1.99 |
| 35 | 39-0730 | BEDKNIFE, RM Price: $91.01 |
| 35 | 530094079 | High Tension Wire Price: $1.99 |
| 36 | 119-4151 | SCREW-BEDKNIFE This part replaces 3-6462. Price: $0.41 |
| 36 | 530094072 | Coil Price: $89.44 |
| 37 | 33-5040 | DISCONTINUED This part replaces 36-4080. Price: Call Us |
| 37 | 530094077 | Grommet Price: $1.99 |
| 38 | 32120-93 | RING-RETAINING Price: $2.49 |
| 38 | 530094085 | Cap Price: $3.33 |
| 39 | 37-0230 | DISCONTINUED Price: Call Us |
| 39 | 530094086 | Spring Price: $3.33 |
| 40 | 36-4680 | DISCONTINUED Price: Call Us |
| 40 | 530094084 | Spark Plug Price: $3.33 |
| 41 | 530094080 | Bolt Price: $0.99 |
| 42 | 530094082 | Nut Price: $0.99 |
| 43 | 530094074 | Washer Price: $1.99 |
| 44 | 530094071 | Flywheel Price: $229.99 |
| 45 | 530094021 | Screw Price: $3.33 |
| 46 | 530094017 | Plate Price: $3.33 |
| 47 | 530094048 | Screw Price: $1.99 |
| 48 | 530094016 | Igniter Cover Price: $3.99 |
| 49 | 530094073 | Igniter Price: $3.33 |
| 50 | 530094184 | Lead Wire Switch Price: $3.33 |
| 51 | 530094033 | Pulley Price: $5.99 |
| 52 | 530094036 | Washer Price: $3.33 |
| 53 | 530094035 | Nut Price: $0.99 |
