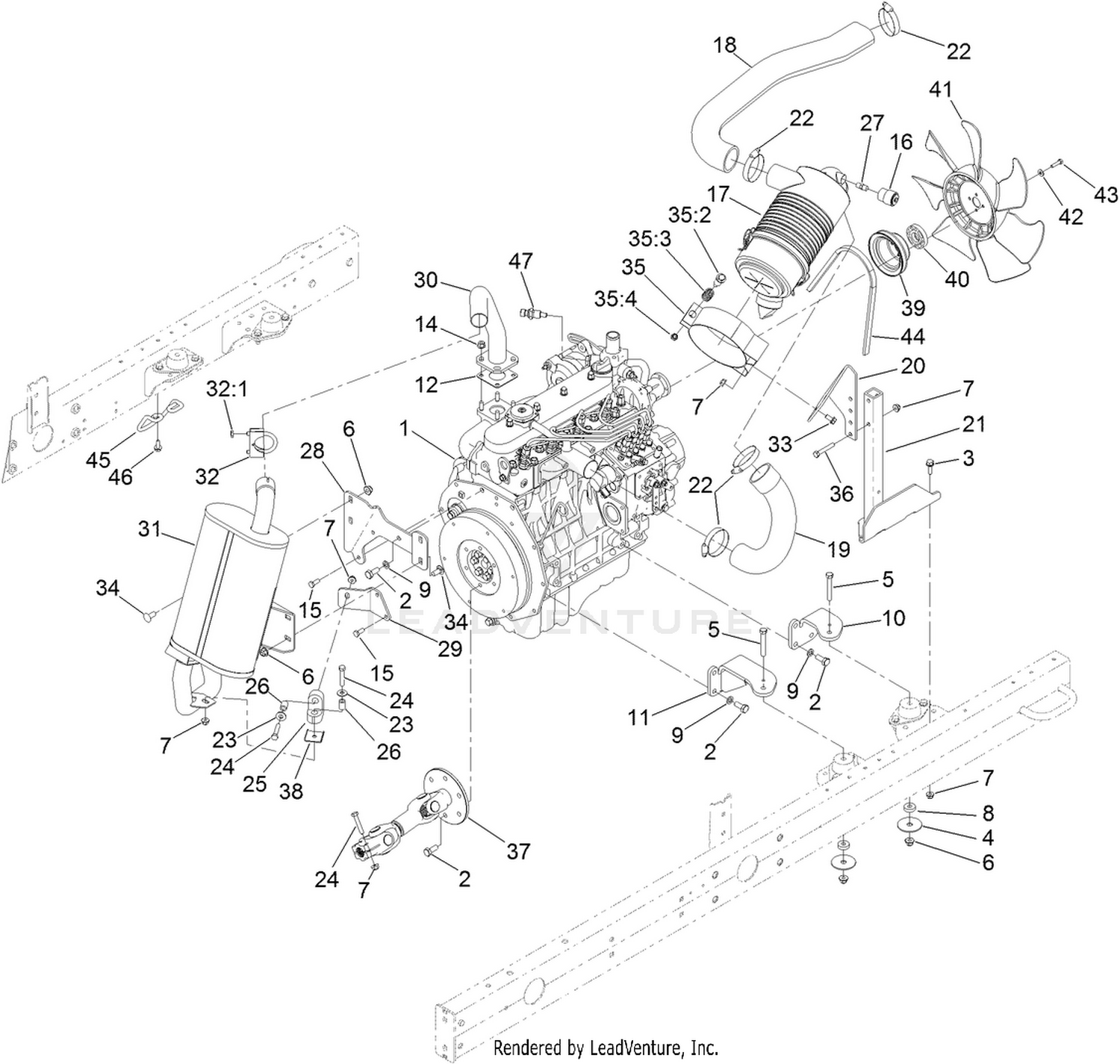

| Ref | Part Number | Description |
|---|
| 1 |
132-5206 |
ENGINE-KUBOTA, V1505 This part replaces 125-2165. Price: $6,465.81 |
| 2 |
43-0090 |
SCREW-HH Price: $8.05 |
| 3 |
3234-29 |
SCREW-HHF Price: $1.84 |
| 4 |
87-5100 |
WASHER-SNUBBING Price: $3.46 |
| 5 |
323-12 |
SCREW-HH Price: $1.14 |
| 6 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 7 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 8 |
62-6660 |
SPACER Price: $0.79 |
| 9 |
48-9590 |
WASHER-LOCK Price: $0.25 |
| 10 |
115-8066-0P |
MOUNT-ENGINE This part replaces 115-8066-03. Price: $42.18 |
| 11 |
120-3812-03 |
MOUNT-ENGINE Price: $55.51 |
| 12 |
99-8343 |
GASKET-MUFFLER Price: $14.99 |
| 14 |
104-2612 |
NUT-HF Price: $0.70 |
| 15 |
33104-020 |
SCREW-HHF Price: $2.07 |
| 16 |
93-9164 |
INDICATOR-MINI Price: $55.24 |
| 17 |
106-5277 |
AIR CLEANER ASM Price: $134.07 |
| 18 |
117-5162 |
HOSE-FORMED Price: $101.57 |
| 19 |
117-5164 |
HOSE-FORMED Price: $61.38 |
| 20 |
127-2695-0P |
BRACKET-AIR CLEANER This part replaces 127-2695-03. Price: $29.14 |
| 21 |
121-5610-0P |
STAND W.A. AIR CLEANER (WELDED) This part replaces 121-5610-03. Price: $170.02 |
| 22 |
2412-130 |
CLAMP-HOSE Price: $2.57 |
| 23 |
3256-3 |
WASHER-FLAT Price: $0.49 |
| 24 |
322-9 |
SCREW-HH Price: $3.09 |
| 25 |
95-5622 |
HANGER-RUBBER Price: $34.18 |
| 26 |
93-5023 |
SPACER Price: $8.77 |
| 27 |
94-1416 |
ADAPTER-INDICATOR Price: $11.87 |
| 28 |
108-1785-03 |
BRACKET-SUPPORT, MUFFLER Price: $85.53 |
| 29 |
110-8974-03 |
BRACKET-PIPE, TAIL Price: $19.58 |
| 30 |
108-1782 |
HEADER Price: $95.98 |
| 31 |
114-8897 |
MUFFLER Price: $711.25 |
| 32 |
2112-9 |
CLAMP Price: $7.78 |
| 33 |
3234-14 |
SCREW-HHF Price: $0.61 |
| 34 |
3231-27 |
SCREW-CARR Price: $0.54 |
| 35 |
100-4825 |
BAND-MOUNTING, AIR CLEANER Price: $80.59 |
| 36 |
322-10 |
SCREW-HH Price: $0.70 |
| 37 |
108-1641 |
DRIVESHAFT ASM Price: $717.02 |
| 38 |
110-8976 |
PLATE-SUPPORT, ISOLATOR Price: $4.70 |
| 39 |
110-0972 |
PULLEY Price: $55.10 |
| 40 |
108-2872 |
COLLAR-FAN This part replaces 104-4247. Price: $21.29 |
| 41 |
110-0966 |
FAN-COOLING Price: $176.79 |
| 42 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 43 |
33113-025 |
SCREW-HH Price: $1.97 |
| 44 |
98-9676 |
V-BELT Price: $31.01 |
| 45 |
127-2612 |
GUARD-PIPE, TAIL Price: $11.72 |
| 46 |
32104-32 |
SCREW-HWH Price: $1.99 |
