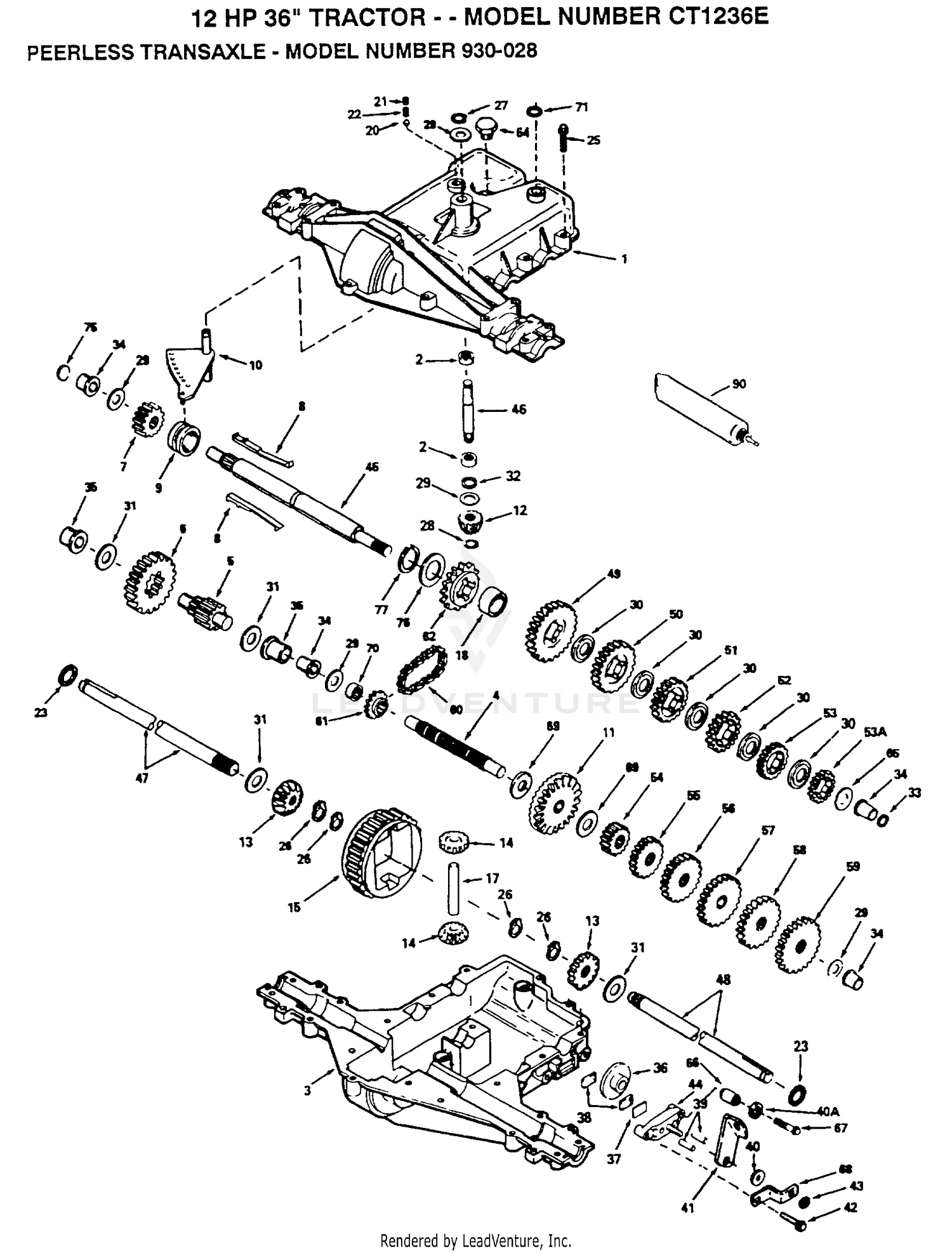

| Ref | Part Number | Description |
|---|
| 1 |
772108 |
COVER, TRANSAXLE Price: Call Us |
| 1 |
98-7802 |
GASKET Price: $19.63 |
| 2 |
780086 |
BEARING, NEEDLE Price: Call Us |
| 2 |
98-7815 |
MANIFOLD-EXHAUST Price: $150.02 |
| 3 |
770102 |
CASE, TRANSAXLE Price: Call Us |
| 3 |
98-7534 |
NUT This part replaces 100-1559. Price: $0.48 |
| 4 |
100-1558 |
STUD Price: $2.26 |
| 4 |
776260 |
SHAFT, COUNTER Price: Call Us |
| 5 |
776219 |
SHAFT, PINION ASSEMBLY, OUTPUT Price: Call Us |
| 5 |
98-7803 |
GASKET Price: $11.76 |
| 6 |
778139 |
GEAR, OUTPUT Price: Call Us |
| 7 |
778136 |
GEAR, SPUR, 15 TEETH Price: Call Us |
| 8 |
792136 |
KEY Price: Call Us |
| 9 |
784352 |
COLLAR, SHIFTER Price: Call Us |
| 10 |
784355 |
ROD & FORK ASSY, SHIFT Price: Call Us |
| 11 |
778229 |
GEAR, BEVEL, 42 TEETH Price: Call Us |
| 12 |
778113A |
BEVEL PINION, INPUT Price: Call Us |
| 13 |
778221 |
GEAR, BEVEL Price: Call Us |
| 14 |
778068 |
GEAR, BEVEL, PINION Price: Call Us |
| 15 |
778260 |
GEAR, RING Price: Call Us |
| 17 |
786139 |
PIN, DRIVE Price: Call Us |
| 18 |
786102 |
SPACER, NEUTRAL Price: Call Us |
| 20 |
792077 |
BALL STEEL, 5/16" DIA. Price: Call Us |
| 21 |
792078 |
SCREW, 3/8-16 X 3/8" Price: Call Us |
| 22 |
792079 |
SPRING Price: Call Us |
| 23 |
788061 |
RING, SEAL Price: Call Us |
| 25 |
792073 |
SCREW, 1/4-20 X 1-1/4 Price: Call Us |
| 26 |
792125 |
RING RETAINER Price: Call Us |
| 27 |
792035 |
RING, RETAINER Price: Call Us |
| 28 |
788040 |
RETAINING RING Price: Call Us |
| 29 |
780072 |
WASHER THRUST Price: Call Us |
| 30 |
780108 |
WASHER THRUST Price: Call Us |
| 31 |
780001 |
WASHER Price: Call Us |
| 33 |
788051 |
SEAL, SQUARE CUT Price: Call Us |
| 34 |
780105A |
BUSHING, FLANGED Price: Call Us |
| 35 |
780118A |
BUSHING, FLANGED Price: Call Us |
| 36 |
790003 |
DISK, BRAKE Price: Call Us |
| 37 |
790007 |
PLATE BRAKE PAD Price: Call Us |
| 38 |
790006 |
PAD BRAKE Price: Call Us |
| 39 |
786026 |
PIN DOWEL Price: Call Us |
| 40 |
792076 |
WASHER, FLAT Price: Call Us |
| 40A |
792128 |
WASHER FLAT Price: Call Us |
| 41 |
790047 |
LEVER BRAKE Price: Call Us |
| 42 |
792073 |
SCREW, 1/4-20 X 1-1/4 Price: Call Us |
| 43 |
792075 |
LOCKNUT 5/16-24 Price: Call Us |
| 44 |
790025 |
HOLDER BRAKE PAD Price: Call Us |
| 45 |
776315A |
SHAFT, BRAKE, 4 KEYED Price: Call Us |
| 46 |
776135 |
SHAFT, INPUT Price: Call Us |
| 47 |
774883 |
AXLE Price: Call Us |
| 48 |
774884 |
AXLE Price: Call Us |
| 49 |
778191 |
GEAR, SPUR, 37 TEETH Price: Call Us |
| 50 |
778125 |
GEAR, SPUR, 35 TEETH Price: Call Us |
| 51 |
778124A |
GEAR, SPUR, 30 TEETH Price: Call Us |
| 52 |
778123A |
GEAR, SPUR, 25 TEETH Price: Call Us |
| 53 |
778122A |
GEAR, SPUR, 22 TEETH Price: Call Us |
| 53A |
778209 |
GEAR, SPUR, 19 TEETH Price: Call Us |
| 54 |
778230 |
GEAR, SPUR, 12 TEETH Price: Call Us |
| 55 |
778151 |
GEAR, SPUR, 15 TEETH Price: Call Us |
| 56 |
778126A |
GEAR, SPUR, 20 TEETH Price: Call Us |
| 57 |
778127A |
GEAR, SPUR, 25 TEETH Price: Call Us |
| 58 |
778128A |
GEAR, SPUR, 28 TEETH Price: Call Us |
| 59 |
778163 |
GEAR, SPUR, 31 TEETH Price: Call Us |
| 60 |
786081 |
CHAIN, ROLLER Price: Call Us |
| 61 |
786082 |
SPROCKET 9T Price: Call Us |
| 62 |
786123 |
SPROCKET 18T (REV) Price: Call Us |
| 64 |
792074 |
PLUG, THRDED, 9/16-18 Price: Call Us |
| 65 |
780109 |
WASHER, THRUST Price: Call Us |
| 66 |
786067 |
SPACER Price: Call Us |
| 67 |
792085 |
SCREW FLNG HEX 1/4-20 X 2-1/4 Price: Call Us |
| 68 |
786086 |
BRKT BRAKE LEVER Price: Call Us |
| 69 |
780051 |
WASHER THRUST Price: Call Us |
| 70 |
786118 |
SPACER Price: Call Us |
| 71 |
788069 |
SEAL SQUARE CUT Price: Call Us |
| 75 |
786116 |
DISK Price: Call Us |
| 76 |
780090 |
WASHER, THRUST Price: Call Us |
| 77 |
788075 |
RING, RETAINING Price: Call Us |
